Revised August 2024
PAEXWIR Product Manual
Wireless Audio Extender
Safety Instructions
For optimum performance and safety, please read these instructions carefully before use and keep this manual for future
reference. Please have the part number, serial number, and invoice available when requesting support.
• To prevent electric shock, please ensure that all apparatus is properly grounded.
• Place the device in a well-ventilated area and do not block any ventilation openings.
• Do not expose or place this device near water. Any liquid that goes into the device may cause a failure, fire, or electric shock.
• Do not place the device on an uneven or unstable surface. The device may fall resulting in a malfunction.
• Never insert anything metallic into the open parts of this device - this may cause an electric shock.
• If a third-party power supply is used, please ensure that the power supply specifications meet the device requirements.
Introduction

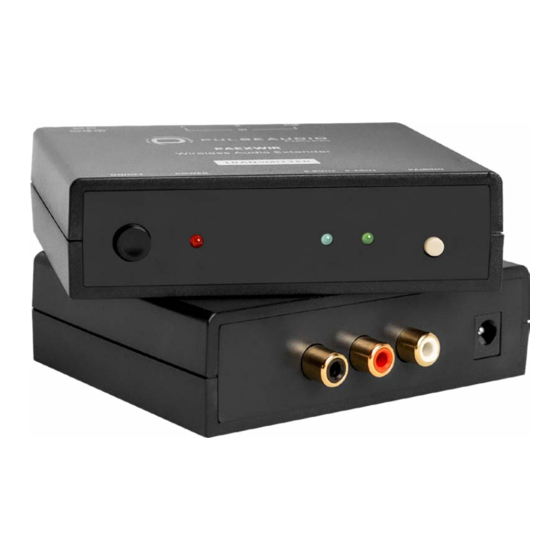

The PulseAudio PAEXWIR wireless audio extender allows stereo analog signals and subwoofer audio to be extended wirelessly
up to 164ft (50m) with line of sight or 50ft (15m) through walls, ceilings, and floors (WiFi rules apply). This device utilizes 5.2GHz or
5.8GHz signals to help reduce interference resulting in a consistent and stable connection without comprising audio quality. The
PAEXWIR is a great solution where cabling cannot be run to remote speakers or subwoofers.
Product features:
• Wireless transmission of a 2.1 audio system (2Ch with 1 subwoofer)
• Lossless audio up to 164ft (50m) with line of sight or 50ft (15m) through walls, ceilings, and floors (WiFi rules apply)
• 24-bit, 48KHz uncompressed high quality stereo audio
• LPF (low pass filter) mono subwoofer input/output
• Selectable wireless frequency from either 5.2GHz or 5.8GHz to reduce interference for a consistent and stable connection
PAEXWIR Product Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PULSEAUDIO PAEXWIR and is the answer not in the manual?

Questions and answers

Related Manuals for Vanco PULSEAUDIO PAEXWIR

Summary of Contents for Vanco PULSEAUDIO PAEXWIR

  • Page 1 Introduction The PulseAudio PAEXWIR wireless audio extender allows stereo analog signals and subwoofer audio to be extended wirelessly up to 164ft (50m) with line of sight or 50ft (15m) through walls, ceilings, and floors (WiFi rules apply). This device utilizes 5.2GHz or 5.8GHz signals to help reduce interference resulting in a consistent and stable connection without comprising audio quality.

  • Page 2: Specifications

    Package contents: (1) Wireless audio extender set - TX and RX (2) USB-A male to right angle power cables (2) USB-A power adapters (2) Adhesive mounting pads (1) Quick start guide Specifications Product specifications may change without prior notice due to upgrade or update of product functions and capabilities. Please visit www.vanco1.com for the most up to date version of this manual.
  • Page 3 Panel Descriptions Please reference the panel descriptions below for port information and descriptions. A detailed connection diagram illustrating the PAEXWIR in use is shown on the following page. Transmitter Unit ON/OFF Turns unit on and off POWER Emits red when power is connected 5.8GHz Displayed when unit is using 5.8GHz frequency for pairing 5.2GHz...

  • Page 4: Connection Diagram

    Connection Diagram Please reference the diagrams below for how to connect and operate the PAEXWIR wireless audio extender. Connect and Operate 1. Connect the transmitter to an analog audio source and/or subwoofer output. 2. Connect the receiver to an analog audio device such as an amplifier, active speaker, subwoofer, etc. 3.

  • Page 5: Troubleshooting

    Troubleshooting Problem Solution Ensure all the cables are connected correctly. Ensure the transmitter is connected to the audio output from your device, such as AV receiver, amplifier, audio preamp,etc. Ensure the receiver is connected to your amplifier, home theater system, active speakers, active subwoofer speakers, etc.

  • Page 6: Limited Warranty

    2 years from the date of purchase. Should this product, in Vanco’ s opinion, prove defective within this warranty period, Vanco, at its option, will repair or replace this product without charge.
