Summary of Contents for Vanco 280547

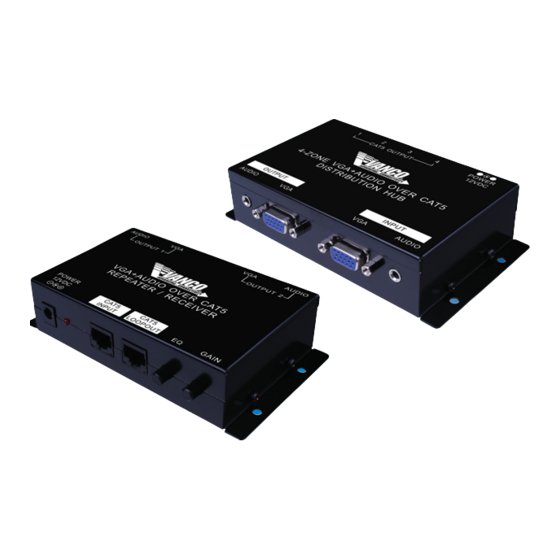

- Page 1 HOME THEATER VGA over Cat5e/ Cat6 Extenders with Audio Vanco Part Number: 280547 (Distribution System) 280548 (Additional Receiver) Technical Support www.vanco1.com • info@vanco1.com • 800-626-6445...
- Page 2 4 receivers over single Cat5e or Cat6 cables at a transmission range of up to 1000 ft. The 280547 includes a distribution hub and one receiver, additional VGA + Audio over Cat5e/Cat6 receivers can be purchased separately (Vanco part # 280548).
- Page 3 • Includes distribution hub and one receiver • Supports up to 200 meters (660 ft) with • Additional VGA + Audio over Cat5e Receivers resolution 800x600 can be purchased separately - Vanco Part Number 280548 • Supports up to 300 meters (1000 ft) with resolution 640x480 • Output allows for one display with audio at...
-
Page 4: Package Contents
5. Connect a single Category 5e or 6 cable to both distribution hub and receiver baluns. 6. For power, plug in the source first, followed by the Receiver(s) and then Distribution hub (two 12V DC power supplies included for 280547, one 12V DC power supply included for 280548), followed by the output connected. - Page 5 CONNECTION DIAGRAM 800-626-6445...
-
Page 6: Technical Support
TECHNICAL SUPPORT In case of problems, please contact Vanco Technical Support by e-mail at info@Vanco1.com or call 1-800- 626-6445 between the hours of 8am and 5pm central US time zone on Monday through Friday. When calling, please have the Model Number, Serial Number (affixed to the bottom of the unit) and Invoice available for reference during the call. -
Page 7: Limited Warranty
Vanco, at its option, will repair or replace this product without charge. Any defective parts replaced become the property of Vanco. This warranty does not apply to those products which have been damaged due to accident, unauthorized alterations, improper repair, modifications, inadequate maintenance and care, or use in any manner for which the product was not originally intended. - Page 8 Vanco® International 506 Kingsland Drive Batavia, Illinois 60510 call: 800.626.6445 fax: 630.879.9189 visit: www.vanco1.com...
