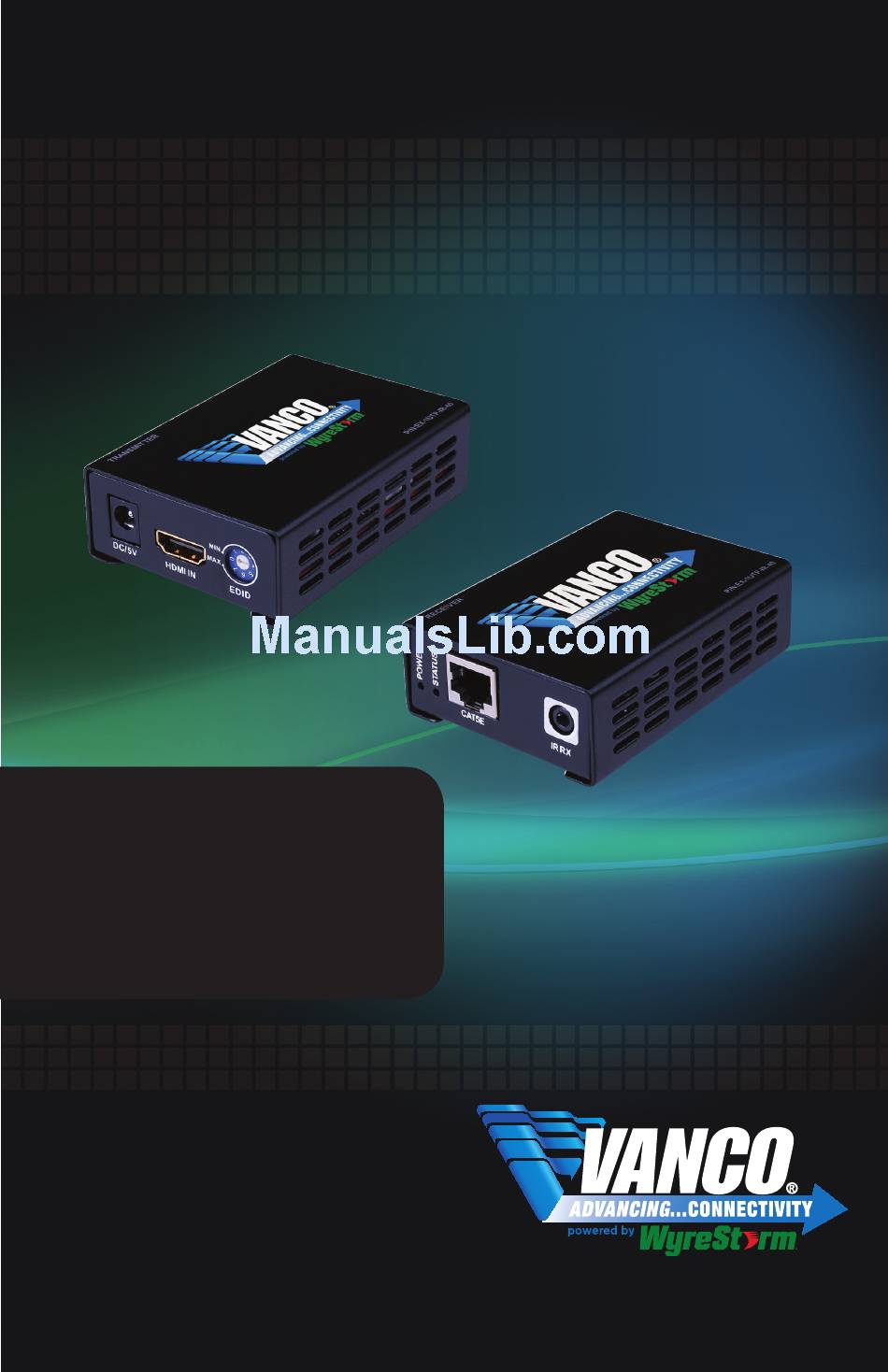

- Page 1 HDMI® EXTENDER O V E R S I N G L E C AT5E/C AT6 C A B L E PRODUCT MANUAL Vanco Part Number 280572 VPW- www.vanco1.com • 888.769.4156...
- Page 2 DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. This product is 100% inspected and tested in the United States to verify HDMI performance parameters.
- Page 3 HDMI signal over a single Cat5e/6/7 of up to 131 ft under ideal conditions. For control and fine tuning, the VPW-280572 offers DIP switches on both the transmitter and receiver baluns to either encourage EDID communication between devices to ensure compatibility, or to fully adjust EQ distance range for transmission signal optimization.
-
Page 4: Specifications
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton: • 1x Vanco Powered by Wyrestorm VPW-280572 TRANSMITTER balun • 1 x Vanco Powered by Wyrestorm VPW-280572 RECEIVER balun • 1 x Product Manual • 2 x pairs of balun mounting brackets •... -
Page 5: Connect And Operate
IR receiver eye. 6. For power, plug in the source first, followed by the Vanco Powered by Wyrestorm Extender Receiver and then Transmitter (2 5V DC power supplies included), followed by the output connected. - Page 6 2, connect the 3D source and the Receiver to the 3D display. position 2, connect the 3D source and the Receiver to the 3D display. Power on all devices and baluns. The VPW-280572 will now detect and Power on all devices and baluns. The VPW-280572 will now detect and Power on all devices and baluns.
- Page 7 Position Functions 0 - 5m (0 - 16.4ft) transmission distance 5 - 10m (16.4 - 32.8ft) transmission distance 10 - 15m (32.8 - 49.2ft) transmission distance 15 - 20m (49.2 - 65.6ft) transmission distance 20 - 25m (65.6 - 82.02ft) transmission distance 25 - 30m (82.02 - 98.42ft) transmission distance 30 - 35m (98.42 - 114.82ft) transmission distance 7 (default) 35 - 40m (114.82 - 131.23ft) transmission distance...
-
Page 8: Troubleshooting
4. If you are still encountering issues, attempt the “hot-plug concept. With all of the HDMI cables disconnected, turn on the source and plug in the HDMI cable into it’s output, then power up the Vanco unit and plug the HDMI cable into it’s input, finally turn on the display and plug the HDMI cable from the receiver into it. -
Page 9: Technical Support
TECHNICAL SUPPORT In case of problems, please contact Vanco Technical Support by dialing 1-800-626-6445 or 1-888-769-4156. You can also email technical support issues to info@vanco1.com When calling, please have the Model Number, Serial Number (affixed to the bottom of the unit) and Invoice available for reference during the call. -
Page 10: Limited Warranty
Vanco, at its option, will repair or replace this product without charge. Any defective parts replaced become the property of Vanco. This warranty does not apply to those products which have been damaged due to accident, unauthorized alterations, improper repair, modifications, inadequate maintenance and care, or use in any manner for which the product was not originally intended. -
Page 11: Liability Statement
LIABILITY STATEMENT Every effort has been made to ensure that this product is free of defects. The manufacturer of this product cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. It is the responsibility of the user and installer of the hardware to check that it is suitable for their requirements and that it is installed correctly. - Page 12 ® Vanco International 506 Kingsland Drive Batavia, Illinois 60510 call: 888.769.4156 fax: 630.879.9189 visit: www.vanco1.com...
