- Page 1 HOME THEATER VGA over Cat5e/ Cat6 Extenders with Audio Vanco Part Number: 280544 (500 ft.) 280546 (1000 ft.) Technical Support www.vanco1.com • info@vanco1.com • 800-626-6445...
-
Page 2: Dear Customer

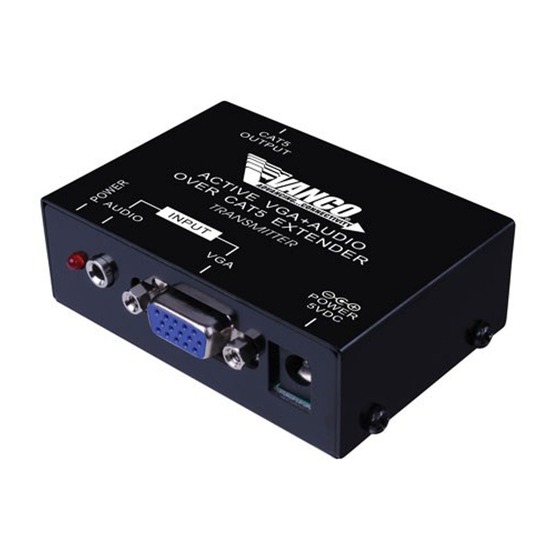

Vanco’s VGA over Cat5e/Cat6 Extenders with Audio allow VGA and audio signals to be transmitted using a single Cat5e or Cat6 cable up to 500 ft (280544) or 1000 ft (280546). For control and fine tuning, the 280546 offers EQ and GAIN controls on the receiver balun to fully adjust for distance range and transmission signal optimization. - Page 3 FEATURES VGA over Cat5e/Cat6 Extender with Audio (500 ft) Part # 280544 • Allows VGA and Audio Signals to be Transmitted • Supports up to 80 meters (264 ft) with using one Cat5e or Cat6 cable resolution 1280x1024 • Transmission Range up to 500 ft.
-
Page 4: Package Contents

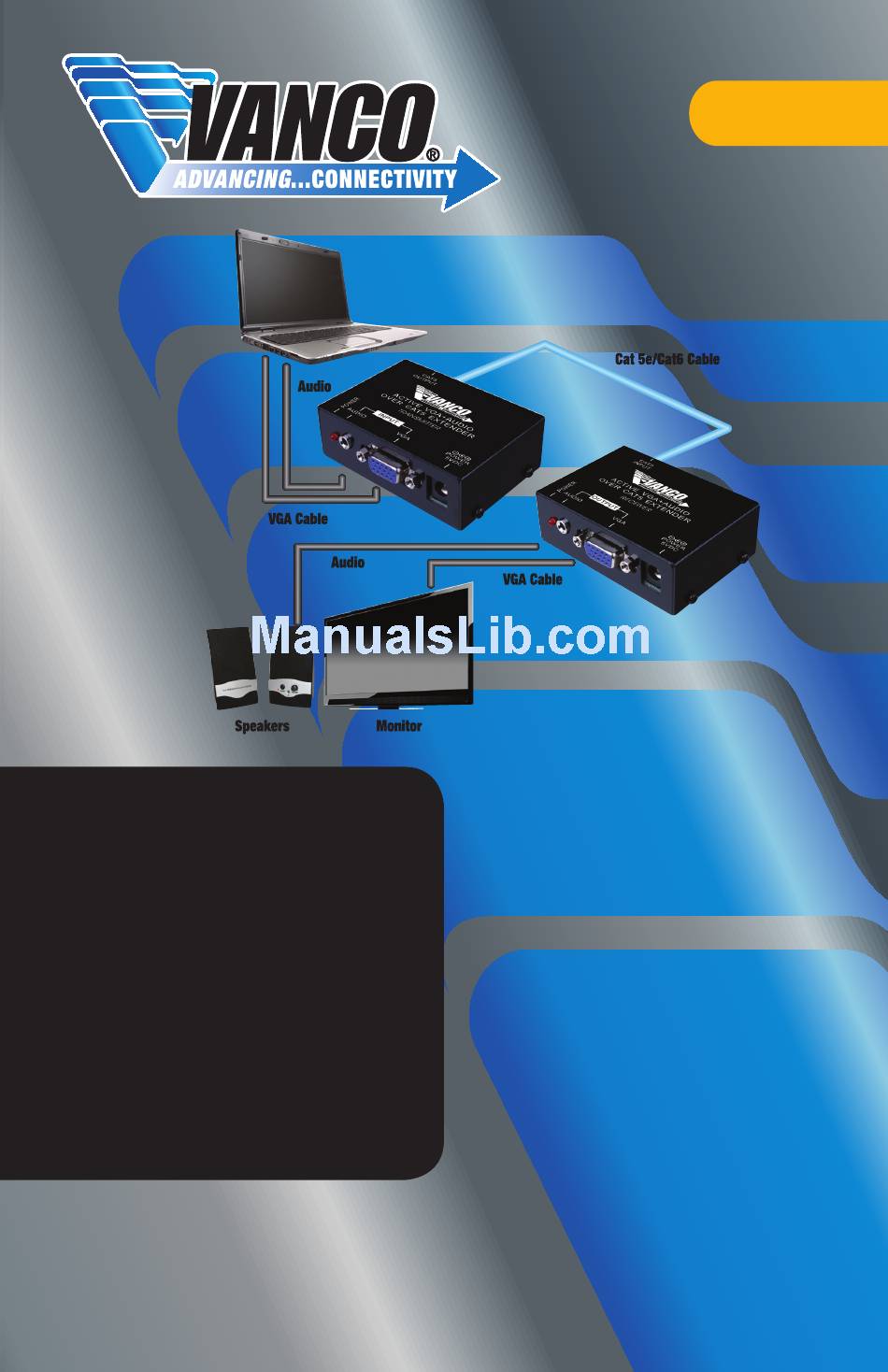

5. Connect a single Category 5e or 6 cable to both transmitter and receiver baluns. 6. For power, plug in the source first, followed by the Receiver and then Transmitter (two 5V DC power supplies included for 280544, two 12V DC power supplies included for 280546), followed by the output connected. - Page 5 280544 CONNECTION DIAGRAM 280546 CONNECTION DIAGRAM 800-626-6445...
-
Page 6: Technical Support
TECHNICAL SUPPORT In case of problems, please contact Vanco Technical Support by e-mail at info@Vanco1.com or call 1-800- 626-6445 between the hours of 8am and 5pm central US time zone on Monday through Friday. When calling, please have the Model Number, Serial Number (affixed to the bottom of the unit) and Invoice available for reference during the call. -
Page 7: Limited Warranty
Vanco, at its option, will repair or replace this product without charge. Any defective parts replaced become the property of Vanco. This warranty does not apply to those products which have been damaged due to accident, unauthorized alterations, improper repair, modifications, inadequate maintenance and care, or use in any manner for which the product was not originally intended. - Page 8 Vanco® International 506 Kingsland Drive Batavia, Illinois 60510 call: 800.626.6445 fax: 630.879.9189 visit: www.vanco1.com...
