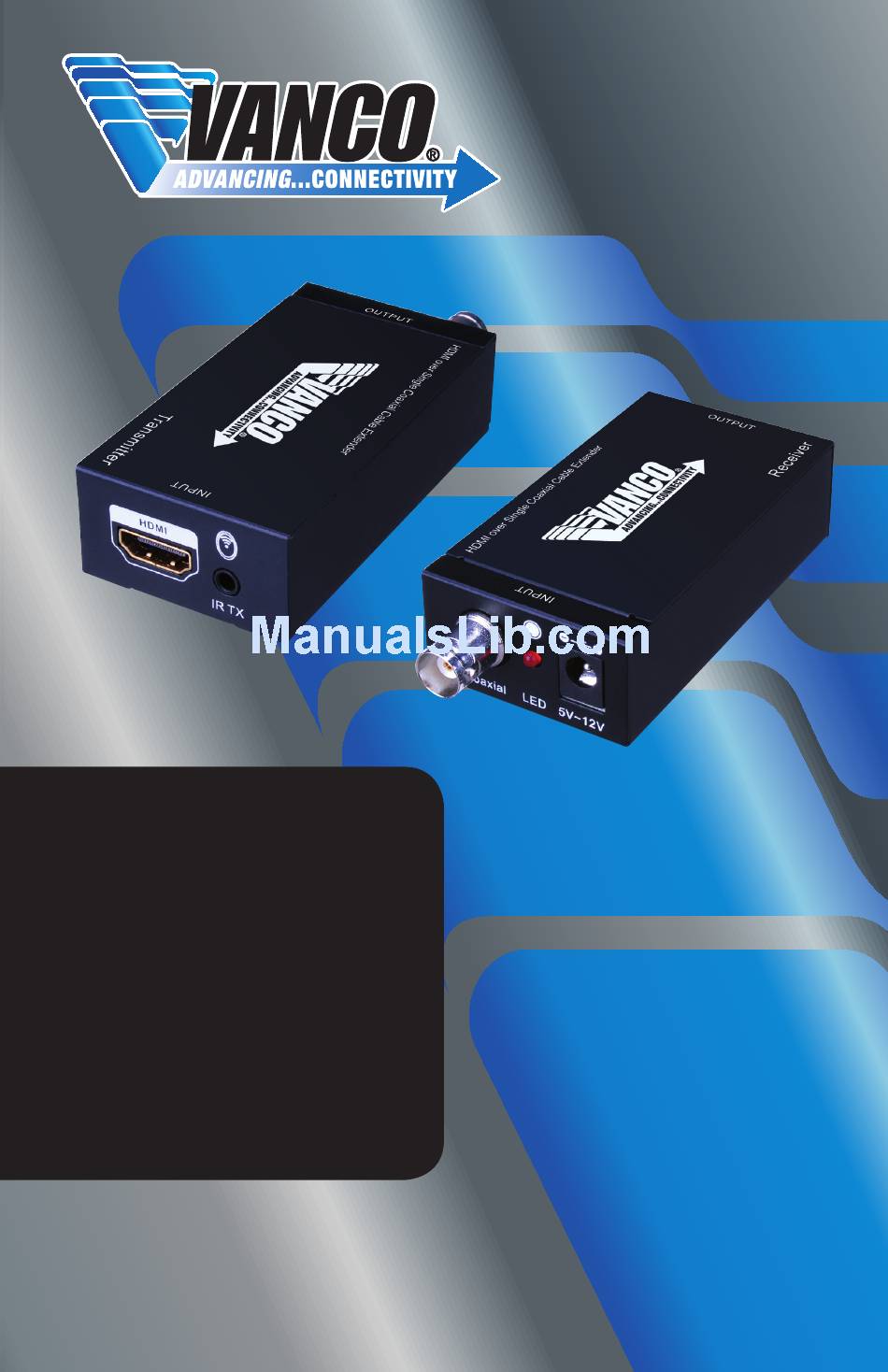

- Page 1 HDMI over ® Single Coax Cable Extender Vanco Part Number: 280567 Technical Support www.vanco1.com • info@vanco1.com • 800-626-6445...
-
Page 2: Dear Customer
DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. This product is 100% inspected and tested in the United States to verify HDMI performance parameters. - Page 3 FEATURES The Vanco 280567 HDMI over Single Coax Cable Extender with IR extends high definition video and audio signals and IR, at a distance of up to 100m/328ft over a single RG6 coax cable. With only one cost effective Coax cable, high definition sources with HDMI outputs can be connected to high definition displays with HDMI inputs over long distances.
-
Page 4: Specifications
PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton: • (1) 280567 [TX & RX] • (1) IR Blaster (TX) • (1) IR Receiver (RX) • (2) DC 5V in line power supply... -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS Transmitting Unit Receiving Unit 1. HDMI: Connect the HDMI source with an HDMI cable. 2. IR TX: Connect included IR TX blaster and assign to corresponding source for source control 3. Coaxial: Connect the coaxial cable to the HDMI Receiver 4. -
Page 6: Connect And Operate
CONNECT AND OPERATE BluRay® Player HDTV HDMI IR Transmitter HDMI IR Receiver Front Front Back Back HDMI over Coax Cable 1. Connect a source such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc. to the HDMI input on the Transmitting unit. 2. - Page 7 IR BLASTER (TX) Plug IR Blaster into IR TX port of transmitter unit (280567-TX); place blaster in front of the IR eye of the source. IR RECEIVER (RX) Plug IR Receiver into IR RX port of receiver unit (280567-RX); place receiver at or near display.
- Page 8 NOTICE 1. Vanco HDMI and Coax cables are strongly recommended for use with this product to ensure best results. 2. Incorrect placement of IR Blaster and Receiver may result in the failure of the IR extenders. Please check carefully before plugging in the IR extender to the respective IR sockets.
-
Page 9: Troubleshooting
4. If you are still encountering issues, attempt the “hot-plug concept. With all of the HDMI cables disconnected, turn on the source and plug in the HDMI cable into it’s output, then power up the Vanco unit and plug the HDMI cable into it’s input, finally turn on the display and plug the HDMI cable from the receiver into it. -
Page 10: Limited Warranty
If repairs are needed during the warranty period the purchaser will be required to provide a sales receipt/sales invoice or other acceptable proof of purchase to the seller of this equipment. The seller will then contact Vanco regarding warranty repair or replacement. -
Page 11: Technical Support
TECHNICAL SUPPORT In case of problems, please contact Vanco Technical Support by dialing 1-800-626-6445. You can also email technical support issues to techsupport@vanco1.com. When calling, please have the Model Number, Serial Number (affixed to the bottom of the unit) and Invoice available for reference during the call. - Page 12 Vanco® International 506 Kingsland Drive Batavia, Illinois 60510 call: 800.626.6445 fax: 630.879.9189 visit: www.vanco1.com...
