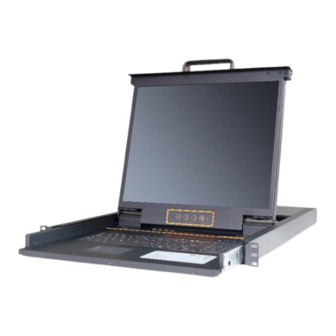

- Page 1 Rackmount LCD Console (4 Port) User Manual www.kinankvm.com @all right reserved Shenzhen Kinan Technology Co., Ltd Print date：2022/04 Version： V1.2...
-
Page 2: Table Of Contents
4 Port User Manual Contents Overview ........................... 3 Product Description......................3 Product Features ........................3 Switch Functions ........................3 Front view..........................4 Structure and Size (19”) ......................5 Hardware Installation ........................ 6 Rack Mounting........................6 Installation instruction ......................7 Opening the console ......................... 8 LED Instructions........................ -
Page 3: Overview
4 Port User Manual Overview Product Description The KVM console integrates multiple port KVM switches in a 1U height console. It can control multiple computers with one monitor, keyboard and mouse. It is easy and fast to install the KVM console, you just need to connect corresponding cables to the right ports of KVM and its module without software configuration. -
Page 4: Front View
4 Port User Manual Front view Figure 1-1.1 front view 1．LED Module 6．Touchpad 2．Rear Bracket Slot 7．Handle 3．LED OSD Controls 8．Release Catch 4．Front Bracket 9．Display panel 10.Switch LED 5．Keyboard - 4 -... -
Page 5: Structure And Size (19")
4 Port User Manual Structure and Size (19″) Figure 1-1.2 Appearance Figure 1-1.3 Rear View 1. Power input (AC) 2. Power switch 3. Ground connection screw 4. Console 5. PC port: 4 port(integrating VGA/keyboard/mouse input port) 6. Cascade port - 5 -... -
Page 6: Hardware Installation
4 Port User Manual Hardware Installation Rack Mounting A standard rack mounting kit is provided to mount the switch in a depth of 716-825mm in a standard 19" rack. For other mounting distance, the rear brackets need to be customized accordingly. -
Page 7: Installation Instruction
4 Port User Manual Installation instruction Make sure the rack mounting KVM switch has been connected to the ground (① in the diagram ) Connect KVM switch with the computer according to② in the diagram Connect power cable to KVM port as shown in ③ in the diagram Turn on the power, the KVM start to work after power supply(④... -
Page 8: Opening The Console
4 Port User Manual Opening the console Release the release catch; Figure 2-3.1 unlocking *Note：The release lock can only do horizontal locking, it can’t bear any load. Pull the LED panel all the way out until it clicks into place. ... -
Page 9: Led Instructions
4 Port User Manual Closing the console Close the LED display panel and the power automatically will shut down. Push the release catch in the direction of the arrow, push the LED panel all the way in until it automatically lock up. AUTO LOCK Figure 2-3.4 open angle of the console LED Instructions... -
Page 10: Led Osd Configuration
4 Port User Manual LED OSD Configuration The LED OSD allows you to set up and configure the LED display. Buttons Functions Opens the menu function and brings up the main MENU SELECT menu. Press this button exits the current menu and return to the previous menu or press this button exits the LED EXIT/AUTO OSD. -
Page 11: Osd Operation
4 Port User Manual OSD Operation Double click the right buttons of the mouse or double click hotkey 【Scroll Lock】 to invoke below OSD main menu. You can customize the OSD hotkeys, find more details in OSD function instructions. Headings Explanation level number-port number It shows the computer port is... -
Page 12: Osd Functions
4 Port User Manual OSD Functions Menus Keys Submenu/explanation Set User login: account and password Set accessible: Set access permissions BRC Mode: monitor multiple computers at the same time Load Default: reset the menu to the original factory default settings All: Lists all the ports on the installation Power On: lists only powered on ports that have Scan... -
Page 13: F1-Adm
4 Port User Manual F1-ADM Menu overview Operating instructions 1）Press【F1】or 【←】【→】enters the F1 submenus. 2）Press 【↑】 【↓】moves the highlight bar to select the submenu. 3）Press【Enter】selects and exits ADM menu. 4）Press【Esc】cancels the operation and exits ADM menu. Menu explanation Set User Login—Press 【Enter】... - Page 14 4 Port User Manual 2. Set accessible—press 【 Enter 】 and select Set Access Permission, then below menu appears: (diagram 4-1.3): 4-1.3 Menu Explanation Full access function to the station and can do any FULL operation to the ports View only function, you can only view the port but you VIEW can’t operate it if set this function.
- Page 15 4 Port User Manual 2). [User1] log in OSD menu, as shown in diagram 4-1.5. 3.BRC Mode - Press【Enter】 to enter the BRC mode. Enter the main menu, press 【F7】to add or remove a port that need broadcast function. When BRC mode is effect, a speaker symbol appears in QV column.(see below diagrams).
-
Page 16: F2-Scan
4 Port User Manual F2-Scan Menu overview Operating instructions 1）Press【F2】or 【←】【→】enters the F2 submenus. 2）Press 【↑】 【↓】moves the highlight bar to select the submenu. 3）Press【Enter】selects and exits Scan menu. 4）Press【Esc】cancels the operation and exits SCAN menu. Menu explanation Submenu Explanation Use this function to scan all ports according to the set scanning... -
Page 17: F3-Set
4 Port User Manual F3-Set Menu overview Operating instructions 1）Press【F3】or 【←】【→】enters the F3 submenus. 2）Press 【↑】 【↓】moves the highlight bar to select the submenu. 3） Press 【 Enter】 selects and exits Set menu. 4）Press【Esc】cancels the operation and exits Set menu. Menu explanation ... - Page 18 4 Port User Manual OSD Hotkey Operation Operating instruction Press【F3】and move the highlight bar with【↓】 to select “OSD Hotkey” submenu . Press 【Enter】and below screen appears: KVM default hotkey:【Scroll Lock】 2.Select the“【Ctrl】【Ctrl】 +【KVM Hotkey】 “ and press【Enter】, and then the 【Ctrl】 hotkey is availablein this hotkey mode, themouse hotkey can't enter the OSD menu Invoke hotkey：double click 【L_Ctrl】...
-
Page 19: F4-Tool
4 Port User Manual F4-Tool Menu overview Operating instructions 1）Press【F4】or 【←】【→】enters the F4 submenus. 2）Press 【↑】 【↓】moves the highlight bar to select the submenu. 3）Press【Enter】selects and exits Tool menu. 4）Press【Esc】cancels the operation and exits Tool menu. Menu explanation Submenu Instruction Initialize the keyboard and mouse that connected to KVM... -
Page 20: F6-Edit Port Names
4 Port User Manual F6-Edit port names Select the port with【↑】【↓】 key; Press F6 and key in the new name or modify the old one, then press Enter to save the name and exit editing. Press 【 Esc 】 to cancel and exit the ... - Page 21 4 Port User Manual Setting OSD default values Settings Default values OSD hotkey 【Scroll Lock 】【Scroll Lock 】 Original user name 【Enter】 Original password 【Enter】 Port display duration 0 seconds Port display mode Bank No.+ Port No.+ port name Port name SYSTEM Scan duration 5 seconds...
-
Page 22: Usb Keyboard Emulation
4 Port User Manual USB Keyboard Emulation Mac keyboard The PC compatible (101/104 keys) keyboard can emulate the functions of the Mac keyboard. The emulation mappings are listed in the below table: PC keyboard MAC keyboard [Shift] Shift [Ctrl] Ctrl L_Win &... -
Page 23: Sun Keyboard
4 Port User Manual Sun keyboard The PC compatible (101/104 keys) keyboard can emulate the functions of the Sun keyboard when the control key [ ] is used in conjunction with other keys. The L_Win corresponding functions are shown in the below table: PC keyboard Sun keyboard L_Win&L_Alt... -
Page 24: Appendix
4 Port User Manual Appendix Specifications(19″) Model No XL1904 Function Direct Computer connections Port emulation Keyboard, mouse LED model SXGA TFT View area 19″ Optimum 1280×1024@60Hz resolution LED monitor Display color 16.7 M Brightness 250cd/m²（ T y p ） Contrast ratio 1000 : 1 （... -
Page 25: Troubleshooting
4 Port User Manual Troubleshooting 1. The KVM console does not work when I connect and use the console for the first time. Solutions: Please re-connect the KVM console according to below steps: 1) Disconnect all the signal and power cables connected to KVM. 2) Then power on KVM and you hear the boot indicating sound from the beeper, a screen automatically pop up for you to enter the user name and password. - Page 26 4 Port User Manual 6. When I switch to one port, the keyboard and mouse do not work. Solutions: 1) Make sure you have exited the OSD menu. 2) Invoke the OSD main menu and check the user name on the top left, make sure the user has got the access permission from the administrator.
