Summary of Contents for KinAn LD1801

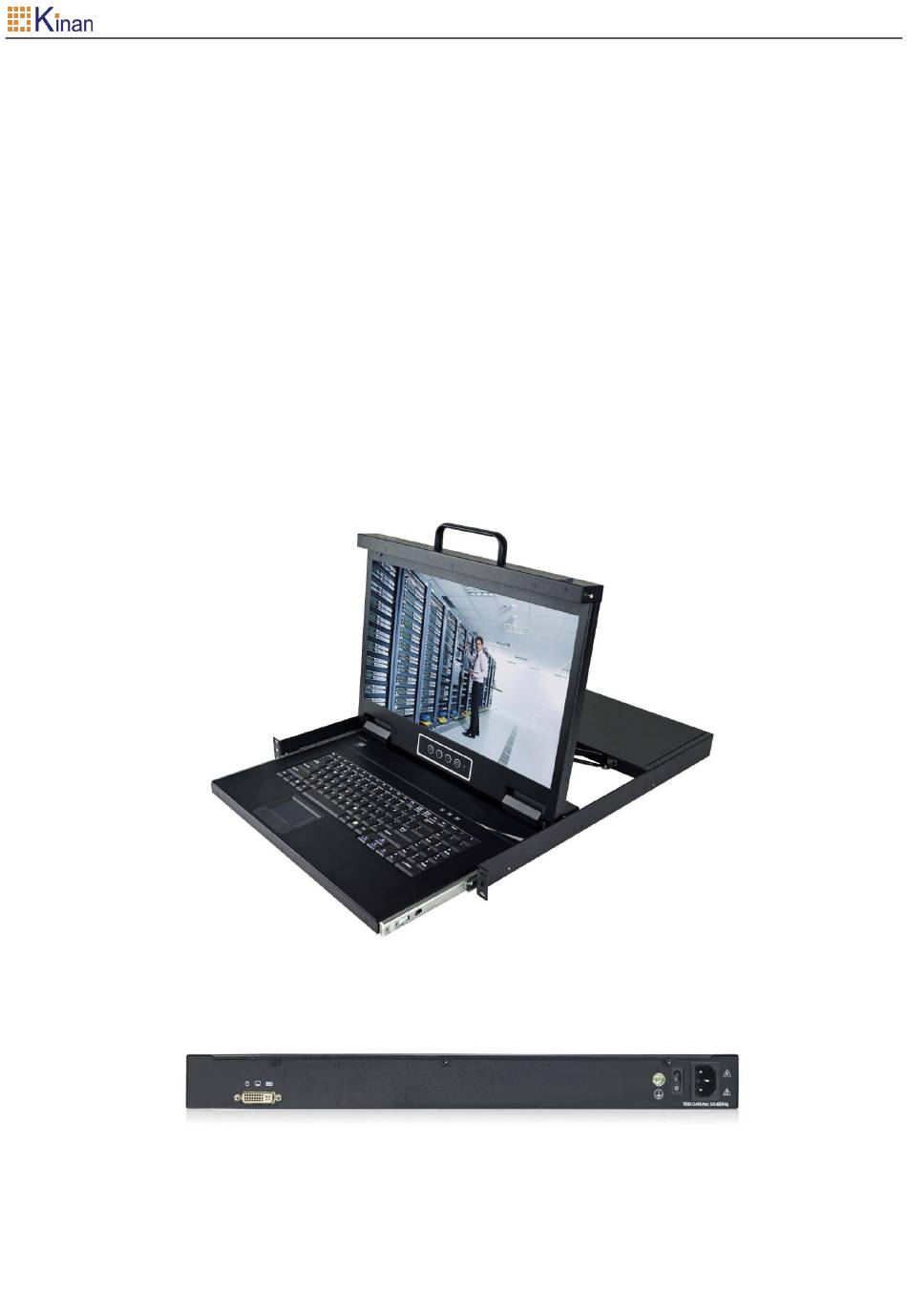

- Page 1 18.5” 1 Port DVI LCD Console （LD1801）...

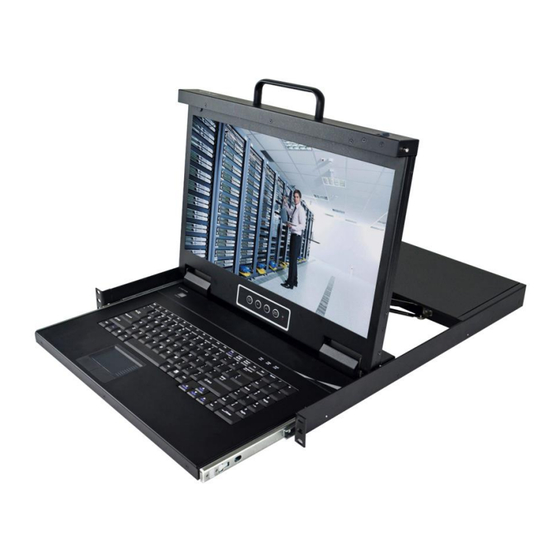

- Page 2 Overview LD1801 is a single port DVI console which integrates the 18.5” widescreen LCD monitor, keyboard and mouse in a 1U rack housing; it is fit to be installed in a standard 19” rack. It can connect one DVI computer via standard DVI port, resolution is up to 1920 x 1080@60Hz.
- Page 3 www.kinankvm.com 1 PC Port(DVI) 3 Power switch 2 Ground Connection Screw 4 Power input(AC or DC) Features 3 in 1 LCD console integrates the monitor, keyboard and mouse. The console can be connected to a PC or a KVM switch to control and manage single/multiple PCs. ...
- Page 4 Specifications Model LD1801 Computer Connections Port emulation Keyboard, mouse PS/2, USB LCD model FHD TFT View area 18.47″ Optimum resolution 1920×1080@60Hz LCD monitor Display color 16.7 M 500cd/m² （ T y p ） Brightness 1000 : 1 （ T y p ）...
