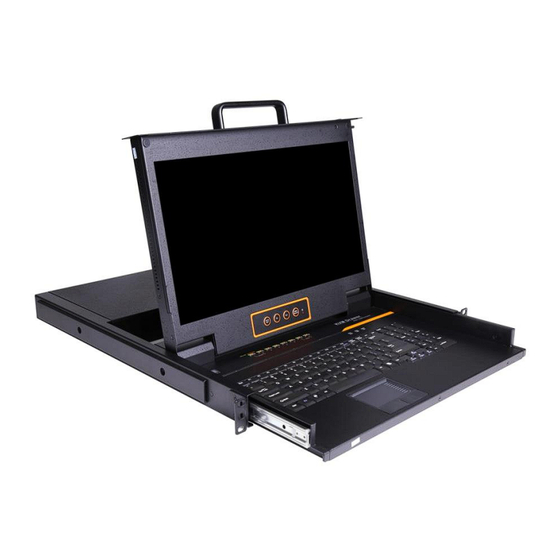

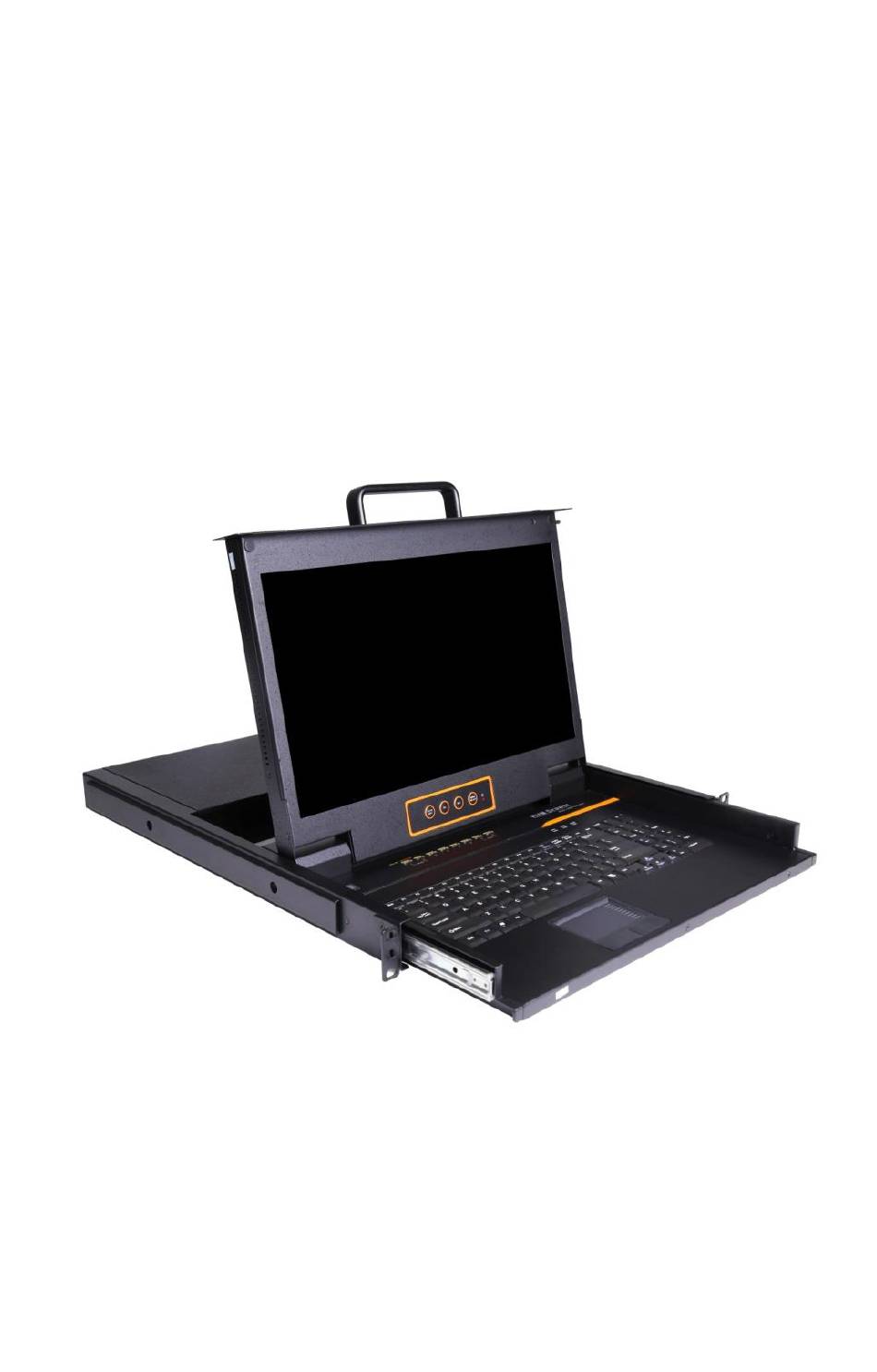

- Page 1 17.3” FHD KVM Console (8 Port/16 Port) User Manual www.kinankvm.com @all right reserved Shenzhen Kinan Technology Co., Ltd. Printing date：2018/05 Version： V2.0 - 1 -...
-
Page 2: Table Of Contents
8 Port /16 Port User Manual Contents Overview ......................... 3 Product Description....................3 Product Features ....................3 Front View ....................... 4 Structure and Size....................5 Hardware Installation....................... 6 Rack Mounting ......................6 Installation instruction ..................... 7 Opening the console ....................... 8 Closing the console.................... -
Page 3: Overview
8 Port /16 Port User Manual Overview Product Description The KVM console integrates multiple port KVM switches in a 1U height console. It can control multiple computers with a set of device including monitor, keyboard and mouse, thus saves much cost and space to separately equip keyboard, mouse and monitor for every computer. -
Page 4: Front View
8 Port /16 Port User Manual Automatically shows the computer position on the front panel LED screen under daisy chaining connection without DIP set by hand Auto scan feature for monitoring user-selected computers Hot pluggable --add or remove computers without having to power down the switch ... -
Page 5: Structure And Size
8 Port /16 Port User Manual Structure and Size 1-1.2 1-1.3 PC port: 8/16 port(integrating VGA/keyboard/mouse input port) Power input(AC or DC) Power switch Ground connection screw Cascade port Console - 5 -... -
Page 6: Hardware Installation
8 Port /16 Port User Manual Hardware Installation Rack Mounting A standard rack mounting kit is provided to mount the switch in a depth of 650-850mm (17.3”) in a standard 19”rack. For other mounting distance, the rear brackets need to be customized accordingly. With one person hold the switch in place and the other person slides the L bracket into the switch’s side mounting brackets from the front to the back, then screws the brackets to the rack. -
Page 7: Installation Instruction
8 Port /16 Port User Manual Installation instruction Make sure the rack mounting KVM switch has been connected to the ground (① in the diagram ) Connect KVM switch with the computer according to ② in the diagram Connect power cable to KVM port as shown in ③ in the diagram Turn on the power, the KVM start to work after power supply(④... -
Page 8: Opening The Console
8 Port /16 Port User Manual Opening the console Release the release catch. Diagram 1-3.1 unlocking *Note：The release lock can only do horizontal locking, it can’t bear any load. Pull the LCD panel all the way out until it clicks into place. ... -
Page 9: Closing The Console
8 Port /16 Port User Manual Closing the console Close the LCD display panel and the power automatically shut down. Push the release catch in the direction of the arrow; pull the LCD panel all the way in until it automatically locks up. AUTO LOCK Diagram 1-3.4 unlocking the console LED Instructions... -
Page 10: Operating The Monitor
8 Port /16 Port User Manual Operating the monitor The LED OSD allows you to set up and configure the LCD display. Buttons Functions Press this button invokes the menu function MENU SELECT and brings up the main menu. Press this button exits the current menu and returns to the previous menu or presses this EXIT/AUTO button exits the LED OSD. -
Page 11: Osd Operation
8 Port /16 Port User Manual OSD Operation OSD Overview Double click the right buttons of the mouse or double click hotkey【Scroll Lock】 to invoke below OSD main menu. You can customize the OSD hotkeys; find more details in OSD function instructions. Headings Explanation level number-port number... -
Page 12: Osd Functions
8 Port /16 Port User Manual OSD Functions Menus Keys Submenu/explanation Set User login: account and password Set accessible: Set access permissions BRC Mode: monitor multiple computers at the same time Load Default: reset the menu to the original factory default settings All : Lists all the ports on the installation Power On: lists only powered on ports that have... -
Page 13: F1-Adm
8 Port /16 Port User Manual F1-ADM Menu Overview Operating instructions 1）Press【F1】or 【←】【→】enters the F1 submenus. 2）Press 【↑】 【↓】moves the highlight bar to select the submenu. 3）Press【 Enter】 selects and exits ADM menu. 4）Press【Esc】cancels the operation and exits ADM menu. ... - Page 14 8 Port /16 Port User Manual 2. Set Accessible—press 【Enter】 to select Set Accessible, then below menu appears (diagram 3-1.3): Diagram 3-1.3 Menu Explanation Full access function to the station and can do any FULL operation to the ports Read only function, you can only read the port but VIEW you can’t operate it if set this function.
- Page 15 8 Port /16 Port User Manual 3. BRC Mode - Press【Enter】to enter the BRC mode (see below diagram 4-1.6). Enter the main menu, press【F7】 to add or delete a port that need broadcast function. When BRC mode is effect, a speaker symbol appears in QV column.(see below diagram 4-1.7).
-
Page 16: F2-Scan
8 Port /16 Port User Manual F2-Scan Menu Overview Operating instructions 1）Press【F2】or 【←】【→】enters the F2 submenus. 2）Press 【↑】 【↓】moves the highlight bar to select the submenu. 3 ） Press 【 Enter 】 selects and exits Scan menu. 4）Press【Esc】cancels the operation and exits SCAN menu. -
Page 17: F3-Set
8 Port /16 Port User Manual F3-Set Menu Overview Operating instructions 1）Press【F3】or 【←】【→】enters the F3 submenu. 2）Press 【↑】 【↓】moves the highlight bar to select the submenu. 3）Press【Enter】selects and exits Set menu. 4）Press【Esc】cancels the operation and exits Set menu. Menu Explanation Submenu Default value... - Page 18 8 Port /16 Port User Manual OSD Hotkey Operation Operating instruction Press【F3】and move the highlight bar with【↓】 to select “OSD Hotkey” submenu . Press 【Enter】and below screen appears: KVM default hotkey:【Scroll Lock】 3.Select the“ 【 Ctrl】 【Ctrl】 + 【KVM Hotkey】 “ and press 【Enter】 , and then the 【Ctrl hotkey is availablein this hotkey mode, themouse hotkey can't enter the OSD menu.
-
Page 19: F4-Tool
8 Port /16 Port User Manual F4-Tool Menu Overview Operating instructions 1）Press【F4】or 【←】 【→】enters the F4 submenus. 2）Press 【↑】【 ↓】 moves the highlight bar to select the submenu. 3）Press【Enter】selects and exits Tool menu. 4) Press 【Esc】 cancels the operation and exits Tool menu. -
Page 20: F6-Edit Port Name
8 Port /16 Port User Manual F6-Edit Port Name Select the port with【↑】【↓】 key; Press F6 and key in the new name or modify the old one, then press Enter to save the name and exit editing. Press 【Esc】to cancel and exit the editing. - Page 21 8 Port /16 Port User Manual Setting OSD Default Values Settings Default values 【Scroll Lock 】【Scroll Lock 】 OSD hotkey 【 Enter】 Original ADM user name 【 Enter】 Original ADM password Port display duration 5 seconds Port display mode Bank No.+Port No.+port name Port name SYSTEM Scan duration...
-
Page 22: Usb Keyboard Emulation
8 Port /16 Port User Manual USB Keyboard Emulation Mac keyboard The PC compatible (101/104 keys) keyboard can emulate the functions of the Mac keyboard. The emulation mappings are listed in the below table: PC keyboard MAC keyboard [Shift] Shift [Ctrl] Ctrl L_Win &... -
Page 23: Sun Keyboard
8 Port /16 Port User Manual Sun keyboard The PC compatible (101/104 keys) keyboard can emulate the functions of the Sun keyboard when the control key [L_Win] is used in conjunction with other keys. The corresponding functions are shown in the below table: PC keyboard Sun keyboard L_Win&L_Alt... -
Page 24: Appendix
8 Port /16 Port User Manual Appendix Specifications Model XW1708 XW1716 Direct Computer connections Port Keyboard, PS/2, USB emulation mouse LCD model FHD TFT 17.3” View area Optimum 1920×1080@60Hz resolution LCD monitor Display color 16.7 M 400cd/m² （ T y p ）... -
Page 25: Faq
8 Port /16 Port User Manual 1. The KVM console do not work when I connect and use the console for the first time. Solutions: Please re-connect the KVM console according to below steps: 1) Disconnect all the signal and power cables connected to KVM. 2) Then power on KVM and you hear the boot indicating sound from the beeper, a screen automatically pop up for you to enter the user name and password. - Page 26 8 Port /16 Port User Manual 6. When I switch to one port, the keyboard and mouse do not work. Solutions: 1) Make sure you have exited the OSD menu. 2) Invoke the OSD main menu and check the user name on the top left, make sure the user has got the access permission from the administrator.
