- Page 1 Rackmount KVM Console User Manual www.kinankvm.com @all right reserved Shenzhen Kinan Technology Co., Ltd Print date: 2022 / 03 Version: V2.1...

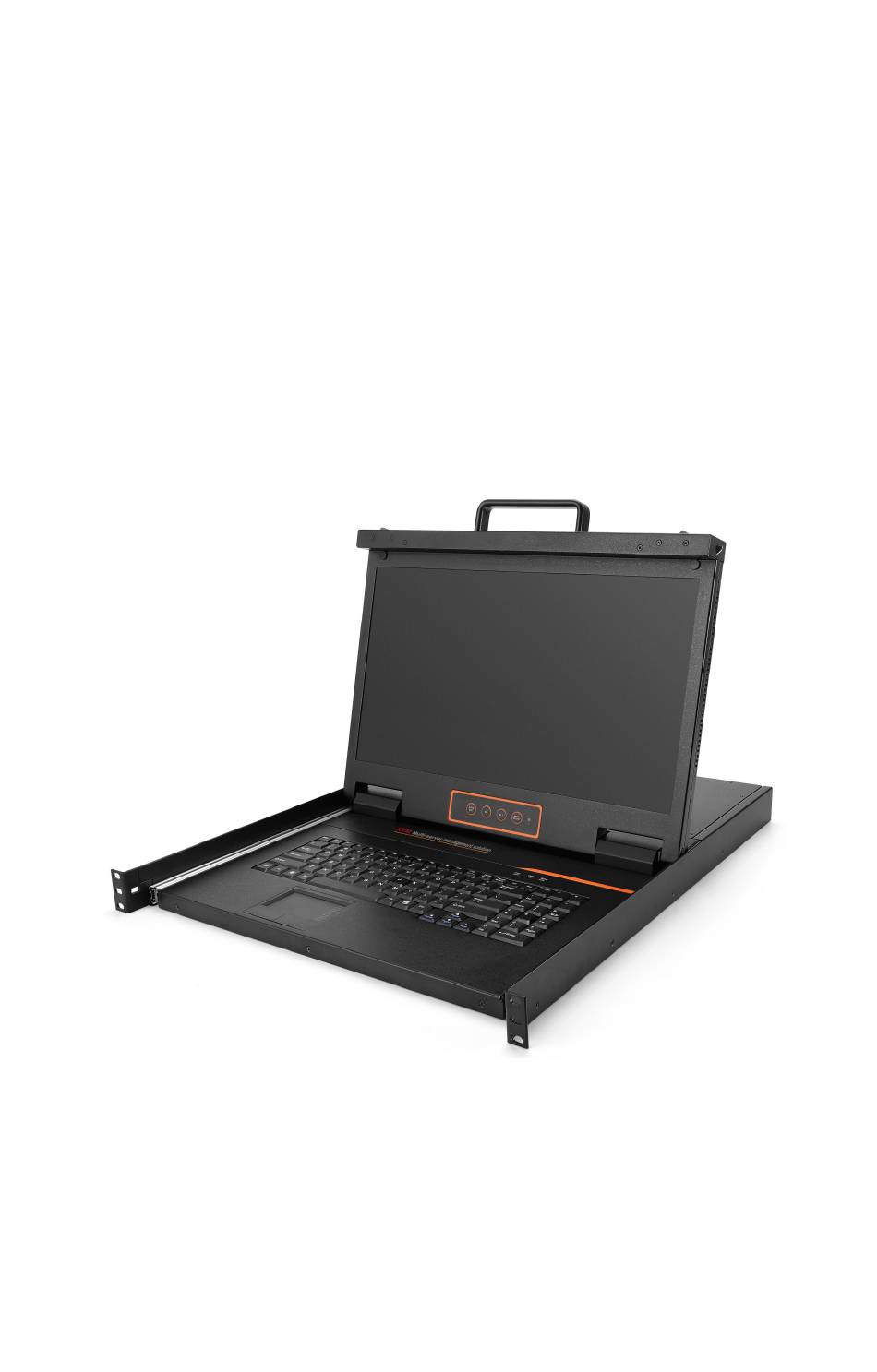

- Page 2 SW1801 User Manual Description Single port console integrates the monitor, keyboard and mouse in a 1U height device, it can be installed in a standard 19” rack. It can connect one computer to control the monitor, keyboard and mouse. Features 3 in 1 LCD console integrating the monitor, keyboard and mouse.
- Page 3 SW1801 User Manual Front View 1-2 front view 1 LCD Monitor 2 Rear Bracket Slot 3 Display Menu Buttons 4 Mounting Bracket 5 Keyboard 6 Touchpad 7 Handle 8 Release Switch 9 Display Panel - 2 -...
- Page 4 SW1801 User Manual Back View -48V -36V~-72V DC IN 100V-240Vac/50~60Hz 1-3 back view Power input (AC or DC) Power Switch Ground connecting screw PC connection port: integrating VGA, keyboard and mouse signal Cable Connection 1-4 cable connection To ensure signal integrity and simplify cable layout, we strongly recommend you use high quality cables with different length as shown in above table.
- Page 5 SW1801 User Manual Rack Mounting A standard rack mounting kit is provided to mount the switch in a depth of 686-770mm n a standard 19” rack. For other mounting distance, the rear brackets need to be customized accordingly With one person hold the switch in place and the other person slides the L bracket into the switch’s side mounting brackets from the front to the back,...
- Page 6 SW1801 User Manual Opening the Console Power on the KVM after connecting cables. Power on the server or PC after power on the KVM. Release the release catch. UNLOCK UNLOCK UNLOCK UNLOCK 2-3 unlocking *Note: The release catch can only do horizontal locking, it can’t bear any load.
- Page 7 SW1801 User Manual Operating the Monitor 3-1 Operating the Monitor The LED OSD allows you to set up and configure the LED display. Buttons Functions MENU Brings up the main menu. SELECT Exits the current menu and returns to the previous EXIT/AUTO menu or exits the LED OSD.
- Page 8 SW1801 User Manual Specifications Model SW1801 Direct Computer Connections Port Keyboard, PS/2, USB emulation mouse LCD model FHD TFT View area 18.47″ Optimum 1920×1080@60Hz resolution LCD monitor Display color 16.7 M Brightness 250cd/ m² (T y p) Contrast ratio 1000: 1 (T y p) Pixel pitch(mm) 0.213(H) ×0.213(W)
