- Page 1 19″ Rack-Mount LCD Console (VGA / DVI) User Manual www.kinankvm.com @all right reserved Shenzhen Kinan Technology Co., Ltd. Print Date: 2020/06 Version: V1.0...

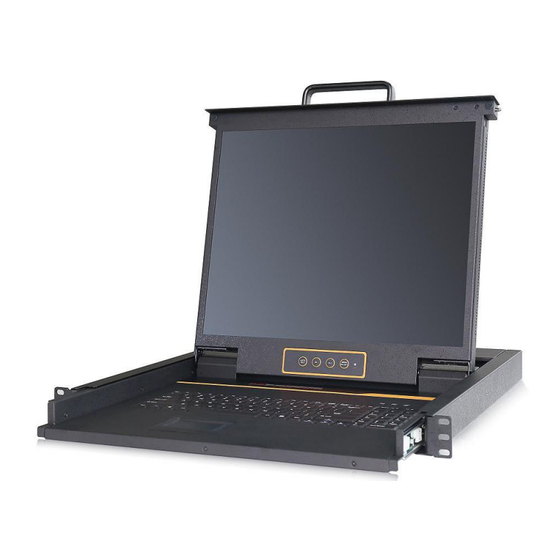

- Page 2 User Manual Overview The LS3901 DVI VGA LCD Console is a short depth single rail LCD KVM console featuring a 19" LCD monitor with an integrated keyboard and touchpad. It supports two types of video input – DVI and VGA – allowing users to connect the console and the computer via any of the two types of video source.
-
Page 3: Front View

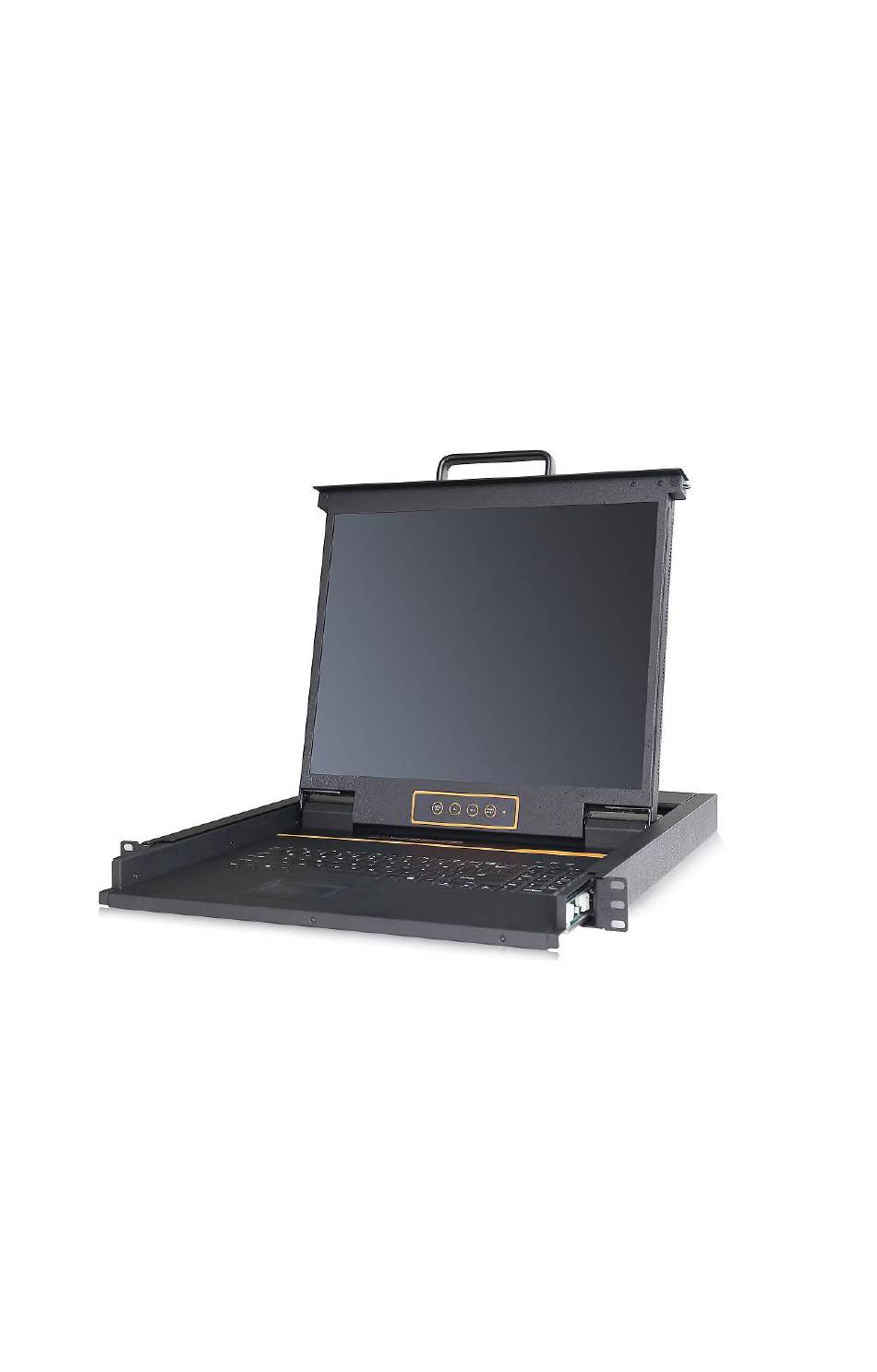

LS3901 User Manual Front View Figure 1-2 Front View 1．LCD monitor 6．Touchpad 2．Rear Bracket Slot 7．Handle 3．OSD Controls 8．Release Lock 4．Front Bracket 9．Display Panel 5．Keyboard - 2 -... -
Page 4: Rack Mounting
LS3901 User Manual Rack Mounting A standard rack mounting kit is provided to mount the switch in a depth of 495~510mm & 695~710mm in a standard 19” rack. For other mounting distance, the rear brackets need to be customized accordingly. -
Page 5: Connection Diagram
LS3901 User Manual Rear View Figure 3-1 rear view Components Function 100V-240Vac Power input Power switch Ground connection DVI video input VGA video input Connection Diagram Figure 3-2 Connection Diagram To ensure signal integrity and simplify cable layout, we strongly recommend you use high quality cables with different length. -
Page 6: Opening The Console
LS3901 User Manual Opening the Console Power on the KVM after connecting cables. Power on the server or PC after power on the KVM. Release the release catch. Figure 1-2.3 unlocking *Note: The release catch can only do horizontal locking, it can’t bear any load. - Page 7 LS3901 User Manual OSD Controls Figure 1-2.6 OSD controls Buttons Functions Press this button invokes the menu function and MENU SELECT brings up the main menu. Press EXIT exits the current menu and returns to the previous menu or presses this button exits EXIT/AUTO the LED OSD.
- Page 8 LS3901 User Manual Specifications-19″ Model LS3901 Direct Computer Connections Keyboard, Port emulation PS/2, USB mouse LCD model SXGA TFT View area 19″ Optimum 1280×1024@60Hz resolution LCD monitor Display color 16.7 M Brightness 250cd/m²（ T y p ） Contrast ratio 1000 : 1 （ T y p ）...
- Page 9 LS3901 User Manual - 8 -...
