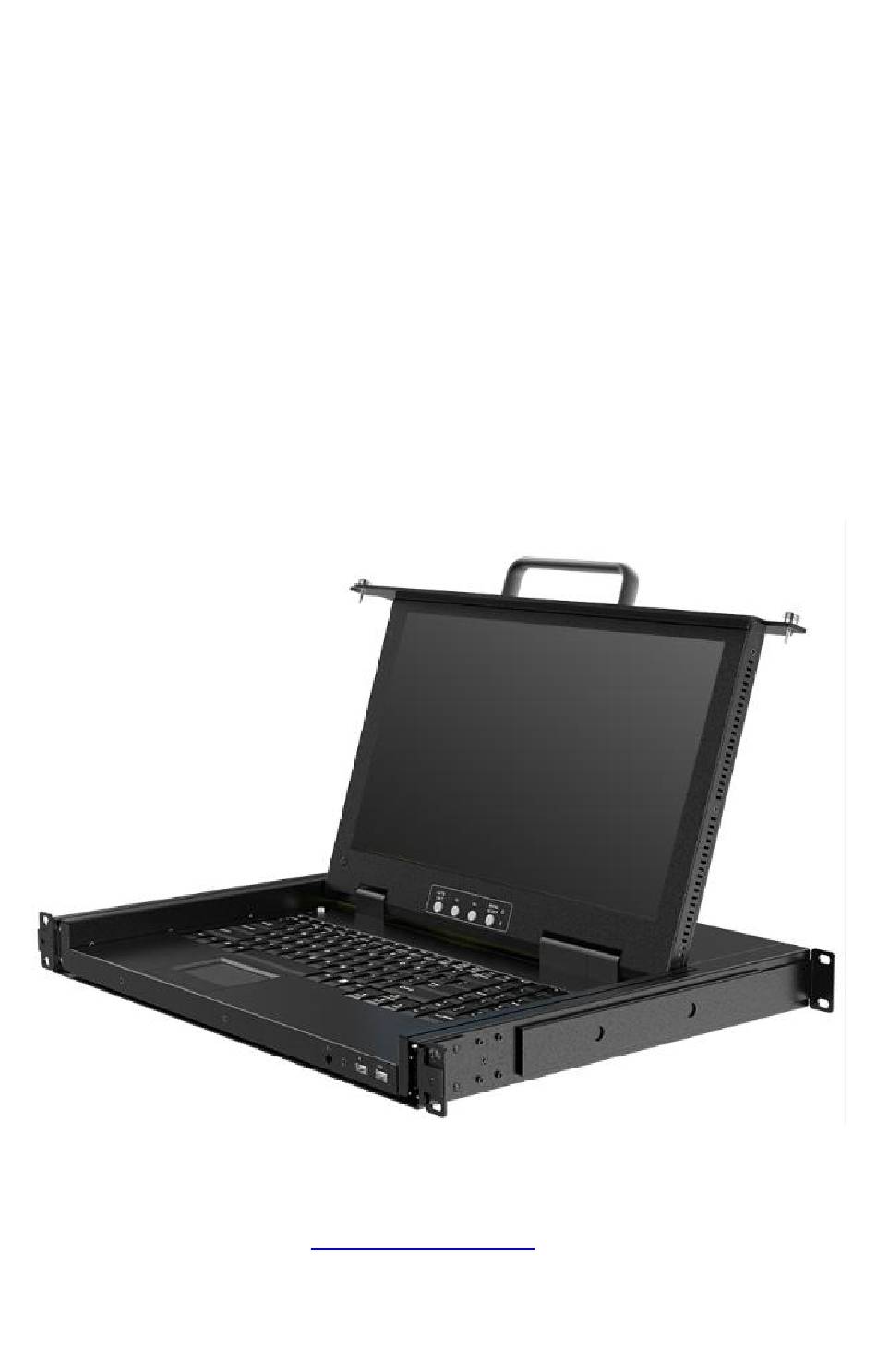

- Page 1 1U Short Depth Rack Mount 15.6″LCD KVM Console User Manual www.kinankvm.com @all right reserved Shenzhen Kinan Technology Co., Ltd. Printing date：2024/02 Version： V1.2...
- Page 2 User Manual Overview The XW1601 1U rackmount console is the ideal solution for ETC specialized rack, 5G rack, network specialized rack and standard server rack. Featuring an integrated 15.6” LCD display, full-99 key keyboard and touchpad, all in a 1U rack-mountable housing, it supports the shortest mounting depth: 360mm.
- Page 3 XW1601 User Manual Front view(As shown in figure 1-1) Figure 1-1.1 1．LCD Display 6．Touchpad 2．Rear Bracket 7．Handle 3．LED OSD Controls 8．Fixing Screw 4．Front Bracket 9．Display panel 10. USB port 5．Keyboard Connection Diagram Figure1- 1.2 - 2 -...
- Page 4 XW1601 User Manual Rack Mounting A standard rack mounting kit is provided to mount the LCD console in a depth of 266-400mm in a standard 19” rack. (For other depth, the rear bracket can be customized accordingly, check figure 2-1.1 and 2-1.2) With one person hold the switch in place and the other person slides the L bracket into the switch’s side mounting brackets from the front to the back, then...
- Page 5 XW1601 User Manual For depth: 300-400mm, move back the rear brackets before installation. 2-1.3 rack mounting (3) For rack without rear vertical frame, need to install L stand. 2-1.4 rack mounting (4) - 4 -...
- Page 6 XW1601 User Manual Opening the console Power on the KVM after connection Pull it out, and the rails will be locked automatically; Release the front panel screw Loosen 2-2.1 unlocking Rotate the LCD module all the way back to expose the LCD screen, the LCD ...
- Page 7 XW1601 User Manual LCD OSD Configuration The LCD OSD allows you to set up and configure the LCD display. Buttons Functions Press this button invokes the menu function and MENU SELECT brings up the main menu. Press this button exits the current menu and return...
- Page 8 XW1601 User Manual Specifications Model XW1601 Direct Computer connections Port Keyboard, mouse PS/2, USB emulation LCD model FHD TFT View area 15.6 " Optimum 1920 x 1080@60Hz resolution LCD monitor Display color 16.2M Brightness 250cd/m²（ T y p ） Contrast ratio 800 : 1 （...
