Summary of Contents for KinAn XL1808

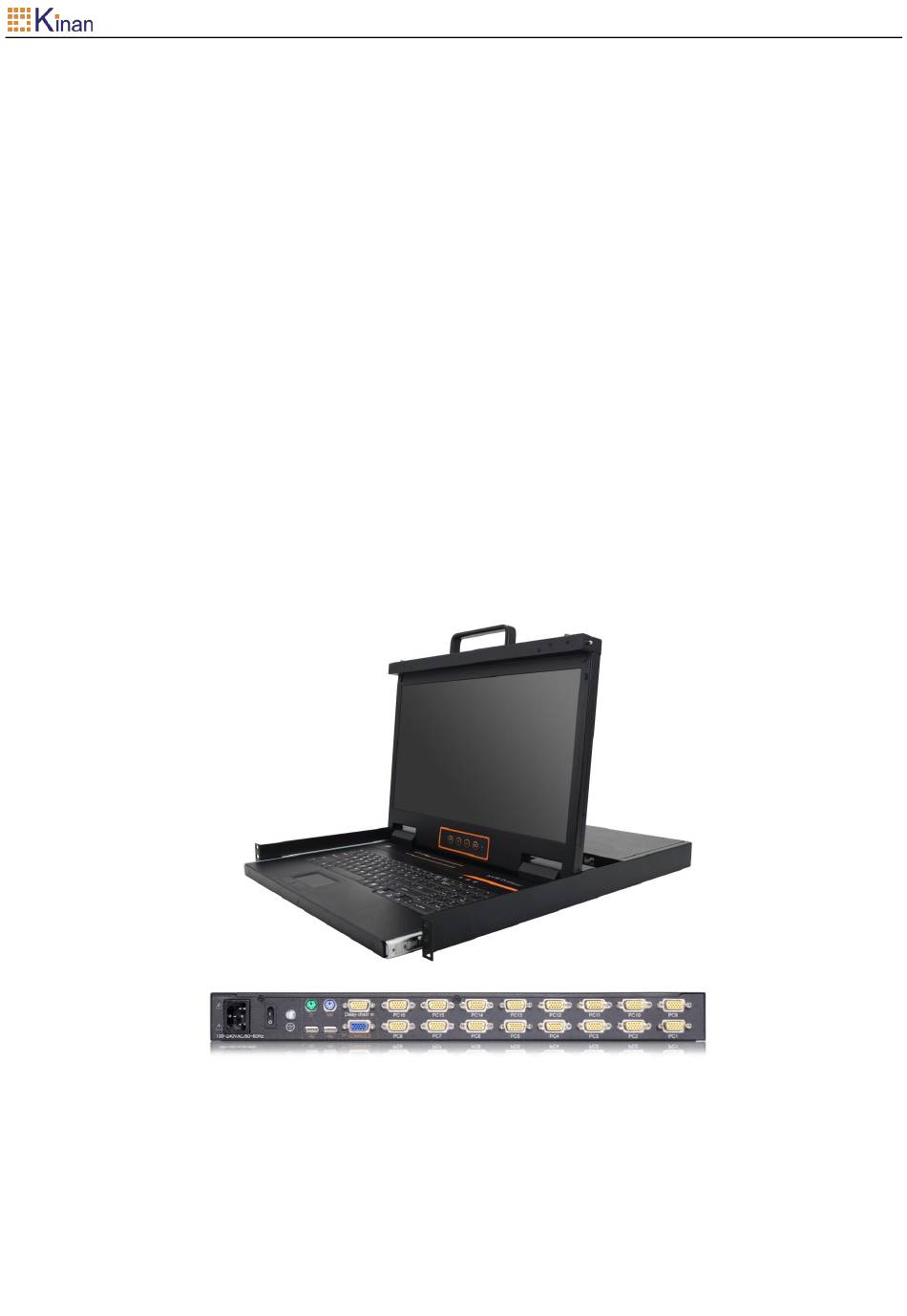

- Page 1 8/16 Port 18.5” VGA LCD KVM Console （XL1808 / XL1816）...
- Page 2 www.kinankvm.com Overview The18.5 XL Series VGA LCD KVM console is a control unit that allows access to multiple computers from an USB or PS/2 KVM console. An extra console port is provided on the rear panel to manage the LCD KVM switch from an external console.
- Page 3 www.kinankvm.com Structure 1 Host Port 4 Ground Connection Screw 2 Power input(AC) 5 Cascade port 3 Power switch 6 Console Port Features 18.5” LED TFT monitor, high brightness, high resolution 1U height, suitable height for standard 19”rack mount, metal structure ...
- Page 4 www.kinankvm.com Two level password security – only authorized users view and control computers; up to four users and an administrator with a separate profile for each Users can set up different hot keys( 【 Scroll Lock】 / 【 Caps Lock】 / 【 F12】 / 【 Ctrl】 , auto scanning time, port display time, log out time, buzzer on/off and mouse on/off according to their different needs ...
- Page 5 Specifications Model XL1808 XL1816 Direct Computer Connections Port PS/2, USB Keyboard, mouse Emulation LED Model WXGA TFT View area 18.5” Optimum Resolution 1366×768@60Hz LED monitor Display color 16.7 M Brightness 250cd/m² (T y p) Contrast ratio 1000 : 1 (T y p) Pixel pitch(mm) 0.294(H) ×...
