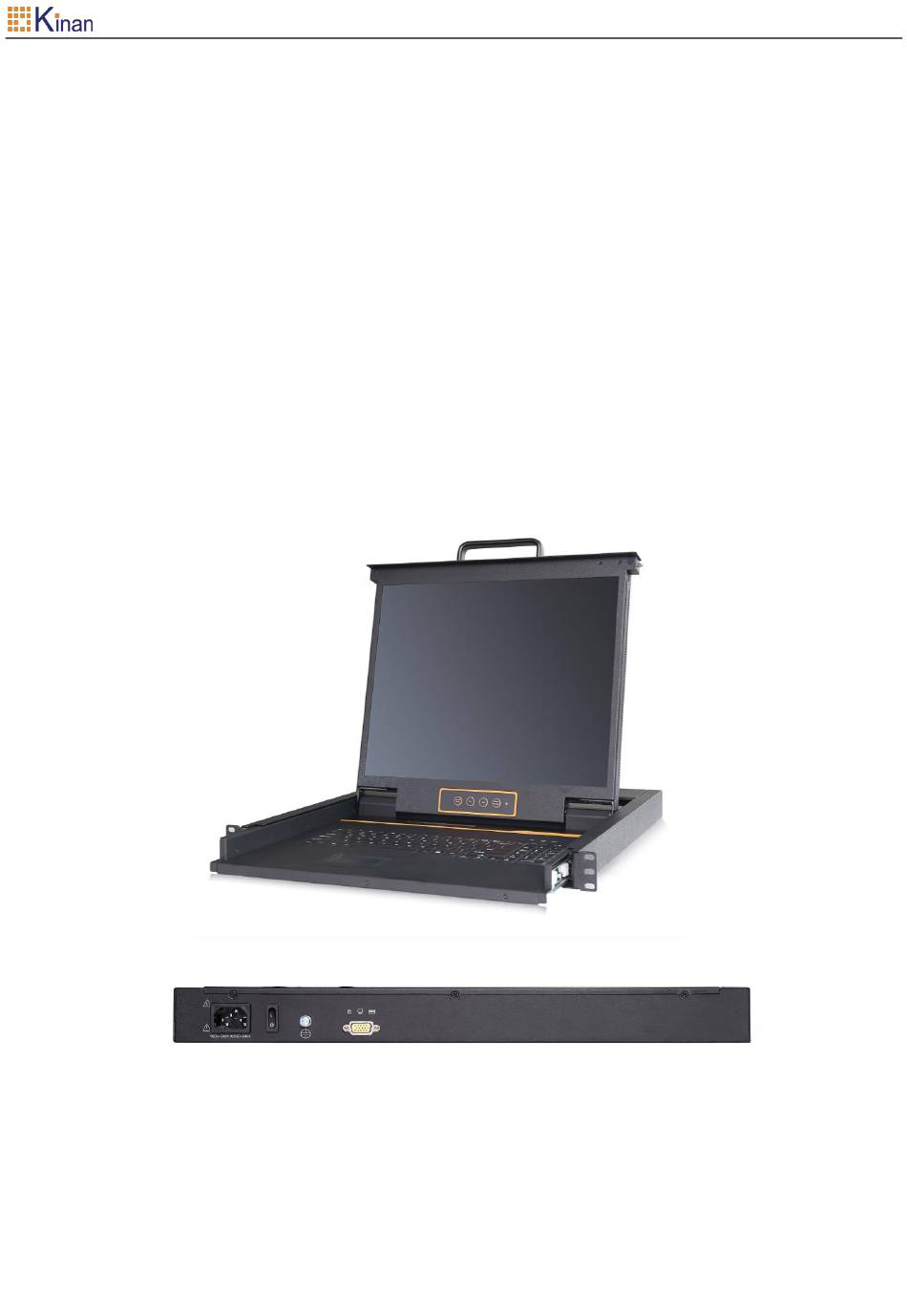

- Page 1 19” 1 Port VGA LCD Console （LS1901）...

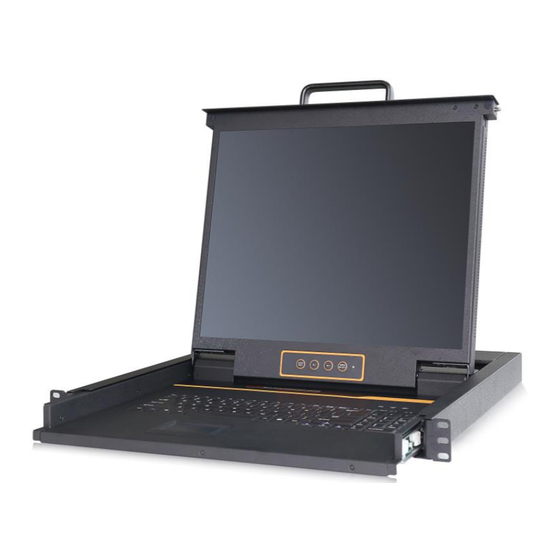

- Page 2 Overview LS1901 is a 19” single port console which integrates the monitor, keyboard and mouse in a 1U device; it fits for installed in a standard 19” rack. It can connect one computer to control the monitor, keyboard and mouse.
- Page 3 www.kinankvm.com -48V 1 PC Port 3 Power input (AC or DC) 2 Ground Connection Screw 4 Power switch Features 3 in 1 LCD console integrates the monitor, keyboard and mouse. The LCD console can be connected to a PC or a KVM switch to control and manage single/multiple PCs. ...
- Page 4 Specifications Model LS1901 Computer Connection Port emulation Keyboard, mouse PS/2, USB LCD model SXGA TFT View area 19 " Optimum resolution 1280×1024@60Hz LCD monitor Display color 16.7 M Brightness 250cd/m² ( T y p ) Contrast ratio 1000 : 1 ( T y p ) Pixel pitch(mm) 0.294(H) ×...
