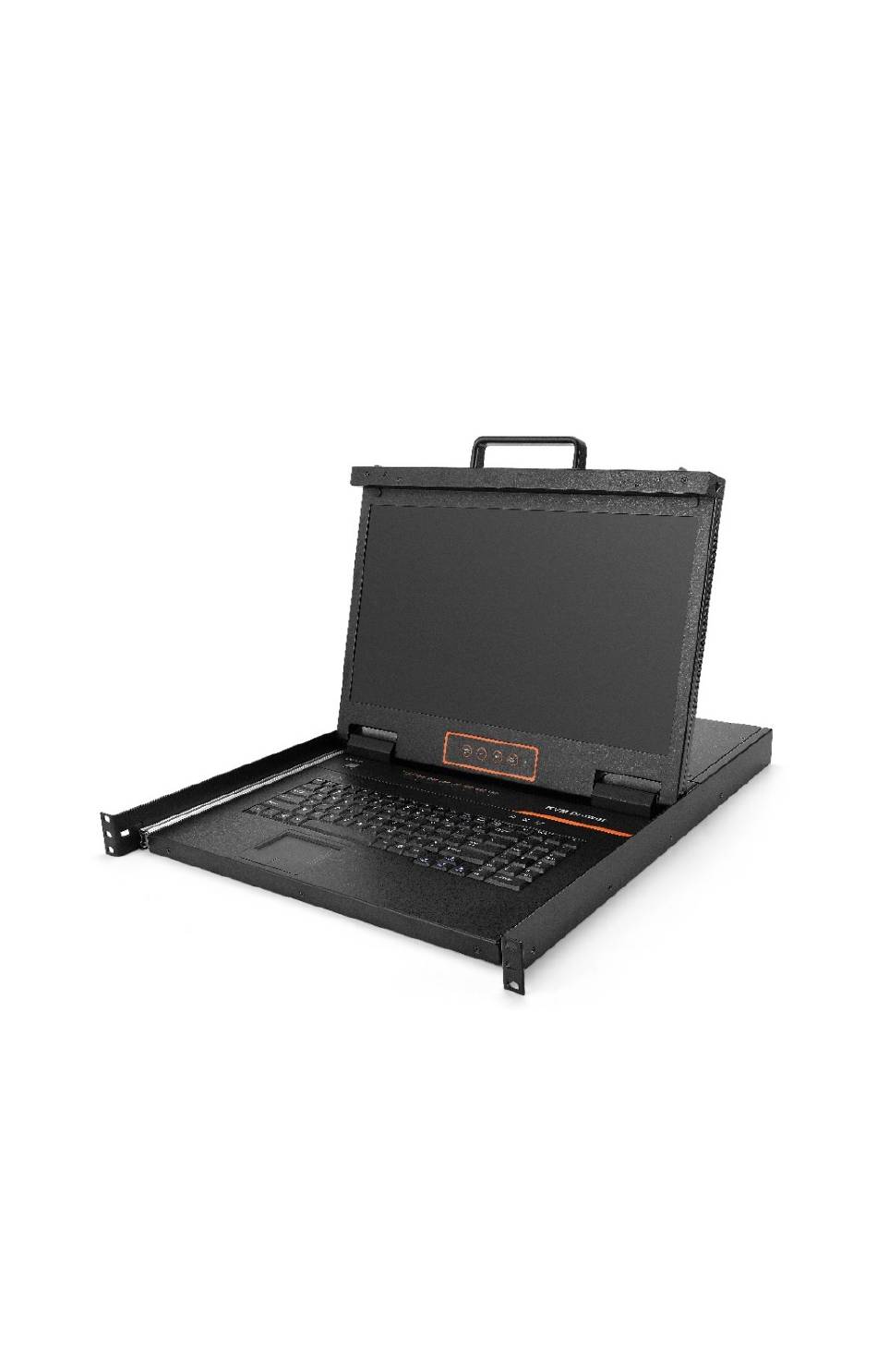

- Page 1 Rackmount KVM Console （8 Port /16 Port/24 Port /32 Port） User Manual www.kinankvm.com @all right reserved Shenzhen Kinan Technology Co., Ltd Print date: 2024 / 01 Version: V2.4 ...
-
Page 2: Table Of Contents
8 Port / 16 Port / 24 Port / 32 Port User Manual Contents Overview ...................... 2 Description .................... 2 Features ... -
Page 3: Overview
8 Port / 16 Port / 24 Port / 32 Port User Manual Overview Description The KVM console integrates multiple‐port CAT5 KVM switches in a 1U height console. Multiple computers can be controlled from the single monitor‐keyboard‐mouse console. ... - Page 4 8 Port / 16 Port / 24 Port / 32 Port User Manual Front View 1‐1.1 front view 1．LCD Module 2．Rear Bracket Slot 3．OSD Controls ...
-
Page 5: Structure And Size
8 Port / 16 Port / 24 Port / 32 Port User Manual Structure and Size 1‐1.2 Size ... -
Page 6: Rear View
8 Port / 16 Port / 24 Port / 32 Port User Manual Rear View CONSOLE CONSOLE CONSOLE CONSOLE 1‐1.3 ... -
Page 7: Hardware Installation
8 Port / 16 Port / 24 Port / 32 Port User Manual Hardware Installation Rack Mounting A standard rack mounting kit is provided to mount the switch in a depth of 686‐770mm a standard 19”rack. For other mounting distance, the rear brackets need to be customized accordingly ... -
Page 8: Kvm Installation Diagram
8 Port / 16 Port / 24 Port / 32 Port User Manual KVM Installation Diagram 1) Make sure the KVM console has been connected to the ground.( ①) 2) Connect any available KVM port and KVM adapter with CAT5 cables.( ②) 3) Connect the adapter to the KVM and the PC or server(③) 4) Plug the female port of the power cable in the KVM power socket, and plug the male port ... -
Page 9: Kvm Adapter
8 Port / 16 Port / 24 Port / 32 Port User Manual KVM Adapter PS/2 Adapter Model No. Keyboard/Mouse Explanation KCM‐1100P ... -
Page 10: Operation
8 Port / 16 Port / 24 Port / 32 Port User Manual Operation Release the release catch; UNLOCK UNLOCK UNLOCK UNLOCK ... - Page 11 8 Port / 16 Port / 24 Port / 32 Port User Manual Closing the console Close the LCD display panel and the power automatically shut down. Push the release catch in the direction of the arrow; pull the LED panel all the way in until it automatically locks up. 2‐2.4 unlocking the console ...
-
Page 12: Led Operating Instructions
8 Port / 16 Port / 24 Port / 32 Port User Manual LED Operating Instructions Figure 3‐1.1 LED front views No. Components Function 1‐16 ... - Page 13 8 Port / 16 Port / 24 Port / 32 Port User Manual Figure 3‐1.2 32 Port LED front views No. Components Function Switching from port 1 to port 32 ...
-
Page 14: Osd Operation
8 Port / 16 Port / 24 Port / 32 Port User Manual OSD Operation Double click the right button of the mouse or double click hotkey【Scroll Lock】 to invoke below OSD main menu. You can customize the OSD hotkeys; find more details in OSD function instructions. ... -
Page 15: Osd Functions
8 Port / 16 Port / 24 Port / 32 Port User Manual OSD Functions Menu Keys Submenu/Explanation Set User login‐Set User login account and password Set accessible‐Set access permissions ADM F1 ... -
Page 16: F1-Adm
8 Port / 16 Port / 24 Port / 32 Port User Manual F1‐ADM Menu Overview Operating instructions 1) Press【F1】or 【←】【→】enters the F1 submenus. 2) Press ... - Page 17 8 Port / 16 Port / 24 Port / 32 Port User Manual 2. Set Accessible—press [Enter] to select Set Accessible, then below menu appears: (diagram 4‐1.3) ...
- Page 18 8 Port / 16 Port / 24 Port / 32 Port User Manual 3. BRC Mode Off ‐ Press [Enter] to enter the BRC mode, enter the main menu, press 【F7】 to add or delete a port that need broadcast function. When BRC mode is effect, a speaker symbol appears in QV column. (See below diagrams). While BRC mode is in effect, we can synchronous operate multiple computer ports. Note: While BRC mode is in effect, the mouse is forbidden to use. ...
-
Page 19: F2-Scan
8 Port / 16 Port / 24 Port / 32 Port User Manual F2‐Scan Menu Overview Operating instruction Press【F2】or 【←】【→】enters the F2 submenus. ... -
Page 20: F3-Set
8 Port / 16 Port / 24 Port / 32 Port User Manual F3‐Set Menu Overview Operating instructions Press【F3】or 【←】 【→】enters the F3 submenus. 2) ... - Page 21 8 Port / 16 Port / 24 Port / 32 Port User Manual OSD Hotkey Operation Operating instruction Press【F3】and move the highlight bar with【↓】 to select “OSD Hotkey ”submenu. Press ...
-
Page 22: F4-Tool
8 Port / 16 Port / 24 Port / 32 Port User Manual F4‐Tool Menu Overview Operating instructions 1) Press【F4】or 【←】 【→】enters the F4 submenus. 2) Press 【↑】... -
Page 23: F6-Edit Port Names
8 Port / 16 Port / 24 Port / 32 Port User Manual F6‐Edit port names Select the port with【↑】【↓】 key; Press F6 and key in the new name or modify the old one, then press Enter to ... -
Page 24: Appendix
8 Port / 16 Port / 24 Port / 32 Port User Manual Appendix Specifications(17.3”) Model CW1708 CW1716 CW1724 CW1732 Direct ... -
Page 25: Specifications(18.5")
8 Port / 16 Port / 24 Port / 32 Port User Manual Specifications(18.5”) Model LC2808 LC2816 LC2824 LC2832 Direct 8 16 ...
