- Page 1 Matrix KVM over IP Console (8 Port /16 Port/24 Port/32 Port) User Manual www.kinankvm.com @all right reserved Shenzhen Kinan Technology Co., Ltd Print date: 2019 / 12 Version: V1.3...
-
Page 2: Table Of Contents
User Manual 8 Port /16 Port/24 Port/32 Port Table of Contents 1. Product Overview ..................... 2 1.1 Introduction ....................2 1.2 Features ...................... 2 1.3 Appearance ....................4 2. Installation and Start-up .................... 6 2.1 Rack Mounting .................... 6 2.2 Install KVM Components ................7 2.3 Opening the Console .................. -
Page 3: Product Overview
User Manual 8 Port /16 Port/24 Port/32 Port 1. Product Overview 1.1 Introduction The IP-based KVM (IP-KVM) redirects the local keyboard, mouse and video data to a remote management console. The operator can safely manage one or many computers locally at the server site or remotely via a standard internet browser. - Page 4 User Manual 8 Port /16 Port/24 Port/32 Port Keyboard and mouse emulation to ensure the normal booting Auto scan feature for monitoring user-selected computer Hot pluggable – add or remove computers without having to power down the switch Remote Console ...
-
Page 5: Appearance

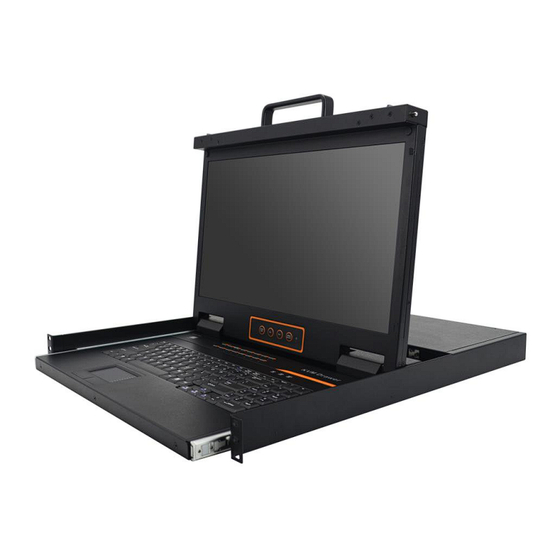

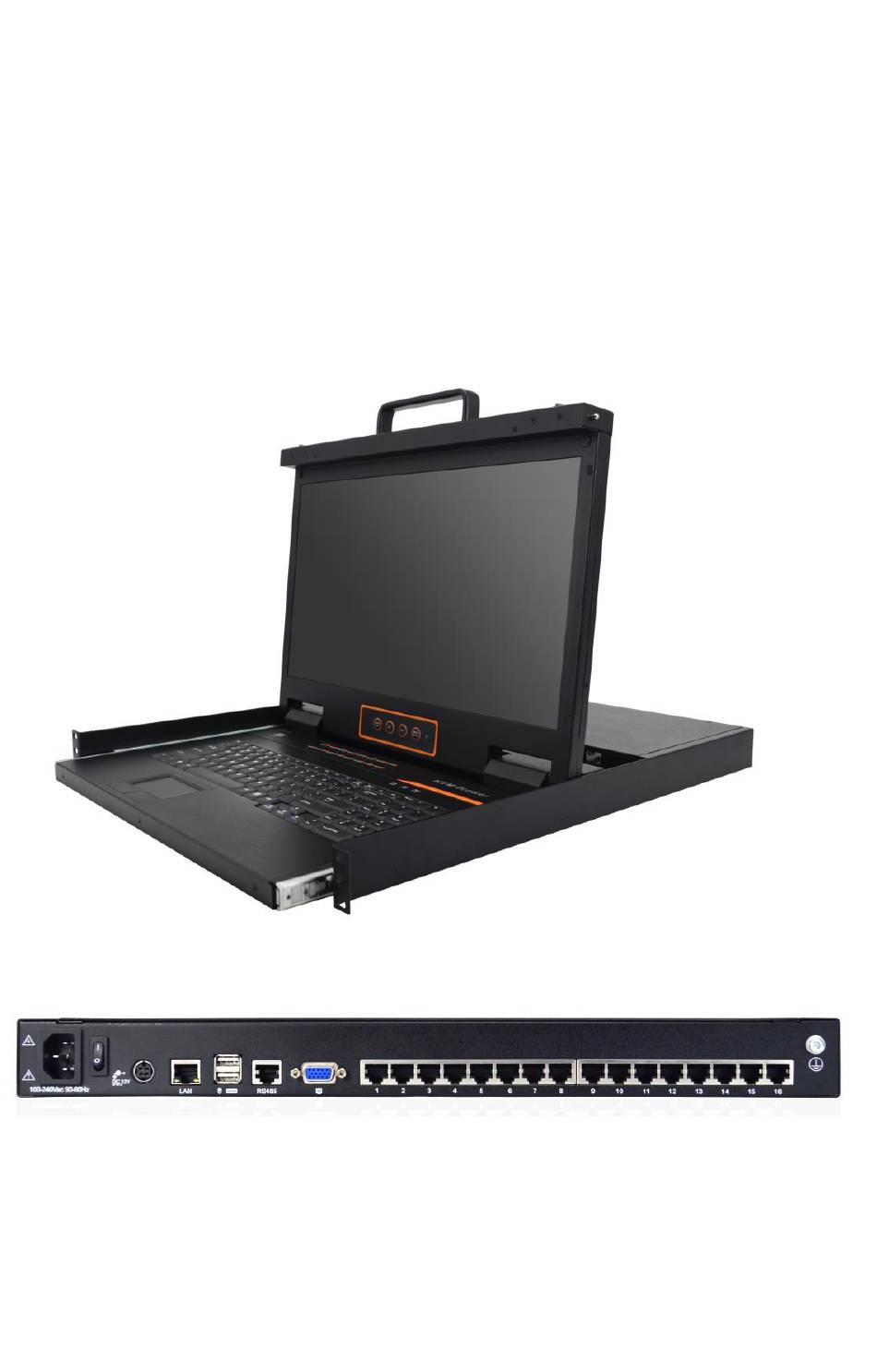

User Manual 8 Port /16 Port/24 Port/32 Port 1.3 Appearance Front View Figure 1.1 Front view LED Monitor Rear Bracket Slot LED OSD Controls Front Bracket Keyboard Touchpad Handle Release Catch Display Panel 10. Switch LED - 4 -... - Page 6 User Manual 8 Port /16 Port/24 Port/32 Port Structure and Size (18.5) Figure 1.2 18.5” console size dimensions Rear View RS485 RS485 Figure 1.3 Rear view Ground Screw Power Input (AC/DC) Power Switch LAN Port USB Port RS485 Port Monitor Port PC Connecting Port - 5 -...
-
Page 7: Installation And Start-Up
User Manual 8 Port /16 Port/24 Port/32 Port 2. Installation and Start-up 2.1 Rack Mounting A standard rack mounting kit is provided to mount the switch in a depth of 620-720mm (18.5”) in a standard 19” rack. For other mounting distances, the rear brackets need to be customized accordingly. -
Page 8: Install Kvm Components
User Manual 8 Port /16 Port/24 Port/32 Port 2.2 Install KVM Components Figure 2.2 Installation diagram Installation Steps: Make sure the KVM console has been connected to the ground. Connect the KVM adapter to the PC or Server. Connect the KVM adapter to the KVM port with a CAT5 cable. You can remote control the KVM switch via IP. -
Page 9: Opening The Console
User Manual 8 Port /16 Port/24 Port/32 Port 2.3 Opening the Console Release the release catch; UNLOCK UNLOCK UNLOCK UNLOCK Figure 2.4 Unlocking Note: The release lock can only do horizontal locking, it doesn’t bear any load. Pull the KVM console all the way out until it clicks into place; Rotate the LCD module all the way back to expose the LCD screen;... -
Page 10: Closing The Console
User Manual 8 Port /16 Port/24 Port/32 Port LCD panel is powered on when the power LED is green. Power on the computer or server after power on the KVM. 2.4 Closing the console Close the LCD display panel and the power automatically shut down. ... -
Page 11: Led Operation
User Manual 8 Port /16 Port/24 Port/32 Port LED Operation 3.1 LED Functions Figure 3.1 LED front views Components Function 1-16 Switching freely from port 1 to port 16 Press 【1】and 【2】 at the same time for three Reset seconds resets the keyboard and mouse Press 【... - Page 12 User Manual 8 Port /16 Port/24 Port/32 Port Figure 3.2 32 Port LED front views Components Function Switching from port 1 to port 32 Port 8 : If you want to switch to Port 8, press【8】, , then press “Enter”, and the LED light displays 0~9 +Enter you will come to Port 8.
-
Page 13: Operating The Monitor
User Manual 8 Port /16 Port/24 Port/32 Port 3.2 Operating the Monitor Figure 3.4 Monitor adjust menu buttons The LED OSD allows you to set up and configure the LED display. Buttons Functions MENU SELECT Brings up the main menu. Exits the current menu and returns to the previous menu or EXIT/AUTO exits the LED OSD. -
Page 14: Key Combination Function
User Manual 8 Port /16 Port/24 Port/32 Port 3.3 Key Combination Function If you want to set other hotkeys to pop up the UI interface or key combination switch, set up the via the local console, 【System Settings】> 【Device info】 Double click【L_Ctrl】... -
Page 15: User Interface Operation
User Manual 8 Port /16 Port/24 Port/32 Port 4. User Interface Operation login UI control menu User Name: admin Password: admin After logging in the device, you can see the connection status of the device port. In the port list, Click the “Connect"... -
Page 16: User
User Manual 8 Port /16 Port/24 Port/32 Port 4.1 User User management mainly set up for user& user group adding, delete and modifying, user password modification, user group permissions and so on. If the user do not have user management authority, the user cannot access to user management interface. The user in this section is who have the user management authority. - Page 17 User Manual 8 Port /16 Port/24 Port/32 Port Note: In this window, “*” is required content User name: user name can contains only low case letters, number and “_” Enter password: without strong password protection, the password can only compose of 1-16 letters, numbers or special characters (-@.$! _)；With strong password protection, the password should be filled in according to the rules of strong password protection.
- Page 18 User Manual 8 Port /16 Port/24 Port/32 Port User group name: it contains only low case letter, number and “_” Authority：mainly refers to management authority and operation authority, click show more, authority menu appears(shown in picture above), click show less, authority menu disappears •...
- Page 19 User Manual 8 Port /16 Port/24 Port/32 Port User name: user name can contains only low case letter, number and “_” Enter password：without strong password protection, the password can only compose of 1-16 letters, numbers or special characters (-@.$! _)；With strong password protection, the password should be filled in according to the rules of strong password protection.
-
Page 20: System
User Manual 8 Port /16 Port/24 Port/32 Port 4.2 System Network settings IPv4 address setting: • IP address: preset IP address • Subnet mask: Generally, it should be consistent with other devices in the network. • Default gateway: Generally, it should be consistent with other devices in the network. •... - Page 21 User Manual 8 Port /16 Port/24 Port/32 Port Date time System time setting: • Customized time: manual setting • Synchronize with the NTP server: the system automatically updates the time according to the time Equipment information - 20 -...
-
Page 22: Security
User Manual 8 Port /16 Port/24 Port/32 Port Encoding parameters 4.3 Security Security Settings • Login restriction: user name login restriction • Single sign on restriction: if one user name is logged in, it can no longer log in with this user name, if it is selected, you can log in with the user name •... - Page 23 User Manual 8 Port /16 Port/24 Port/32 Port • Login lockout • Lockout forbidden: when it is selected, lockout will be canceled • Account lockout: account setting for login attempts failed • Time lockout：when account logging attempts over the setting times, the time for lockout •...
-
Page 24: Maintenance
User Manual 8 Port /16 Port/24 Port/32 Port 4.4 Maintenance Provide system maintenance tools such as test tools, data backup and restart Backup & Restore Backup: backup current system settings Restore: restore the last backup of system Factory reset: Restore to factory state (KVM must be restarted to take effect) Ping Update - 23 -... -
Page 25: Remote Control
User Manual 8 Port /16 Port/24 Port/32 Port 5. Remote Control 5.1 Configure the Target Server Before installing and using the IP-KVM Switch, connect and configure the target server first. Refer to below configuration instructions: • The digital KVM switch supports below two mouse mode: •... - Page 26 User Manual 8 Port /16 Port/24 Port/32 Port Please follow the steps above to finish the setting. • Set up the display of the target server under Windows XP, Windows 2003, Windows 2008 Start—>Control Panel—> [Hardware]—>Display Please follow the steps above to finish the setting. •...
-
Page 27: Remote Web Interface Settings
User Manual 8 Port /16 Port/24 Port/32 Port 5.2 Remote WEB Interface Settings Install and open IE browser, click top-right settings→【Internet Options】 Click【Security】→【Custom Level】 - 26 -... - Page 28 User Manual 8 Port /16 Port/24 Port/32 Port 【ActiveX controls and plugins】 - 27 -...
- Page 29 User Manual 8 Port /16 Port/24 Port/32 Port Click【Advanced】, find 【Allow software to run or install even if the signature is invalid】 and select it. - 28 -...
-
Page 30: Log In
User Manual 8 Port /16 Port/24 Port/32 Port 5.3 Log in Default Items Default Value User name admin Password admin IP address 192.168.1.167 Notice: For security, please change the password after the first login. Differentiate between capital and lowercase letters. After connecting the device, open the web browser: http:// 192.168.1.167 User Name: admin Password: admin... -
Page 31: Video Control Interface Menu
User Manual 8 Port /16 Port/24 Port/32 Port Close • “Connect” shows the target KVM is connected to the KVM port; users can access to the target anytime. • “Close” shows that the KVM is not connected to the KIM adapter or the target server, or the target server is not boot up. - Page 32 User Manual 8 Port /16 Port/24 Port/32 Port 【Single Mouse】 【Adaptive Window】 【Source Video params】 【Full Screen】 Hide or Show Toolbar When the video window starts, the toolbar is always displayed by default. Click the iron toolbar will automatically hide. When the mouse move out (into) from the toolbar, it hides shows).
- Page 33 User Manual 8 Port /16 Port/24 Port/32 Port • Relative and absolute modes, latest version only support absolute mode Full Screen Setting Full Screen Zoom: When unselected, the video window will spread the video screen full of the remote computer screen in the full screen state; when selected, if the target server’s resolution is different from the remote user computer’s resolution (the resolution of the general target server is less than the resolution of the remote user computer), the video plug-in will display the screen in the middle of the screen according to the resolution of the...
- Page 34 User Manual 8 Port /16 Port/24 Port/32 Port • Port number: Video port number • Manual calibration resolution: When the resolution of the target server is not consistent with the resolution of the video window, it can manually calibrate the resolution after calibration •...
- Page 35 User Manual 8 Port /16 Port/24 Port/32 Port Click blank input box, virtual keyboards appears, and the key clicked on the virtual keyboard will be displayed in the input box. Send [send Ctrl+Alt+Del] Keyboard Macro: click this button, the target server will receive shortcut key. Send Ctrl+Alt+Del.
- Page 36 User Manual 8 Port /16 Port/24 Port/32 Port Source video params Optimum size The initialization size of the video window is 1024x768, when click this button, the video window will adjust the size of the window according to the resolution of the target server. Full Screen The video window enter full screen mode - 35 -...
-
Page 37: Ip Menu Option
User Manual 8 Port /16 Port/24 Port/32 Port IP Menu Option 6.1 User Management User management mainly set up for user & user group adding, delete and modifying, user name password modification, user group permissions and so on. If the user do not have user management authority, the user cannot access to user management interface. - Page 38 User Manual 8 Port /16 Port/24 Port/32 Port Note: In this window, “*” is required content User name: user name can contains only low case letter, number and “_” Enter password：Without strong password protection, the password can only compose of 1-16 letters, numbers or special characters (-@.$! _)；With strong password protection, the password should be filled in according to the rules of strong password protection.
- Page 39 User Manual 8 Port /16 Port/24 Port/32 Port Edit user Click【A1】, edit user window pop up User group list User group list interface：list all registered users, you can see more by page turning • User group name search • Input user group name, it shows related user groups which make it convenient when you have a large number of users - 38 -...
- Page 40 User Manual 8 Port /16 Port/24 Port/32 Port Add user group Click【add】button, the window below appears User group name: it contains only low case letter, number and “_” Authority：mainly refers to management authority and operation authority, click show more, authority menu appears(shown in picture above), click show less, authority menu disappears •...
- Page 41 User Manual 8 Port /16 Port/24 Port/32 Port ： Note SUPER_USER is system allocated which cannot be deleted Edit user group Click【1】edit user group window pop up; for specific operation, please check “add user group” Change Password The passwords which is using for logged user Old passwords: The passwords you are using New passwords: Without strong password protection, the password can only compose of 1-16 letters, numbers or special characters (-@.$! _)；With strong...
-
Page 42: System Settings
User Manual 8 Port /16 Port/24 Port/32 Port 6.2 System Settings Network Setting IPv4 Address Setting: • IP address: preset IP address • Subnet mask: Generally, it should be consistent with other devices in the network. • Default gateway: Generally, it should be consistent with other devices in the network. •... - Page 43 User Manual 8 Port /16 Port/24 Port/32 Port System Time Setting: • Customized time: manual setting • Synchronize with the NTP server: The system automatically updates the time according to the time server • Time zone setting: choose time zone Encoding Parameters - 42 -...
-
Page 44: Safety Management
User Manual 8 Port /16 Port/24 Port/32 Port 6.3 Safety Management Security Settings Login Restriction: User name login restriction • Single sign on restriction: If one user name is logged in, it can no longer log in with this user name, if it is selected, you can log in with the user name •... -
Page 45: System Maintenance
User Manual 8 Port /16 Port/24 Port/32 Port Encryption scheme • Local information encryption scheme: three encryption schemes and one un- encryption scheme • Encryption scheme is applied to KVM as virtual media: applied when it is selected Audit Log 6.4 System Maintenance Provide system maintenance tools such as test tools, data backup and restart Backup &... - Page 46 User Manual 8 Port /16 Port/24 Port/32 Port • Backup: Backup current system settings • Restore: Restore the last backup of system • Factory Reset: Restore to factory state (KVM must be restarted to take effect) Ping Host Test network connection state to target server Input IP address and click【ping】...
-
Page 47: Appendix
User Manual 8 Port /16 Port/24 Port/32 Port 7. Appendix 7.1 Specifications (18.5”) Model HT2808 HT2816 HT2824 HT2832 Direct Computer Connections Port Selection Keyboard, Mouse Button, UI, Web Model FHD TFT 18.47″ View Area Optimum Resolution 1920×1080@60Hz LCD Monitor Color 16.7 M... -
Page 48: Grounding Requirements
User Manual 8 Port /16 Port/24 Port/32 Port 7.2 Grounding Requirements Make sure the KVM and the devices that connected to KVM are all connected to the ground. To improve the device safety, please make sure the device is connected to the ground and use the STP cable to connect the device.
