Summary of Contents for KinAn XW1602

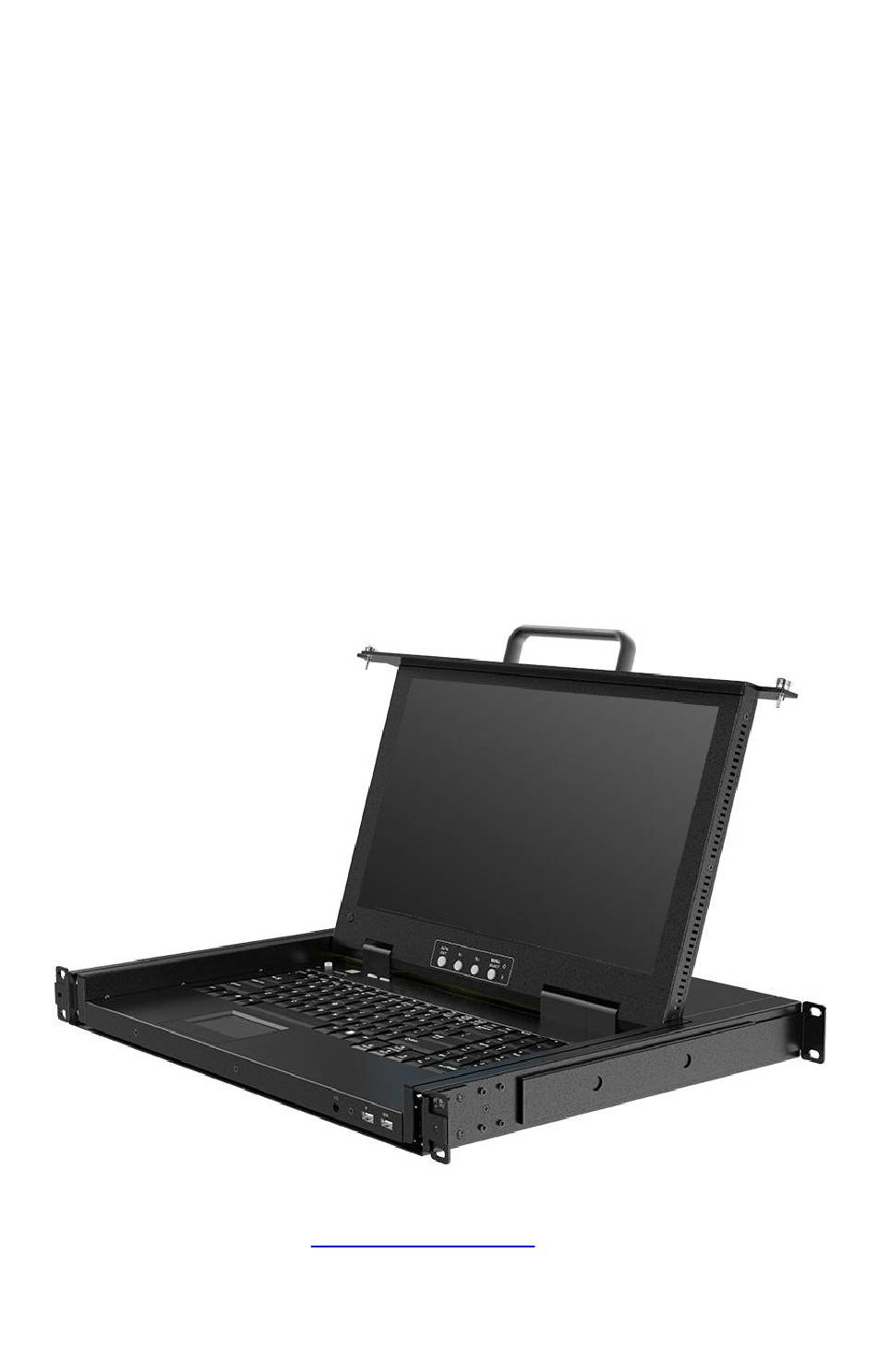

- Page 1 1U Short Depth Rack Mount 15.6″LCD KVM Console (XW1602) User Manual www.kinankvm.com @all right reserved Shenzhen Kinan Technology Co., Ltd. Printing date：2022/03 Version： V1.2...
- Page 2 User Manual Overview The XW1602 1U rackmount console is the ideal solution for ETC specialized rack, 5G rack, network specialized rack and standard server rack. Featuring an integrated 15.6” LCD display, full-99 key keyboard and touchpad, all in a 1U rack-mountable housing, it supports the shortest mounting depth: 360mm.
-
Page 3: Front View
XW1602 User Manual Front view 1．LCD Display 7．Handle 2．Rear Bracket 8．Fixing Screw 3．LED OSD Controls 9．Display panel 10. Switching LEDs 4．Front Bracket 11. USB port 5．Keyboard 6．Touchpad Connection Diagram To ensure signal integrity and simplify cable layout, we strongly recommend you using high quality cables with different length as shown in above table. -
Page 4: Rack Mounting
XW1602 User Manual Rack Mounting A standard rack mounting kit is provided to mount the LCD console in a depth of 266-400mm in a standard 19” rack. (For other depth, the rear bracket can be customized accordingly, check figure 2-1.1 and 2-1.2) With one person hold the switch in place and the other person slides the L bracket into the switch’s side mounting brackets from the front to the back, then screws the brackets to the... - Page 5 XW1602 User Manual For depth: 300-400mm, move back the rear brackets before installation. 2-1.3 rack mounting (3) For rack without rear vertical frame, need to install L stand. 2-1.4 rack mounting (4) - 4 -...
-
Page 6: Opening The Console
XW1602 User Manual Opening the console Power on the KVM after connection Pull it out, and the rails will be locked automatically; Release the front panel screw Loosen 2-2.1 unlocking Rotate the LCD module all the way back to expose the LCD screen, the LCD module ... - Page 7 XW1602 User Manual LED Instructions Components Function Switching from port 1 to port 2 Indicator LEDs are built into the switches, the online LED light is on the left and the selected LED light is on the right. Port Selection 1）An online LED light(green) indicates that the KVM has...
- Page 8 XW1602 User Manual Hot Key Invoke hotkey: double click 【L_Ctrl】 + the corresponding function key Hotkeys Function Switch to port 1 【L_Ctrl】+【L_Ctrl】+【1】 Switch to port 2 【L_Ctrl】+【L_Ctrl】+【2】 Continuously switch to the previous port 【L_Ctrl】+【L_Ctrl】+【↑】 Continuously switch to the next port 【L_Ctrl】+【L_Ctrl】+【↓】...
-
Page 9: Specifications
XW1602 User Manual Specifications Model No. XW1602 Direct Computer connections Port emulation Keyboard, mouse PS/2，USB LCD model FHD TFT View area 15.6 " Optimum 1920x1080@60Hz resolution LCD monitor Display color 16.2M Brightness 250cd/m²（ T y p ） Contrast ratio 800 : 1 （ T y p ）...
