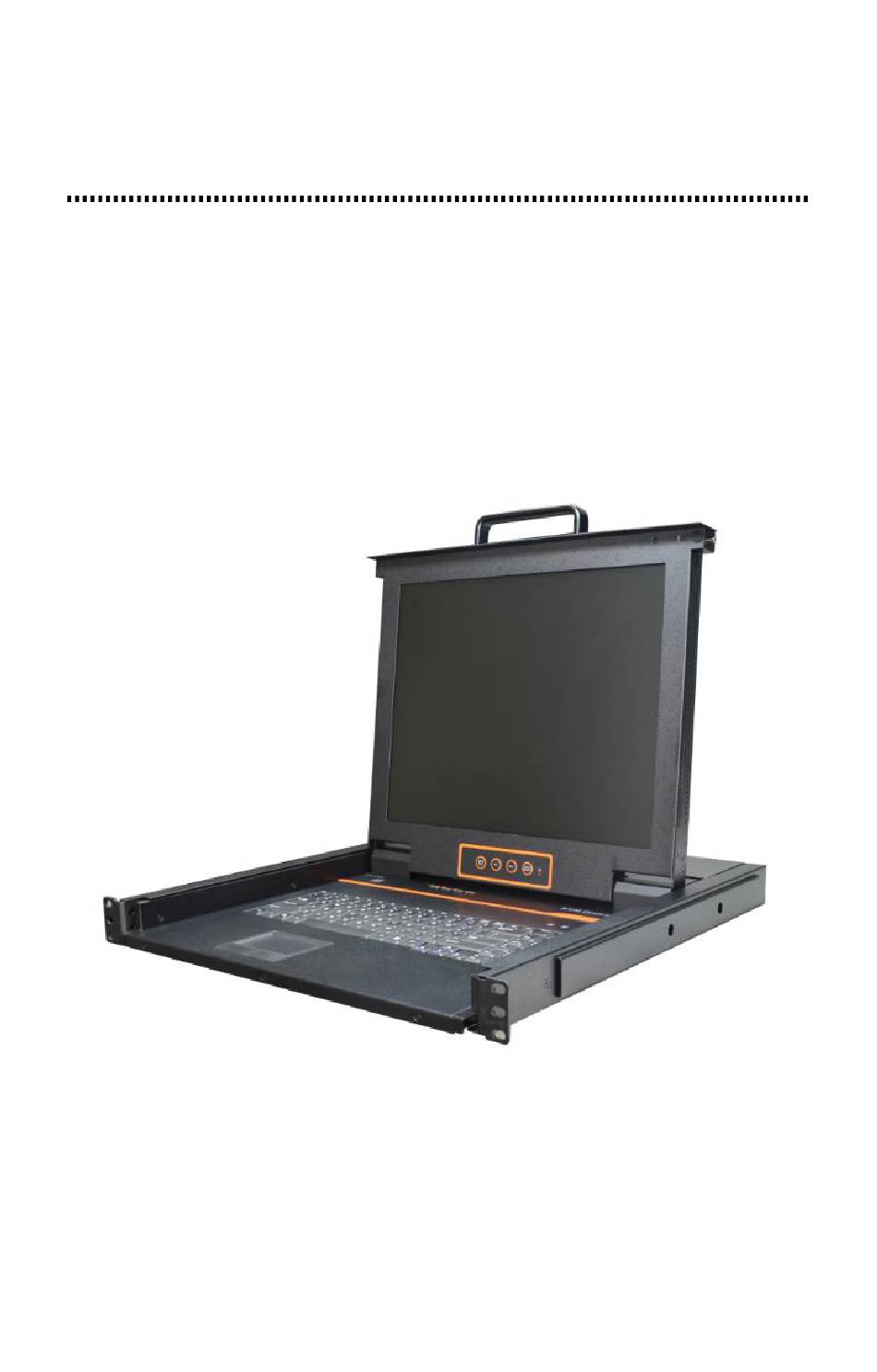

- Page 1 Rackmount LCD Console (4 Port) User Manual Printing date: 2022/03 Version: V2.0...
- Page 2 4 Port User Manual Product Description The KVM console integrates multiple ports KVM switches in a 1U height console. It can control multiple computers with a set of devices including monitor, keyboard and mouse, thus saves much cost and space to separately equip keyboard, mouse and monitor for every computer.

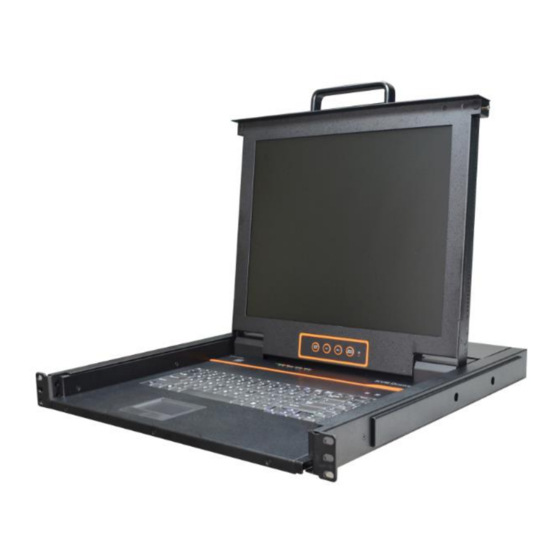

- Page 3 4 Port User Manual Product Overview Figure 1-1 front view 1. LCD monitor 6. Touchpad 2. Rear bracket 7. Handle 3. OSD controls 8. Release lock 4. Front bracket 9. Display panel 5. Keyboard 10. Switching LEDs Figure 1-2 1. Ground connection screw 2.
- Page 4 4 Port User Manual Installation 1. Make sure the KVM has been connected to the ground (① in the diagram) 2. Connect the KVM with the computer according to ② in the diagram 3. Connect power cable to KVM port as shown in ③in the diagram 4.
- Page 5 4 Port User Manual 3) Rotate the LED module all the way back to expose the LED screen, the LED module can be rotated up to108°. Best Resolution : 1280x1024@60Hz Figure 2-2 rotate angle of the console 4) Power on the KVM, the power LED will turn to green after power on 5) Power on computer or server after power on KVM and you will see green light at each port.
- Page 6 4 Port User Manual LED OSD Configuration The LED OSD allows you to set up and configure the LED display. Buttons Functions Press this button invokes the menu function and MENU SELECT brings up the main menu. Press this button exits the current menu and returns to the previous menu or presses this EXIT/AUTO button exits the LED OSD.
- Page 7 4 Port User Manual Hot Key Operations Press【L_Ctrl】 key twice, you can use the hot keys after hearing a warning sound. Keyboard mode: The keyboard will exit the hot key mode if no operation in 2 seconds. See below hot keys operation instructions: Press【L_Ctrl】...
- Page 8 4 Port User Manual Specifications Model No 4 Port Function Direct Computer connections Port Keyboard, mouse PS/2，USB emulation LED model SXGA TFT View area 17 " Optimum 1280×1024@60Hz resolution LED monitor Display color 16.7 M Brightness 250cd/m²（ T y p ） Contrast ratio 1000 : 1 （...
