Overall Dimensions; Type Key; Self-Switching Thermal Motor Monitoring; Scope Of Delivery - Wilo PW BOOST OPTI Installation And Operating Instructions Manual

en
Max. particle size [mm]
Installation height max. [m]
Inlet and outlet size [inch]
Start-up pressure [bar]
Cut-off flow [l/min]
Max. total delivery head [m]
Rated delivery head [m]
Rated volume flow [l/min]
Rated self-priming level [m]
Max. self-priming level [m]
Weight [kg]
2.3

Overall dimensions

2.4

Type key

2.5 Self-switching thermal motor
monitoring
2.6

Scope of delivery

8
PW BOOST OPTI-200
30
16
15
6
8
13

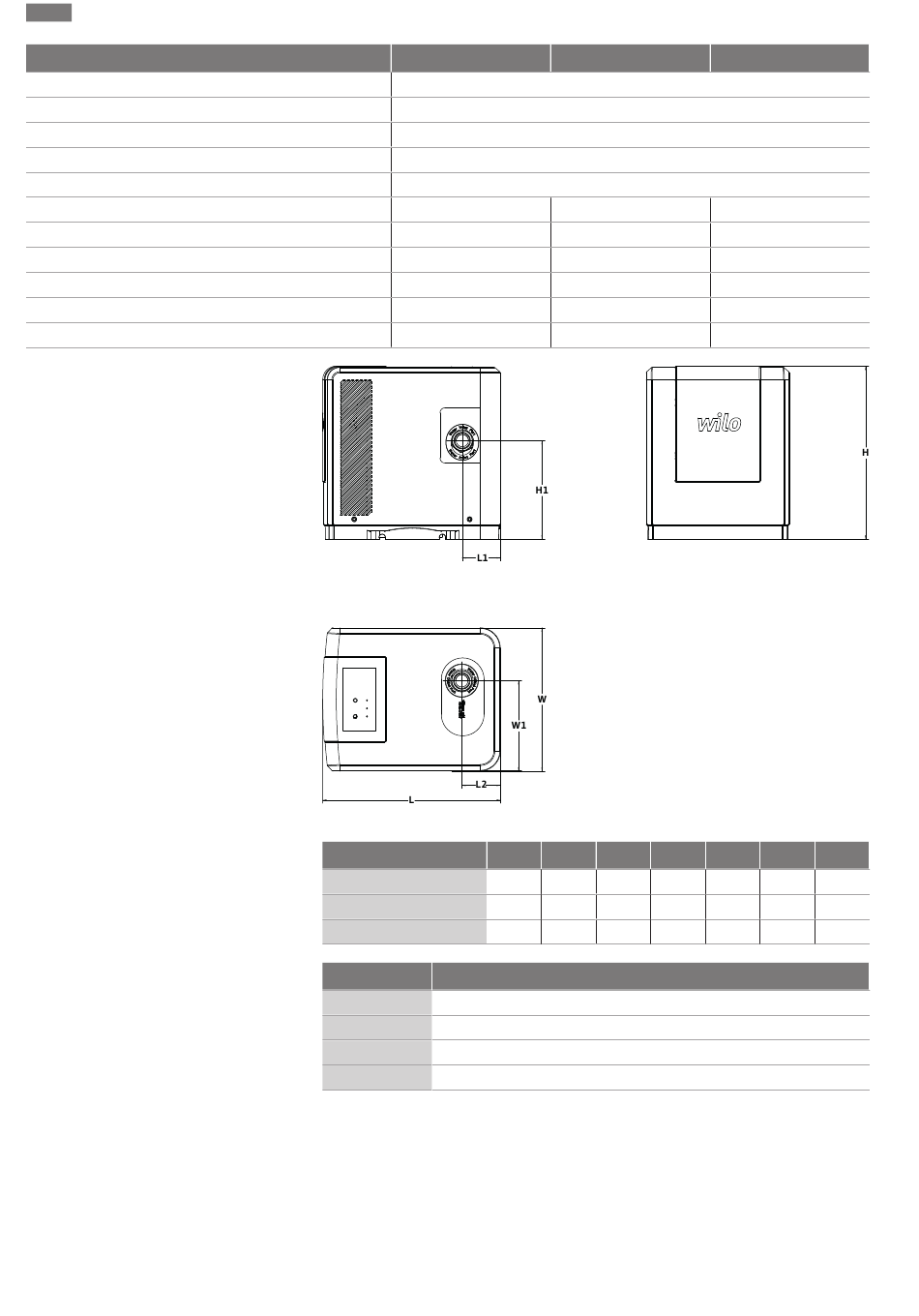

Fig. 2: Dimensions: PW BOOST OPTI
Pumpe model H
PW BOOST OPTI-200 345
PW BOOST OPTI-400 345
PW BOOST OPTI-600 345
Example: Wilo-PW BOOST OPTI-200
Wilo Brand
PW BOOST Product family/series (surface pump)
OPTI Product level
Rated power P
200
If the motor gets too hot, the pump switches off. When the motor has cooled down, the
pump restarts automatically.
• Pump
–
Mounted connection cable (1.5 m) with bare cable ends
–
One separate plug (China: type I, Thailand: tpye O, other countries: no plug)
• Installation and operating instruction
Installation and operating instructions • Wilo-PW BOOST OPTI • Ed.01/2024-06
