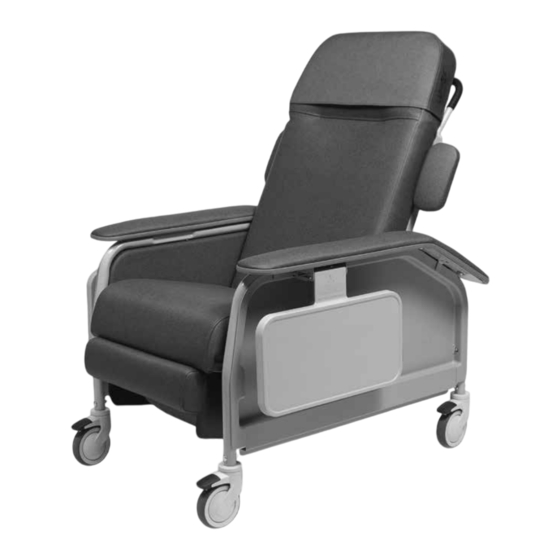

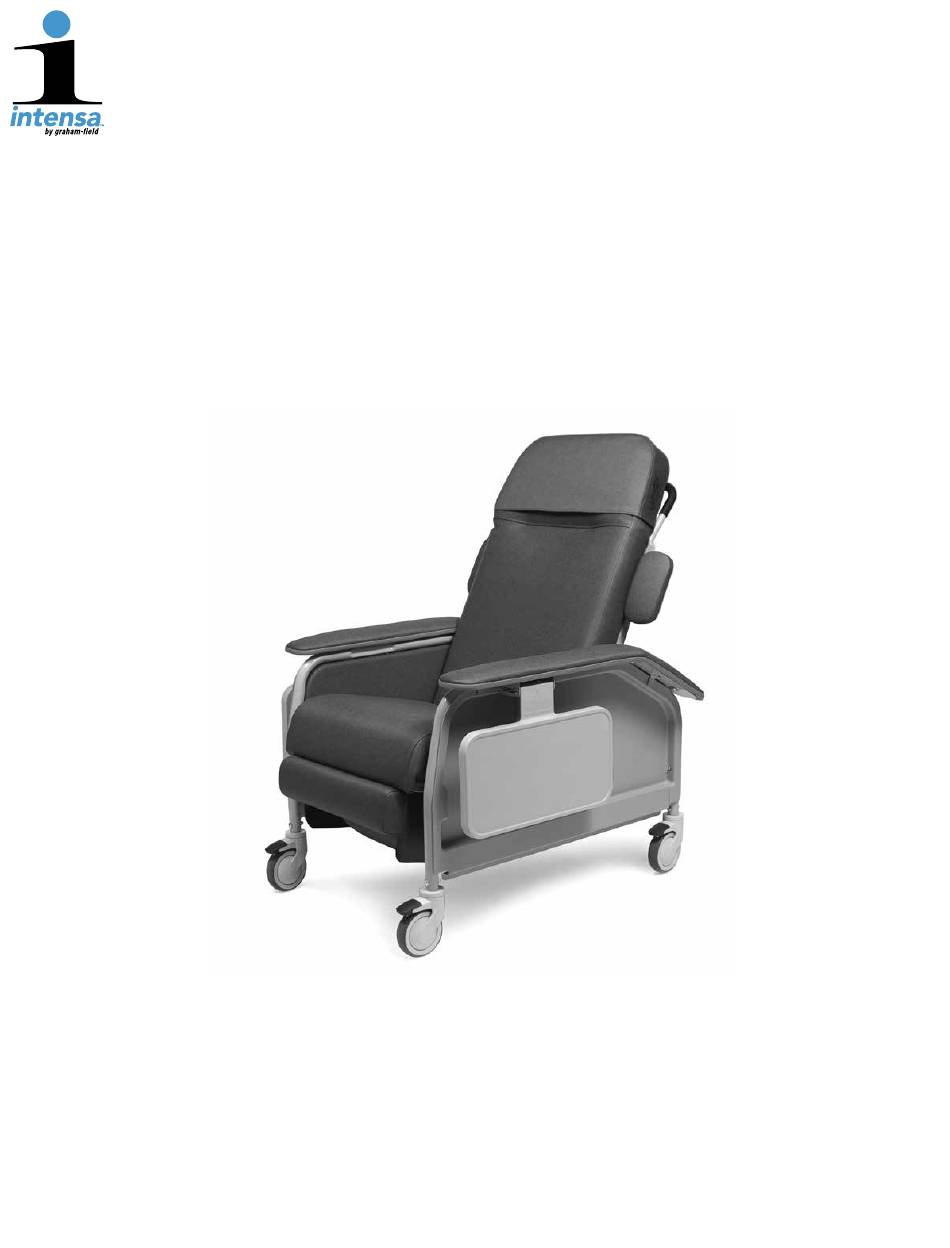

- Page 1 Series IN577RG Clinical Care Recliner Series IN577RGH Clinical Care Recliner with Heat and Massage Series IN577RGHO Clinical Care Recliner with Heat Only ASS EM BLY A ND O PE RAT I NG INSTRUCT I O NS SAVE THIS MANUAL FOR FUTURE USE. IN_IN577RG-INS-LAB-RevB22...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ..................................3 INTENDED USE ................................3 IMPORTANT SAFETY PRECAUTIONS—PLEASE READ BEFORE USE ..............3 WARNINGS ................................3 ASSEMBLY ....................................5 UNPACKING..................................5 PRODUCT DESCRIPTION ..............................5 UPHOLSTERED BACK ASSEMBLY........................5 OPERATION ..................................8 TENTE CASTERS................................8 ® SIDE TABLE OPERATION ..............................8 TO RAISE TABLE ..............................8 TO LOWER TABLE..............................8 SIDE PANEL OPERATION ..............................9 TO REMOVE SIDE PANEL ............................9 TO INSTALL SIDE PANEL............................9... -
Page 3: Introduction
DO NOT attempt to open the electronics or actuator or obtain local service; this will void the warranty and may result in damage to the unit. Consult your Graham Field authorized distributor for further information. - Page 4 For more information go to www.p65warnings.ca.gov/furniture. WARNING: Graham Field specifically disclaims responsibility for any bodily injury or property damage which may occur during any use which does not comply with federal, state or local laws or ordinances.
-
Page 5: Assembly
ASSEMBLY UNPACKING 1. Check for obvious damage to the carton or its contents. If damage is evident, please notify the carrier and your Graham Field authorized distributor. 2. Remove all packaging materials from recliner base. PRODUCT DESCRIPTION upholstered back upholstered seat... - Page 6 3. Remove cardboard shipping retainers and tape from around gas spring cylinder. Rotate the gas spring hinge section so that it is perpendicular to the upholstered back, as shown at right. gas spring hinge Rotate HInge panel tabs side panel 4.
- Page 7 8. Raise the upholstered back to vertical position. Tuck the plastic skirt at rear of upholstered back behind cross brace of seat frame. Align the hinges at the bottom of the gas spring with the holes in the U-brackets on the seat frame cross brace.
-
Page 8: Operation
OPERATION WARNING: Disconnection of the Device: In case of emergency, always disconnect the device by removing the power cord plug from the power outlet. TENTE CASTERS ® WARNING: Casters must be locked at all times, except during transport. black actuator tab green actuator tab All Intensa Clinical Care Recliners now feature the latest design, all-plastic casters from TENTE. -
Page 9: Side Panel Operation
SIDE PANEL OPERATION panel tabs For easy cleaning and access to the side / side panel underside of the recliner, Intensa Clinical Care Recliners feature easy-to-remove side panels. To Remove Side Panel Depress the two push buttons located on the lower sides of frame. Pull side panel gently away and down from frame. -
Page 10: Third Position (Second Recline Position)
First Recline Position (TV Position) Third Position (Second Recline Position) The third position is the Second Recline Position and is also known as the “Full Recline” position. This position is ideal for patient treatment, rest and reading. To Achieve Third Position / Second Recline Position: Second Recline Position (Full Recline Position) •... -
Page 11: Gas Spring Troubleshooting Guide
GAS SPRING TROUBLESHOOTING GUIDE Info: The gas spring has been pre-adjusted at the factory. The gas spring on your recliner provides counterbalancing forces, and is self-locking for infinite, precise positioning. Unlocking the gas spring is controlled by actuating the lever located on the padded push handle on the back of the recliner, shown at right. -
Page 12: Recliners With Heat And Massage Or Heat Only Feature
DO NOT use substitute parts. Use only Intensa replacement parts. The use of non-Intensa replacement parts could cause personal injury, property damage, and void the warranty. WARNING: Graham Field assumes no responsibility for any damage or injury caused by improper assembly or use of this product. Description The Heat and Massage Unit offers three levels of seat and back heat, as well as a gentle or firm massage function for just the lower back or both lower and upper back;... -
Page 13: Heat And Massage / Heat Only Installation Instructions
Handheld Heat & Massage Power Cord Handheld Heat Only Power Cord Pendant Connectors Connector Pendant Connectors Connector Connector Connector Heat and Massage Feature — Heat Only Feature — Control Module and Transformer Unit Control Module and Transformer Unit Showing All Connections Correctly Made Showing All Connections Correctly Made 3. - Page 14 2. Remove the left side table, shown at right, from the recliner to ball lock pin left side table prevent damage to it during setup: Withdraw the ball lock pin, shown at right, and set ball lock pin and table aside. 3. Place a protective cover or drop cloth on your workbench or floor to protect the recliner frame finish and upholstery.
-
Page 15: Heat And Massage / Heat Only Unit Operation Instructions
Heat and Massage / Heat Only Unit Operation Instructions 1. Plug the power cord into any grounded outlet. Handheld Pendant Handheld Pendant Heat and Massage Heat Only 2. The Heat and Massage / Heat Only Unit is operated using the Handheld Pendant, shown above. HIGH HEAT PRESS 1 TIME MEDIUM HEAT... - Page 16 4. Heat and Massage MASSAGE Option: Press the MASSAGE switch to start this function. The Massage Function Settings are as follows: a) Press selector switch for Setting 1: Gentle Lower Back Massage. b) Press selector switch AGAIN for Setting 2: Firm Lower Back Massage. c) Press selector switch AGAIN for Setting 3: Gentle Upper and Lower Back Massage.
-
Page 17: Heat And Massage / Heat Only Unit Troubleshooting Guide
Plug the power supply AC cord into a live wall socket and operate the unit through all functions. b) If the handheld pendant or wire is damaged, notify Graham Field so that a handheld pendant can be sent for replacement. -
Page 18: Care And Maintenance
CARE AND MAINTENANCE WARNING: Inspect all components periodically and replace as needed. EVERY THREE MONTHS • Check and clean casters. • Tighten bolts in each leg that secure casters into frame. • Check caster brakes. • Check and clean lock recline mechanism. •... -
Page 19: Cdc Recommendations
Abrasion test results exceeding ACT Performance Guidelines are not an indicator of product lifespan. Multiple factors affect fabric durability and appearance retention. This information is not a guarantee and does not relieve the user from the responsibility of the proper and safe use of the product and all cleaning agents. The use of certain agents can be harmful to the surface appearance and lifespan of vinyl. - Page 20 • Follow proper procedures for effective uses of mops, cloths, and solutions. • Prepare cleaning solutions daily or as needed, and replace with fresh solution frequently according to facility policies and procedures. • Change the mop head at the beginning of each day and also as required by facility policy, or after cleaning up large spills of blood or other body substances.
-
Page 21: Disposal And Key To Symbols
Width with Both Side Tables in Upright Position 54" (137.2 cm) Shipping Weight 127 lb (57.6 kg) Maximum Weight Capacity 290 lb (131.5 kg), EVENLY DISTRIBUTED For complete technical specifications, please call the Graham Field Technical Support Group at 1.770.368.4700. IN_IN577RG-INS-LAB-RevB22 www.intensa.net... -
Page 22: Limited Warranty
LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (GF) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance. -
Page 23: Index
INDEX Assembly 5 Operation 8 Cable tension, adjusting 11 Product description 5 Care and maintenance 17 Caster, directional (swivel) 8 Recliner operation 9 Caster, locking 8 Caster operation 8 CAUTION statement, significance 3 Side panel, install 9 Side panel operation 9 Side panel, remove 9 Disposal 21 Side table, lower 8... - Page 24 Manufactured By: GF Health Products, Inc. One Graham-Field Way, Atlanta, GA 30340 GF Health Products, Inc. is an ISO 13485:2016 MDSAP Certified Company +1 770.368.4700 Information contained herein is subject to change without notice. The most current and complete product information can be found on our website. www.intensa.net | www.grahamfield.com ©...
