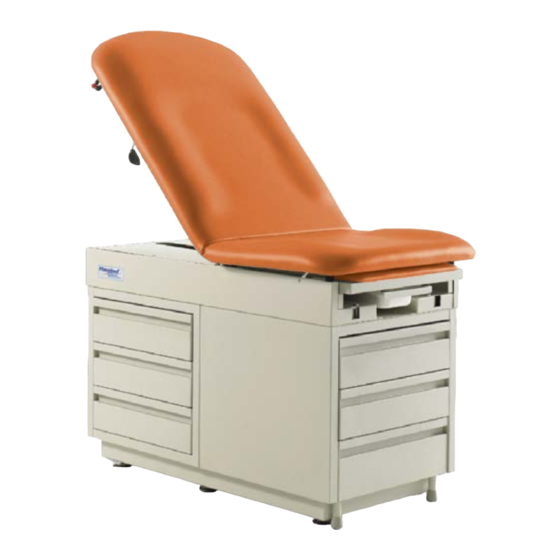

- Page 1 420 SERIES EXAMINATION TABLE MODELS 420 / 420-DW / 420-EO INSTALLATION AND OPERATION MANUAL 420-INS-LAB-RevA20 Read this manual before installing or operating your Examination Table. Save this manual for future use.
-
Page 2: Table Of Contents
CONTENTS 1 INTRODUCTION ..........................3 INTENDED USE ......................... 3 EQUIPMENT SYMBOL KEY ...................... 4 2 SAFETY PRECAUTIONS ........................ 5 WARNINGS ..........................5 3 FEATURES ............................7 EXAM TABLE COMPONENTS ....................7 4 HANDLING PROCEDURES ......................8 UNPACKING ..........................8 INSPECTION ..........................8 STORAGE .......................... -
Page 3: Introduction
Examination Table. This guide covers the use of the Intensa 420 Series Examination Table. Keep in mind that the basic safety procedures included in this manual are to be used as a guide only. You may find it necessary to develop your own unique methods for safely utilizing the Examination Table. -
Page 4: Equipment Symbol Key
EQUIPMENT SYMBOL KEY Symbol Meaning Refer to Manual Shock Hazard Protective Earth Ground Shipping Orientation Maximum Weight Capacity 500 lb (317 Kg) Evenly Distributed 420-INS-LAB-RevA20... -
Page 5: Safety Precautions
WARNINGS WARNING: Important! Read and understand these instructions before assembling or using the Intensa 420 Series Examination Table. If you do not understand any part of these warnings, cautions or instructions, contact a healthcare professional for direction in the use of this product. If the Intensa 420 Series Examination Table is not properly assembled, personal injury and damage to the Examination Table could result. - Page 6 WARNING: Unauthorized modification of the Examination Table or the use of non-Intensa replacement parts may change the structure of the table and could create a hazardous condition, which may result in serious injury and void the warranty. WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Page 7: Features
FEATURES EXAM TABLE COMPONENTS Paper Cutter Paper Roll Holder Back Angle Legrest Pull-Out Adjustment Lever Independent Procedure Tray (foot pad need not Pelvic Tilt Bar be removed to access procedure tray) Pass Thru Drawers Stirrups Storage Drawers Leveling Glides Pull-Out Foot Step Supports 800 lb (363 kg) 420-INS-LAB-RevA20... -
Page 8: Handling Procedures
HANDLING PROCEDURES Lift Area Lift Area UNPACKING WARNING: This exam table, as shipped, can weigh as much as 330 lb (150 kg) — use sufficient personnel to lift and remove the exam table from the shipping pallet for placement into final location. DO NOT attempt to remove the exam table from the shipping pallet or move it without assistance. Use proper lifting technique, and see illustration above for proper lifting area; neglect of these procedures could result in serious injury. s NOTICE: Do Not Use a knife or other sharp object to open packaging —... -
Page 9: Disposal
DISPOSAL WARNING: During normal use of this product, it could become contaminated and may present a biohazard to waste sites. This product may contain substances that could be harmful to the environment if disposed of in places (landfills) that are not appropriate according to local legislation. At the end of this product’s useful life, dispose of it in accordance with local requirements, or contact the manufacturer for advice. Recycle this product through your recycling facility or dispose of it in accordance with local regulations. -
Page 10: Installation
INSTALLATION WARNING: Do Not Use Stirrups , Legrest Pull-Out or Upholstery to lift, move or slide the table. Personal injury and damage to exam table could occur. WARNING: Unauthorized modification of the Examination Table may change the structure of the table and could create a hazardous condition, resulting in serious injury or death. MODELS 420-DW AND 420-EO: INSTALLATION ELECTRICAL REQUIREMENTS Warning: Use 115 VAC, 60 Hz. -
Page 11: Operation
OPERATION EXAM TABLE BACK ANGLE RANGE WARNING: This exam table is manually operated. Once the back reaches its maximum angle or a horizontal position, the back will stop moving. When the back is lowered, ensure hands or other objects are clear from the downward motion area. Back Angle Range The exam table features a limited back angle of ~70°... -
Page 12: Patient Legrest And Procedure Tray
PATIENT LEGREST AND PROCEDURE TRAY Legrest Pull-Out Cushion Procedure Tray or Treatment Pan Pull-Out (Can be used without Legrest Pull-Out being extended) Legrest Pull-Out The Legrest Pull-Out, shown above, is located under the seat portion of the table cushion and can be extended 16 in. -
Page 13: Pelvic Tilt Operation
PELVIC TILT OPERATION Pelvic Tilt Down Position Pelvic Tilt Up Position 1.. Lift seat portion of upholstery to raise and lower pelvic tilt, as shown above. 2. Once pelvic tilt is in desired position, lower the seat. 420-INS-LAB-RevA20... -
Page 14: Cleaning And Maintenance
CLEANING AND MAINTENANCE s NOTICE — POSSIBLE EQUIPMENT DAMAGE HAZARD: Steam cleaning and pressure washing of exam table is not recommended and may void warranty. WARNING: Service and repair of the Intensa 420 Series Examination Table MUST be performed by qualified personnel ONLY. WARNING: Unauthorized modification of the Examination Table or the use of non-Intensa replacement parts may change the structure of the table and could create a hazardous condition, which may result in serious injury and void the warranty. -
Page 15: Maintenance
* Disinfecting and Cleaning Upholstery continued Soils or Use neutral soapsuds and lukewarm water; DO NOT use harsh cleansers, solvents or Stains detergents Hard-To- Use standard household / vinyl cleansers and a soft bristle brush on troublesome Clean Spots spots or stains; presoak heavy, dried-on soil Laundering Laundering Vinyl-laminated, Polyurethane-coated, or Rubber-coated fabric IS NOT recommended;... -
Page 16: Specifications
SPECIFICATIONS Exam Table Weight Model 420 Product Weight 275 lb (125 kg) Shipping Weight 325 lb (147 kg) Model 420-DW Product Weight 280 lb (127 kg) Shipping Weight 330 lb (150 kg) Model 420-EO Product Weight 280 lb (127 kg) Shipping Weight 330 lb (150 kg) Load Rating (Evenly Distributed) -
Page 17: Limited Warranty
LIMITED WARRANTY SCOPE OF WARRANTY Intensa, Inc. (“Intensa”) warrants to the original purchaser only that it will replace or repair components, at Intensa’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable Intensa instructions and manuals, including proper use and maintenance. - Page 18 4) Accessories or parts not provided by Intensa; 5) Matching of color, grain or texture except to commercially acceptable standards; 6) Changes in color caused by natural or artificial light; 7) Charges by anyone for adjustments, repairs, replacement parts, installation or other work performed upon or in connection with such products which are not expressly authorized in writing, in advance, by Intensa;...
-
Page 19: 10 Index
10 INDEX Safety precautions 5 Back angle adjustment 11 Safety statements, significance of 5 Back angle range 11 Specifications 16 Stirrup operation 12 CAUTION statement, significance 5 Storage 8 Cleaning 14 Symbol key, equipment 4 Cleaning and maintenance 14 Contraindications to intended use 3 Unpacking 8 DANGER statement, significance 5 Warnings 5... - Page 20 © 2020, Intensa, Inc. All Rights Reserved. Intensa is a Wholly Owned Subsidiary of GF Health Products, Inc. Manufactured by: Intensa, Inc. 1810 S. Elm St. High Point, NC 27260 1.336.884.4096 intensa@grahamfield.com intensa.net Made in U.S.A.
