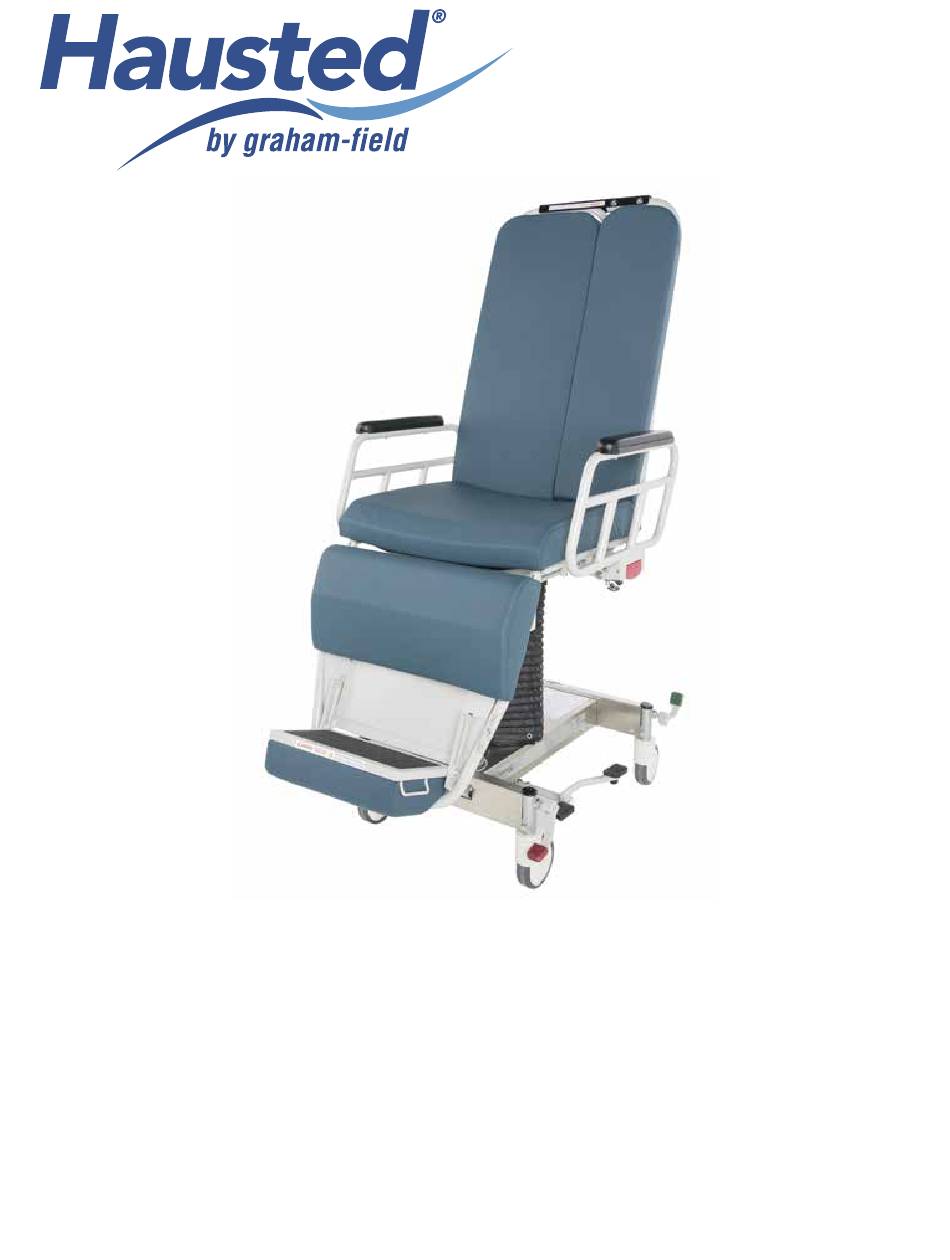

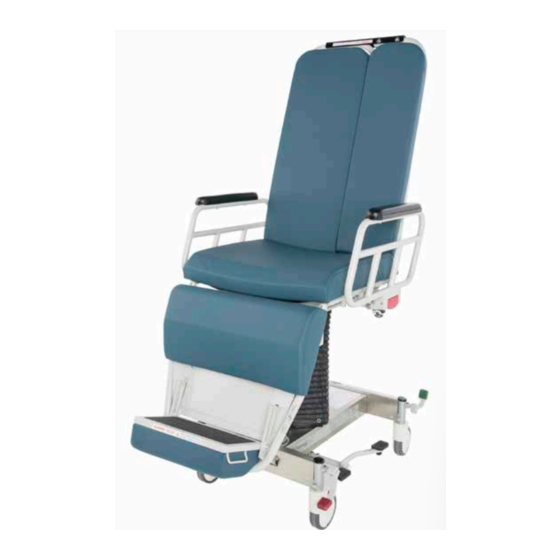

- Page 1 VIC429 VIDEO IMAGING CHAIR OPERATING MANUAL READ THIS MANUAL BEFORE OPERATING YOUR VIC429 VIDEO IMAGING CHAIR. SAVE THIS MANUAL FOR FUTURE USE. THE MOST CURRENT VERSION OF THIS MANUAL CAN BE FOUND ONLINE AT WWW.HAUSTED.COM. VIC429-INS-LAB-REVA21...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION — A WORD FROM GF HEALTH PRODUCTS, INC.................4 INDICATIONS FOR USE ............................4 SERVICE INFORMATION ............................4 ADVISORY ................................4 LIST OF WARNINGS AND CAUTIONS .........................5 SIGNIFICANCE OF SAFETY STATEMENTS ........................5 DANGER / WARNING / CAUTION / NOTICE SUMMARY ..................5 WARNING: TO REDUCE THE RISK OF PERSONAL INJURY ..............5 WARNING —... - Page 3 3.8.1 MODE DEFINITIONS ..........................18 TRANSPORT MODE ..........................18 NONTRANSPORT MODE .........................18 3.8.2 NONTRANSPORT MODE (ANTERIOR / POSTERIOR POSITION) ............19 TO ENTER NONTRANSPORT MODE ......................19 3.8.3 TRANSPORT MODE (LATERAL POSITION) ...................19 TO ENTER TRANSPORT MODE ......................19 3.9 PATIENT TRANSFER INSTRUCTIONS.......................20 DEFINITION OF TERMS USED IN THE FOLLOWING INSTRUCTIONS (SEE FIG. 3.10-1 BELOW) ..20 TRANSFER SIDE TERMS .........................20 TRANSFER OF PATIENT FROM VIC TO A SECONDARY DEVICE ............20 3.10 PERFORMING PATIENT TRANSFER .........................21...
-
Page 4: Introduction - A Word From Gf Health Products, Inc
GF Health Products, Inc. carries a complete line of accessories for use with these chairs; your representative will gladly review these with you. Indications for Use The Hausted VIC429 Video Imaging Chair, with a radiolucent back for X-ray imaging, is intended for use in patient treatment, transport or recovery. Service Information A thorough preventive maintenance program is essential to safe and proper unit operation. -
Page 5: List Of Warnings And Cautions
LIST OF WARNINGS AND CAUTIONS IMPORTANT: Before using the Hausted VIC429 Video Imaging Chair, please read and adhere to the following safety precautions and warnings. Failure to do so could result in serious personal injury or damage to the VIC429 Video Imaging Chair. -
Page 6: Warning - Cautions And Proper Operation
WARNING — CAUTIONS AND PROPER OPERATION WARNING: The VIC429 Video Imaging Chair has a maximum patient weight capacity of 147 kg (324 lb), EVENLY DISTRIBUTED. WARNING: The VIC429 Video Imaging Chair has a maximum weight, including equipment weight and maximum patient weight, of 224 kg (494 lb), EVENLY DISTRIBUTED. WARNING: The chair is not intended to replace a stretcher or gurney. -
Page 7: Uncrating Instructions
UNCRATING INSTRUCTIONS IMPORTANT — REPORT ANY SHIPPING DAMAGE IMMEDIATELY WARNING: Inform shipper of any damages — leave carton intact. Leave equipment in the receiving area until inspection is complete. NOTICE — POSSIBLE EQUIPMENT DAMAGE s NOTICE: The crate contains fragile, expensive medical equipment. Uncrate and handle carefully. If after uncrating the equipment you find any damage (no matter how slight), report the damage to GF Health Products, Inc. -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS VIC429 FEATURES 3.1.1 VIC429 Standard Features • Pneumatic-assist back angle • Radiolucent back section provides a clear, unobstructed site for imaging used during transport, easy to remove for radiological procedures • Easy-to-operate rotating seat section • Dual side hydraulic foot pedal controls height adjustment •... -
Page 9: Vic429 Features, Warnings, And Proper Operation Instructions
3.1.2 VIC429 Features, Warnings, and Proper Operation Instructions WARNINGS — CAUTIONS AND PROPER OPERATION (See Diagram on following page) WARNING: The VIC429 Video Imaging Chair has a maximum patient weight capacity of 147 kg (324 lb), EVENLY DISTRIBUTED. WARNING: The VIC is not intended to replace a stretcher or gurney. WARNING: The chair has warning labels on both the head and foot end stating: Do not sit on end - as tipping may occur. -
Page 10: Vic429 Features, Illustrated
3.1.3 VIC429 Features, Illustrated HEAD SECTION TUBE WARNING LABEL See WARNINGS C and H BACK OF CHAIR WARNING LABEL See WARNING A SAFETY STRAP MOUNTING RODS See WARNING F PATIENT COMFORT CUSHIONS REMOVABLE PUSHBAR See WARNING I GREEN PNEUMATIC-ASSIST BACK RECLINE LEVER HINGING RAIL See WARNINGS B, F, H and I See WARNING F... -
Page 11: Vic429 Specifications
VIC429 SPECIFICATIONS Info: All dimensions are specified in inches and centimeters. Unless otherwise noted, all dimensions are ± .375 in. (1 cm). VIC429 Specification Chair Position Stretcher Position inch inch Patient Surface Size (WxL) 22 x 50 55.9 x 127.0 22 x 70.5 55.9 x 179.1 Unit Height 58.5 to 66.5... -
Page 12: Braking And Steering Operation
BRAKING AND STEERING OPERATION WARNING: Patient entry, egress and transfer from the VIC should always be from the center side rail location with the side rail in the down position and brakes locked. WARNING: The brakes should always be applied when patient is not being transported. -
Page 13: Top And Back Adjustment
TOP AND BACK ADJUSTMENT WARNING: PERSONAL INJURY HAZARD: WARNING: When the VIC is not in use, do not leave it in a recline position. WARNING: At no time should the patient be permitted to enter or exit from the ends of the VIC when in partial or total recline position. -
Page 14: Reclining The Chair Back
3.4.3 Reclining the Chair Back Squeeze the green recline lever (Fig. 3.4-3) and push back on the back section until the desired position is obtained. Position can vary from upright to -10° Trendelendurg position. Info: There is a degree indicator, circled in red in Fig. -
Page 15: Independent Leg Section
INDEPENDENT LEG SECTION WARNING: PERSONAL INJURY HAZARD: WARNING: The VIC has a warning label on the top of the base cover that states: When chair is in nontransport mode: Patient must remain fully upright; patient must never be reclined; patient must Figure 3.5-1 never be left unattended. -
Page 16: Adjustable Footrest
ADJUSTABLE FOOTREST WARNING: PERSONAL INJURY HAZARD: WARNING: The VIC has a warning label on the top of the base cover that states: When chair is in nontransport mode: Patient must remain fully upright; patient must never be reclined; patient must never be left unattended. -
Page 17: Hinging Rails
HINGING RAILS 3.7.1 Repositioning the Rail The chair rail has two positions, up and down. Both positions lock the rail into place. To lower the rail: Apply lateral force to the top of the rail (Fig. Figure 3.7-1 3.7-1) and pull on the red rail handle (Fig. 3.7-2). -
Page 18: Vic Rotating Instructions (Transport And Nontransport Mode)
VIC ROTATING INSTRUCTIONS (TRANSPORT AND NONTRANSPORT MODE) WARNING: PERSONAL INJURY HAZARD: WARNING: When the VIC is not in use, do not leave it in a recline position. WARNING: When transporting patient, the patient should be placed in a fully upright position with chair in low height. -
Page 19: Nontransport Mode (Anterior / Posterior Position)
WARNING: PERSONAL INJURY HAZARD: WARNING: The VIC is not intended to replace a gurney or stretcher. WARNING: When the VIC is in nontransport mode, the patient must remain fully upright, patient should never be reclined, and patient must never be Figure 3.8-5 unattended. -
Page 20: Patient Transfer Instructions
PATIENT TRANSFER Definition of Terms Used in the Following Instructions (see Fig. 3.10-1 below) INSTRUCTIONS Transfer Side Terms WARNING: PERSONAL INJURY HAZARD: Secondary Patient Device: The transfer side WARNING: The VIC429 Video Imaging will always be located on the attendant’s right Chair has a maximum patient weight side when standing at the patient’s foot end capacity of 147 kg (324 lb), EVENLY facing the patient. -
Page 21: Performing Patient Transfer
3.10 PERFORMING PATIENT TRANSFER Figure 3.10-1 Figure 3 - 25 Patient Transfer 1. Release patient safety straps. 2. Transfer patient, following instructions on previous page. Patient Transfer from a Secondary Device to VIC Follow the same procedure as in “transferring from VIC to a secondary device” on previous page except: you must verify that the VIC is positioned so that the patient’s abdomen is in line with the chair seat before attempting to transfer a patient to the VIC;... -
Page 22: Preventive Maintenance For The User
PREVENTIVE MAINTENANCE FOR THE USER Component Cleaning Procedure Schedule Cleaning Agent * Special Notes Pads / Mattresses Wipe with damp cloth to Routine hospital grade Use only medium remove any foreign material disinfectants, soap and strength cleaners water Do not steam clean After or pressure wash each... -
Page 23: Optional Accessories
OPTIONAL ACCESSORIES WARNING: Use only accessories approved by GF Health Products, Inc. with this device. The use of accessories, transducers, and cables other than those specified by the manufacturer may result in increased emissions or decreased immunity of Hausted equipment. Info: To order accessories, or for more detailed information on accessories, please contact GF Health Products, Inc. -
Page 24: Gf Health Products, Inc. Limited Warranty For Hausted Brand Stretchers And Chairs
GF HEALTH PRODUCTS, INC. LIMITED WARRANTY FOR HAUSTED BRAND STRETCHERS AND CHAIRS SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use and maintenance of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals . - Page 25 ENTIRE WARRANTY, EXCLUSIVE REMEDY AND CONSEQUENTIAL DAMAGES DISCLAIMER THIS WARRANTY IS GF’S ONLY WARRANTY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. GF MAKES NO IMPLIED WARRANTIES OF ANY KIND INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
-
Page 26: Disposal And Key To Symbols
DISPOSAL AND KEY TO SYMBOLS DISPOSAL Hausted equipment and accessories can be disposed of. We recommend disassembling and dividing the equipment and components into different waste groups such as: metal, cable, electronic, recoverable resource and plastic for recycling or combustion. Most plastic components are provided with a plastic types code and fiber content to aid sorting of plastic parts. -
Page 27: Index
INDEX Service information 4 Accessories, optional, list 23 Steering lock, applying 12 Adjustable footrest 16 Steering lock, releasing 12 Advisory 4 Symbols key, Hausted product labels 26 A word from GF Health Products, Inc. 4 Top adjustment 13 Back, reclining 14 Top, lowering 13 Back, returning to upright position 14 Top, raising 13... - Page 28 www.hausted.com www.grahamfield.com Manufactured by: GF Health Products, Inc. One Graham-Field Way Atlanta GA 30340-3140 1.770.368.4700 Information contained herein is subject to change. The most current and complete product information can be found on our website. www.grahamfield.com © 2021, GF Health Products, Inc. All Rights Reserved. Hausted is a trademark of GF Health Products, Inc., One Graham-Field Way, Atlanta GA 30340-3140 GF Health Products, Inc.
