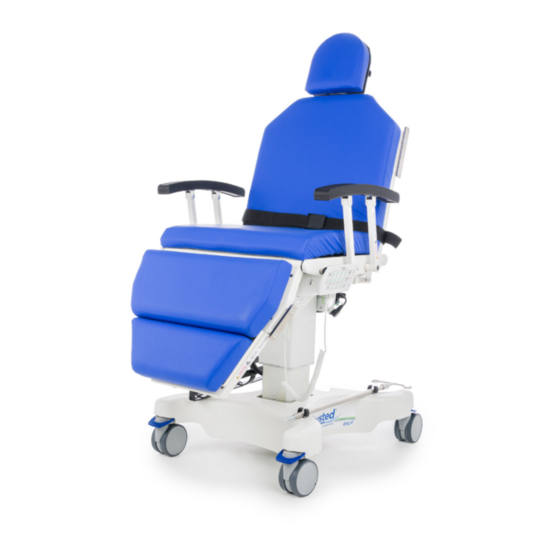

Graham Field Hausted ESC2EYESTR Operating Manual

Graham Field Hausted ESC2EYESTR Operating Manual

Surgi-eye chair
Table of Contents

Advertisement

Quick Links

2

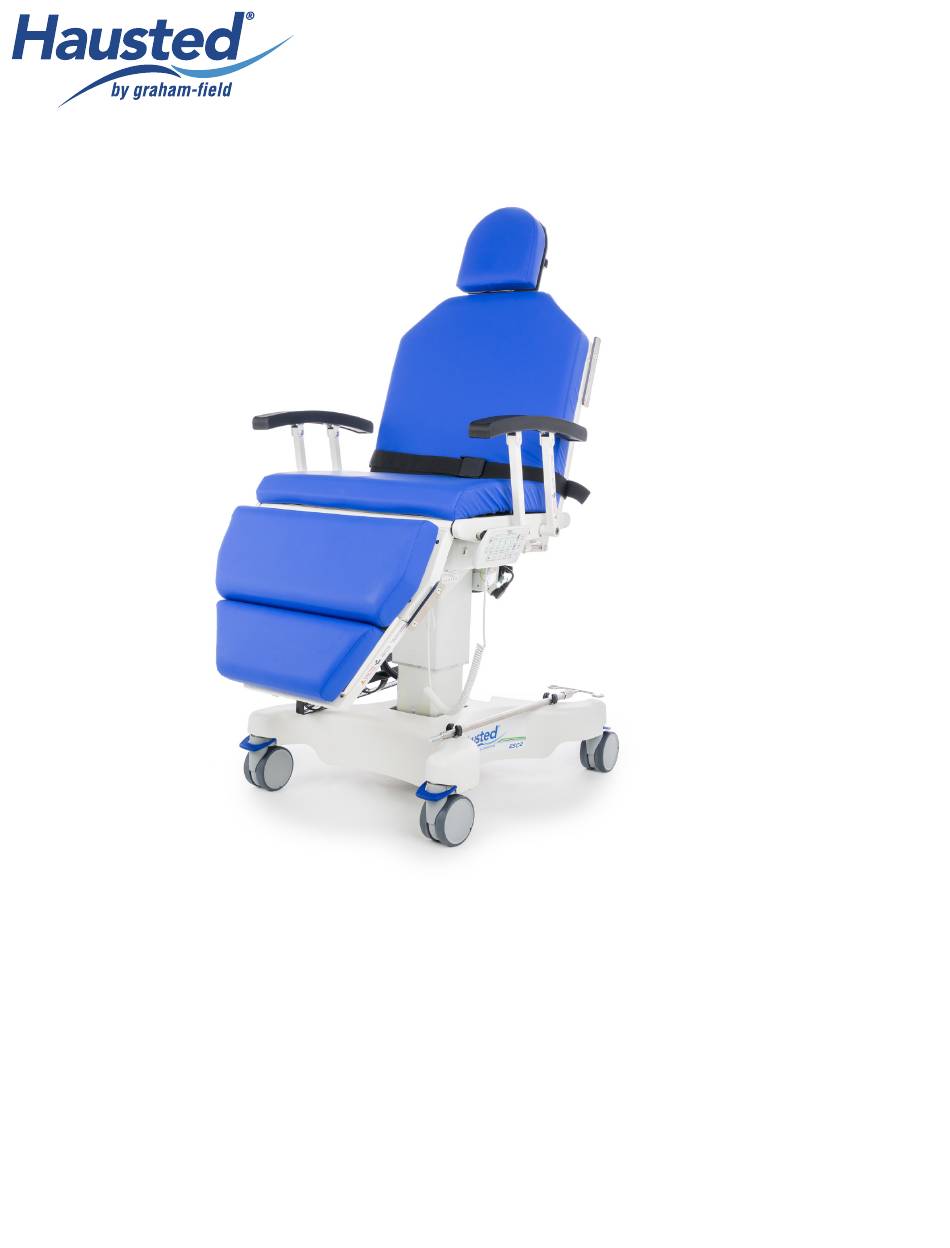

ES C
EYESTR S UR G I - E Y E C HA I R
OPERATING MANUAL
SAVE THIS MANUAL FOR FUTURE USE.
HA_ESC2EYEST-INS-LAB-RevD24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hausted ESC2EYESTR and is the answer not in the manual?

Questions and answers

Summary of Contents for Graham Field Hausted ESC2EYESTR

  • Page 1 ES C EYESTR S UR G I - E Y E C HA I R OPERATING MANUAL SAVE THIS MANUAL FOR FUTURE USE. HA_ESC2EYEST-INS-LAB-RevD24...
  • Page 2: Table Of Contents

    CONTENTS INTRODUCTION — A WORD FROM GF HEALTH PRODUCTS, INC....................4 INDICATIONS FOR USE ................................. 4 SERVICE INFORMATION ............................... 4 ADVISORY ....................................4 LIST OF WARNINGS AND CAUTIONS ............................5 SIGNIFICANCE OF SAFETY STATEMENTS ........................... 5 DANGER / WARNING / CAUTION / NOTICE SUMMARY ....................5 WARNING: TO REDUCE THE RISK OF BURNS, FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY ....
  • Page 3 9.6 SIGNAL INPUT / OUTPUT PARTS PORT .......................... 41 9.7 RECOMMENDED SEPARATION DISTANCES BETWEEN PORTABLE AND MOBILE RF COMMUNICATIONS EQUIPMENT AND HAUSTED ESC2EYESTR SURGI-EYE CHAIR ......................42 9.8 NOTES TO SECTIONS 9.2 - 9.7 ............................42 9.9 CERTIFICATIONS .................................. 42 INDEX ......................................
  • Page 4: Introduction - A Word From Gf Health Products, Inc

    Indications for Use The Hausted ESC2EYESTR Surgi-Eye Chair is intended for use in patient treatment, transport or recovery. This product has an expected service life of five years. The chair’s back can be positioned from sitting to supine. Height positioning, as well as back, seat, and leg section adjustment, is electric/battery powered and is activated with a pendant.
  • Page 5: List Of Warnings And Cautions

    LIST OF WARNINGS AND CAUTIONS IMPORTANT: Before using the Hausted ESC2EYESTR Surgi-Eye Chair, please read and adhere to the following safety precautions and warnings. Failure to do so could result in serious personal injury or damage to the ESC2EYESTR Surgi-Eye Chair.
  • Page 6: Warning - Cautions And Proper Operation

    WARNING — CAUTIONS AND PROPER OPERATION WARNING: The ESC2EYESTR Surgi-Eye Chair has a maximum patient weight capacity of 272 kg (600 lb), EVENLY DISTRIBUTED. WARNING: The ESC2EYESTR Surgi-Eye Chair has a maximum weight, including equipment weight and maximum patient weight, of 393 kg (865 lb). WARNING: The chair is not intended to replace a stretcher or gurney.
  • Page 7: Electromagnetic Compatibility (Emc) Information

    ELECTROMAGNETIC COMPATIBILITY (EMC) INFORMATION WARNING: Medical Electrical Equipment needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided in this manual. WARNING: Electronic equipment may be influenced by Radio Frequency (RFI). Caution should be exercised with regard to the use of portable communications in the area around such equipment.
  • Page 8: Uncrating Instructions

    UNCRATING INSTRUCTIONS IMPORTANT — REPORT ANY SHIPPING DAMAGE IMMEDIATELY WARNING: Inform shipper of any damages — leave carton intact. Leave equipment in the receiving area until inspection is complete. NOTICE — POSSIBLE EQUIPMENT DAMAGE s NOTICE: The crate contains fragile, expensive medical equipment. Uncrate and handle carefully.
  • Page 9: Operating Instructions

    OPERATING INSTRUCTIONS ESC2EYESTR SPECIFICATIONS Info: All dimensions are specified in [millimeters] and inches. Unless otherwise noted, all dimensions are ± [10 mm] .375 in. Dual dimensions are minimum (left) and maximum (right) when shown in chair position, and opposite — maximum (left) and minimum (right) when shown in Trendelenburg position (bottom).
  • Page 10: Electrical Specifications

    ESC2EYESTR SPECIFICATIONS CONTINUED Electrical Specifications Product Classification Input Voltage 100-240V~ 50/60 Hz Amperage Maximum 4.5A Duty Cycle 10% 2 min. in 18 min. IP Rating IPX5 Grounding Protection Type B Identification Label model serial number identification label column Identification label location Identification label example The chair identification label identifies the chair serial number and model, essential information when ordering replacement parts or claiming parts under warranty.
  • Page 11: Features, Warnings And Proper Operation Operating Instructions

    FEATURES, WARNINGS AND PROPER OPERATION OPERATING INSTRUCTIONS WARNINGS — CAUTIONS AND PROPER OPERATION (See Diagram on following page) WARNING: The ESC2EYESTR Surgi-Eye Chair has a maximum patient weight capacity of 272 kg (600 lb), EVENLY DISTRIBUTED. WARNING: The ESC2EYESTR Surgi-Eye Chair has a maximum weight capacity, including equipment weight and patient weight, of 393 kg (865 lb).
  • Page 12: Features (Shown In Illustration)

    Features (Shown in Illustration) HEAD SECTION TUBE WARNING LABEL PATIENT COMFORT CUSHIONS See WARNINGS C & H BACK OF CHAIR WARNING LABEL PIVOTING RAIL See WARNINGS A & P See WARNING F PATIENT ENTRY See WARNINGS G & H SAFETY STRAP See WARNING F RAIL LATCH See WARNINGS F &...
  • Page 13: Braking And Steering Operation With Smart Caster Technology

    BRAKING AND STEERING OPERATION WITH SMART CASTER TECHNOLOGY 3.3.1 Applying the Brakes To apply the four wheel central braking system with the pendant, press the pendant Brake On / Off button; the LED above the button then illuminates green (Figure 3.3-1), and the blue caster pedals on all four corners of the chair automatically lower to lock (Figure 3.3-2), and all four caster wheels will then be locked from swiveling and rotating.
  • Page 14: Activating Advanced Steer Mode - Pendant

    3.3.3 Activating Advanced Steer Mode — Pendant To activate Advanced Steer Mode with the pendant, press the pendant Steer Mode On / Off button. The LED above the button then illuminates green (Figure 3.3-5), and the blue caster pedals automatically rise (Figure 3.3-6) at the patient foot end of the chair.
  • Page 15: Deactivating Advanced Steer Mode - Pendant

    3.3.5 Deactivating Advanced Steer Mode — Pendant To deactivate Advanced Steer Mode with the pendant, press the pendant Steer Mode On / Off button. The LED above the button will go out (Figure 3.3-7) and the blue caster pedals in Steer-Lock position will automatically lower to neutral position (Figure 3.3-4).
  • Page 16: Pendant Control Storage Location

    s NOTICE: Place pendant on holder when not in use. Keep cord clear of moving parts. 3.4.2 Plug Location This chair is equipped with a battery back-up for transport but the unit should be plugged into a wall receptacle when not in transport. The plug is located on the back of the control box (Figure 3.4-2).
  • Page 17: Height And Patient Surface Adjustment

    HEIGHT AND PATIENT SURFACE ADJUSTMENT Figure 3.5-1 3.5.1 LOCK / UNLOCK (button 1) LOCK Press and hold LOCK button (1) for three seconds to lock all functions. After fi ve LED fl ashes, all four UP LED’s (2-5) illuminate steady green, indicating they are now locked; an audible signal also indicates when locked and beeps up to three times until button is released.
  • Page 18: Back Section Up / Down (Buttons 3 And 10)

    HEIGHT AND PATIENT SURFACE ADJUSTMENT Figure 3.5-2 3.5.3 BACK SECTION UP / DOWN (buttons 3 and 10) BACK UP Press and hold BACK UP button (3) until desired position is achieved. LED illuminates steady green while pressed, goes out when released. Press and hold BACK DOWN button (10) until desired position is BACK DOWN achieved.
  • Page 19: Leg Up / Down (Buttons 5 And 12)

    HEIGHT AND PATIENT SURFACE ADJUSTMENT Figure 3.5-3 3.5.5 LEG UP / DOWN (buttons 5 and 12) Press and hold LEG UP button (5) until desired position is achieved. LED illuminates steady green while pressed, goes out LEG UP when released. Press and hold LEG DOWN button (12) until desired position is achieved.
  • Page 20: Trendelenburg, Supine, And Reverse Trendelenburg Positions (Buttons 7, 14, And 20)

    HEIGHT AND PATIENT SURFACE ADJUSTMENT Figure 3.5-4 3.5.7 TRENDELENBURG AND SUPINE Positions (buttons 7, 14, & 15) Press and hold TRENDELENBURG button (7) until desired position is achieved. Chair automatically lowers back TRENDELENBURG section, raises leg section, and tilts seat section backward simultaneously;...
  • Page 21: Battery (Button 19)

    HEIGHT AND PATIENT SURFACE ADJUSTMENT Figure 3.5-5 3.5.9 BATTERY (button 20) LED illuminates steady green when battery discharges to 20% capacity or less. BATTERY Press and hold LOCK and BATTERY buttons (1 and 19) for one second to unlock all functions. A quick LED fl ash indicates they are now unlocked;...
  • Page 22: Emergency Drop Back

    HEIGHT AND PATIENT SURFACE ADJUSTMENT 3.5.11 Emergency Drop Back This chair is equipped with a manual override function for the back section of the chair. This option should only be used in an emergency situation. To activate the emergency drop back, support the back section and pull outward on the red activating handle located on the patient right side under the seat to the rear (Figure 3.5-6).
  • Page 23: Adjustable Footrest

    ADJUSTABLE FOOTREST 3.6.1 Repositioning the Footrest The footrest has three positions: retracted, lower, and upper. With the pan in the retracted position, pull out anywhere on top of the pan (Figure 3.6-1). The footrest will drop into the lower position (Figure 3.6-2).
  • Page 24: Adjustable Leg Extension

    ADJUSTABLE LEG EXTENSION 3.7.1 Repositioning the Motorized Leg Extension The motorized leg extension can be adjusted to make the footrest up to 8.0" (20 cm) longer when fully extended (Figure 3.7-1). Extending the Motorized Leg Extension Info: The motorized leg extension can only be extended when the leg is in the horizontal position.
  • Page 25: Operation While Leg Extension Is Retracted

    Operation While Leg Extension Is Retracted seat 55° A. When the leg extension is fully retracted and the chair height is below 22" (55.9 cm) (top of seat to floor), the leg section can only be positioned between 0° and 55° from horizontal.
  • Page 26: Pivoting Rails

    PIVOTING RAILS 3.8.1 Repositioning the Rail The chair rail has two positions, raised and lowered. Both positions lock the rail into place. Lowering the Pivoting Rail Grasp the top of the rail, push or pull outward on the Figure 3.8-1 black release plunger (Figure 3.8-1), and pull the top of the rail toward the head end of the chair (Figure 3.8-4);...
  • Page 27: Headrest

    HEADREST 3.9.1 Adjusting the Headrest Grasp the right ball style knob (Figure 3.9-1), and rotate it counterclockwise to articulate the head section upward (Figure 3.9-2); rotate the knob clockwise to articulate the head Figure 3.9-1 section downward (Figure 3.9-3). Once the upward articulation has been set, grasp the left ball style knob (Figure 3.9-4), and rotate the knob counterclockwise to articulate the chin tilt upward;...
  • Page 28: Push Handles

    3.10 PUSH HANDLES 3.10.1 Operating the Push Handles Push Handles are stowed away when not in use (Figure 3.10-1). Push Handles may be operated with the back in either raised or lowered position. Figure 3.10-1 Rotating and Positioning the Hand Grips The Hand Grips rotate 360°...
  • Page 29: Common Optional Accessories

    3.11 COMMON OPTIONAL ACCESSORIES 3.11.1 Mounting the Wrist Rest Insert the Wrist Rest into one of the appropriate three square sockets under the headrest (Figure 3.11-1). Rotate the T-knob on the back of Figure 3.11-1 the Wrist Rest (Figure 3.11-2) clockwise to lock it into place.
  • Page 30: Troubleshooting Guide

    TROUBLESHOOTING GUIDE DANGER: SHOCK HAZARD — To reduce the risk of electric shock, unit is to be serviced by qualified service personnel only. DANGER: SHOCK HAZARD — Always disconnect the power source whenever troubleshooting or servicing any electric powered chair. The following list of problems and their solutions will assist you in determining what may be causing your chair not to function as designed.
  • Page 31: Control Box

    TROUBLESHOOTING GUIDE CONTINUED Then Adjustable leg extension The leg extension can only be extended when the leg is in the HORIZONTAL does not operate. position (see section 3.7.1). Press leg extension EXTEND or RETRACT button. Control box LED should illuminate amber. If so, replace the actuator. If not, replace the switch.
  • Page 32: Battery Replacement

    BATTERY REPLACEMENT DANGER: SHOCK HAZARD — To reduce the risk of electric shock, unit is to be serviced by qualifi ed service personnel only. DANGER: SHOCK HAZARD — Always Figure 4.2-1 disconnect the power source whenever troubleshooting or servicing this chair. Info: The ESC2EYESTR utilizes unique batteries specifi c to this unit (P/N H080812).
  • Page 33: Preventive Maintenance For The User

    PREVENTIVE MAINTENANCE FOR THE USER Component Cleaning Procedure Schedule Cleaning Agent * Special Notes Pads / Mattresses Wipe with damp cloth to Routine hospital grade Use only medium remove any foreign material disinfectants, soap and strength cleaners water Do not steam clean After or pressure wash each...
  • Page 34: Optional Accessories

    OPTIONAL ACCESSORIES WARNING: Use only accessories approved by GF Health Products, Inc. with this device. The use of accessories, transducers, and cables other than those specified by the manufacturer may result in increased emissions or decreased immunity of Hausted equipment. Info: To order accessories, or for more detailed information on accessories, please contact GF Health Products, Inc.
  • Page 35: Gf Health Products, Inc. Limited Warranty For Hausted Brand Stretchers And Chairs

    GF HEALTH PRODUCTS, INC. LIMITED WARRANTY FOR HAUSTED BRAND STRETCHERS AND CHAIRS SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance.
  • Page 36: Disposal And Key To Symbols

    DISPOSAL AND KEY TO SYMBOLS DISPOSAL Hausted equipment and accessories can be disposed of. We recommend disassembling and dividing the equipment and components into diff erent waste groups such as: metal, cable, electronic, recoverable resource and plastic for recycling or combustion. Most plastic components are provided with a plastic types code and fi ber content to aid sorting of plastic parts.
  • Page 37: Appendix

    ELECTROMAGNETIC EMISSIONS The Hausted ESC2EYESTR Surgi-Eye Chair is intended for use in the electromagnetic environment specified below. The customer or the user of the Hausted ESC2EYESTR Surgi-Eye Chair should assure that it is used in such an environment. Emissions Test Compliance Electromagnetic Environment —...
  • Page 38: Enclosure Port Immunity To Rf Wireless Communications Equipment

    ENCLOSURE PORT IMMUNITY TO RF WIRELESS COMMUNICATIONS EQUIPMENT Test Maximum MMUNITY Band Service Modulation Distance frequency power TEST LEVEL (MHz) (MHz) (V/m) Pulse modulation 380 –390 TETRA 400 18 Hz GMRS 460, ± 5 kHz deviation 430 – 470 FRS 460 1 kHz sine Pulse LTE Band 13,...
  • Page 39: Input Ac Power Port

    INPUT AC POWER PORT MMUNITY TEST LEVELS Basic EMC Phenomenon standard Professional healthcare facility environment Electrical fast transients / IEC 61000-4-4 ± 2 kV a) l) o) bursts 100 kHz repetition frequency a) b) j) o) IEC 61000-4-5 ± 0,5 kV, ± 1 kV Surges Line-to-line a) b) j) k) o)
  • Page 40: Patient Coupling Port

    CONTINUED that do not have a surge protection device in the primary power circuit may E EQUIPMENT ME SYSTEMS be tested only at ± 2 kV line(s) to earth and ± 1 kV line(s) to line(s). Not applicable to C LASS II ME EQUIPMENT ME SYSTEMS Direct coupling shall be used.
  • Page 41: Signal Input / Output Parts Port

    SIGNAL INPUT / OUTPUT PARTS PORT MMUNITY TEST LEVELS Basic EMC Phenomenon standard Professional healthcare facility environment IEC 61000-4-2 ± 8 kV contact LECTROSTATIC DISCHARGE ± 2 kV, ± 4 kV, ± 8 kV, ± 15 kV air Electrical fast IEC 61000-4-4 ±...
  • Page 42: Recommended Separation Distances Between Portable And Mobile Rf Communications Equipment And Hausted Esc2Eyestr Surgi-Eye Chair

    The Hausted ESC2EYESTR Surgi-Eye Chair is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Hausted ESC2EYESTR Surgi-Eye Chair can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Hausted ESC2EYESTR Surgi-Eye Chair as recommended below, according to the maximum output power of the communications equipment.
  • Page 43: Index

    10 INDEX Leg extension, adjustable 24 Accessories, optional, list 34 Leg extension, extending 24 Advanced steer mode, deactivate 15 Leg extension, repositioning 24 Advisory 4 Leg extension, retracting 24 A word from GF Health Products, Inc. 4 Limited warranty 35 LOCK button 17 Back, emergency drop 22 BACK SECTION UP/DOWN buttons 18...
  • Page 44 Manufactured By: GF Health Products, Inc. One Graham-Field Way, Atlanta, GA 30340 Made in U.S.A. +1 770.368.4700 © 2020, GF Health Products, Inc. All Rights Reserved. Information contained herein is subject to change without notice. Hausted is a registered trademark of GF Health Products, Inc. The most current and complete product information can be found on our website.
