Graham Field Lumex FR587W Series Assembly And Operating Instructions Manual

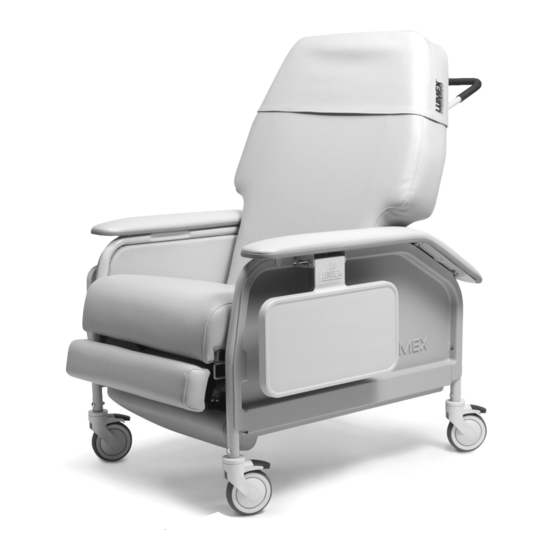

Deluxe clinical care recliner, extra wide/with heat and massage
Hide thumbs Also See for Lumex FR587W Series:
Table of Contents

Advertisement

Quick Links

Download this manual

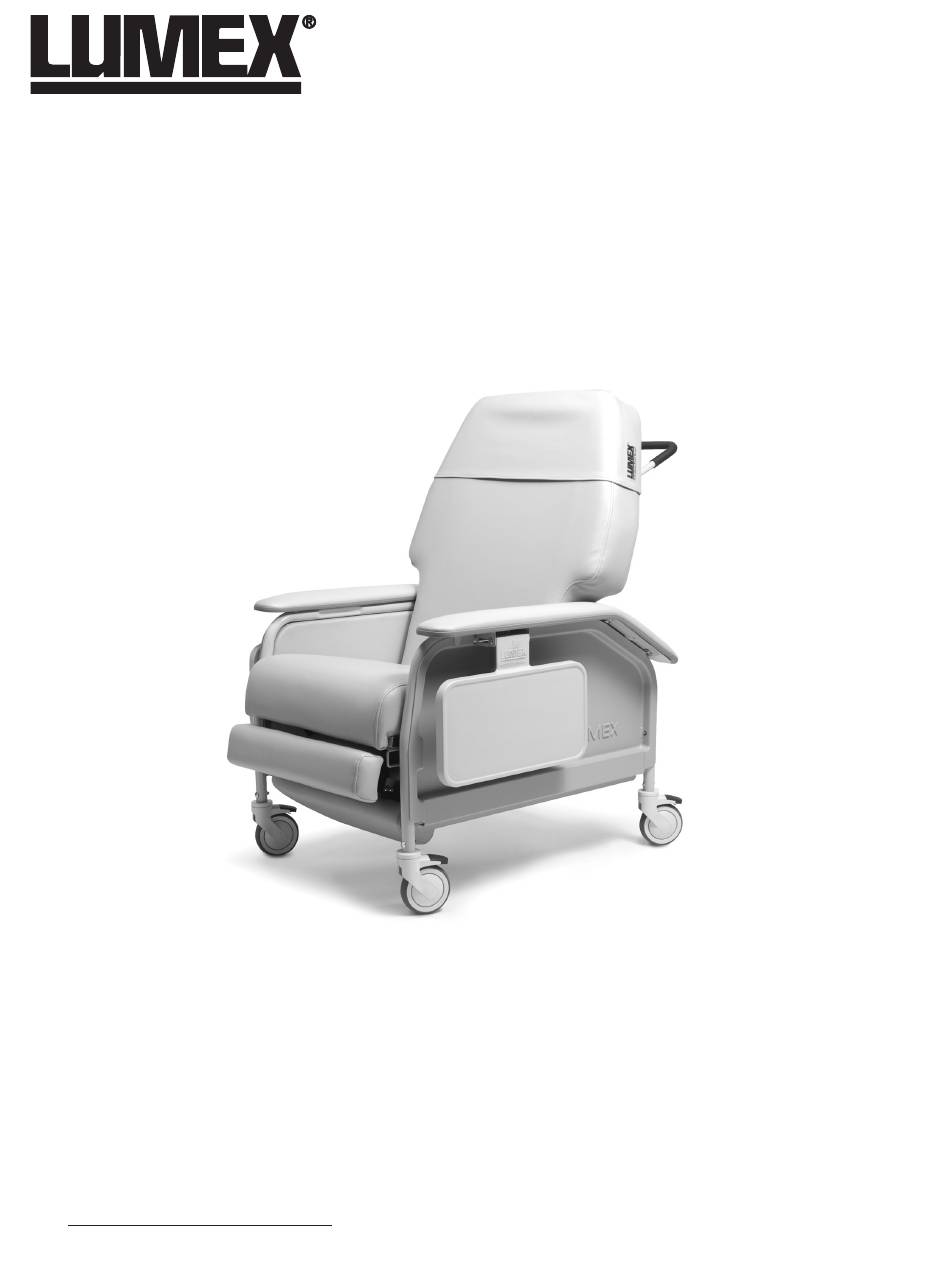

Series FR587W Deluxe Clinical Care Recliner,
Extra Wide
Series FR587WH Deluxe Clinical Care Recliner,
Extra Wide, with Heat and Massage
Assembly and Operating Instructions
IMPORTANT: READ THIS MANUAL BEFORE OPERATING YOUR LUMEX
FR587W / FR587WH DELUXE EXTRA-WIDE CLINICAL CARE RECLINER.
SAVE THIS MANUAL FOR FUTURE USE.
THE MOST CURRENT VERSION OF THIS MANUAL CAN BE FOUND ONLINE
AT www.grahamfield.com.
FR587W-INS-LAB-RevF16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lumex FR587W Series and is the answer not in the manual?

Questions and answers

Related Manuals for Graham Field Lumex FR587W Series

Summary of Contents for Graham Field Lumex FR587W Series

  • Page 1 Series FR587W Deluxe Clinical Care Recliner, Extra Wide Series FR587WH Deluxe Clinical Care Recliner, Extra Wide, with Heat and Massage Assembly and Operating Instructions IMPORTANT: READ THIS MANUAL BEFORE OPERATING YOUR LUMEX FR587W / FR587WH DELUXE EXTRA-WIDE CLINICAL CARE RECLINER. SAVE THIS MANUAL FOR FUTURE USE.

  • Page 2: Table Of Contents

    CONTENTS INTRODUCTION ...............................3 INTENDED USE ..............................3 IMPORTANT SAFETY PRECAUTIONS—PLEASE READ BEFORE USE ............3 WARNINGS ..............................3 ASSEMBLY ................................5 UNPACKING...............................5 PRODUCT DESCRIPTION ..........................5 UPHOLSTERED BACK ASSEMBLY......................5 OPERATION ................................8 TENTE® CASTERS ............................8 SIDE TABLE OPERATION ..........................9 SIDE PANEL OPERATION ..........................10 RECLINER OPERATION..........................11 FIRST POSITION (UPRIGHT POSITION) ....................

  • Page 3: Introduction

    INTRODUCTION This manual contains assembly, operation, and maintenance instructions for the Lumex Clinical Care Recliners Series FR587W and FR587WH. Read the entire manual carefully before using your recliner, and refer to it during use if you have questions. If you have further questions, please call Graham-Field / Lumex Technical Support at 770.368.4700.
  • Page 4 WARNING: This product has a maximum weight capacity of 450 lb (204 kg), EVENLY DISTRIBUTED. WARNING: Casters must be locked at all times, except during transport. WARNING: Unauthorized modification of your recliner or the use of non-Lumex replacement parts may change the structure of the recliner and could create a hazardous condition, which may result in serious injury and will void the warranty.

  • Page 5: Assembly

    ASSEMBLY UNPACKING 1. Check for obvious damage to the carton or its contents. If damage is evident, please notify the carrier and your Graham-Field authorized distributor. 2. Remove all packaging materials from recliner base. PRODUCT DESCRIPTION upholstered back upholstered seat upholstered armrest padded push handle...
  • Page 6 3. Remove cardboard shipping retainers and tape from around gas spring cylinders. Rotate the hinge section on the gas spring so that it is perpendicular to the upholstered back, as shown at right. gas spring hinge Rotate HInge panel tabs side panel 4.
  • Page 7 8. Raise the upholstered back to vertical position. Tuck the plastic skirt at rear of upholstered back behind seat frame crossbrace. Align the hinges at the bottom of the gas springs with the holes in the U-brackets on the seat frame crossbrace.

  • Page 8: Operation

    OPERATION WARNING: Disconnection of the device: In case of emergency, always disconnect the device by removing the power cord plug from the power outlet. TENTE® CASTERS WARNING: Casters must be locked at all times, except during transport. black actuator tab green actuator tab All Lumex Clinical Care Recliners now feature the latest design, all-plastic casters from TENTE.

  • Page 9: Side Table Operation

    SIDE TABLE OPERATION side table (disengaged position) armrest To raise table: Raise the side table all the way up and slide in toward the armrest until " clevis pin attachment tabs engage slots in mount side table bracket. Press down lightly on (engaged position) side table table to ensure locking tabs...

  • Page 10: Side Panel Operation

    SIDE PANEL OPERATION For easy cleaning and access to the side and underside of the recliner, Lumex Clinical Care Recliners feature easy-to-remove side panels. To remove side panel: Depress the two push buttons panel tabs located on the lower sides of side panel frame.

  • Page 11: Recliner Operation

    RECLINER OPERATION The Lumex Series FR587W and FR587WH Recliners feature three positions for patient comfort. The fourth position is a Trendelenburg (or Shock Position) that must be activated by a caregiver. The Trendelenburg Position CANNOT be activated by a patient while in the recliner.

  • Page 12: Back Angle Adjustment

    Info: Due to the 450 pound weight capacity (when evenly distributed) the FR587W Recliner has two gas pistons to assist in the recline and return of the back. One piston assists during the rearward movement of the back, the other piston assists during the return of the back to an upright position.

  • Page 13: Gas Spring Troubleshooting Guide

    GAS SPRING TROUBLESHOOTING GUIDE Info: gas springs have been pre-adjusted at factory The gas spring on your recliner provides counterbalancing forces, and is self-locking for infinite, precise positioning. Unlocking the gas spring is controlled by actuating the lever located on the padded push handle on the back of the recliner. When the lever is actuated it pulls on the cable which in turn pulls on a hinge, depressing a button at the end of the gas spring rod.

  • Page 14: Lumex Clinical Care Recliners With Heat And Massage Feature

    LUMEX CLINICAL CARE RECLINERS WITH HEAT AND MASSAGE FEATURE INSTALLATION AND OPERATING GUIDE Series FR587WH Tools required: " hex wrench and Phillips Screwdriver WARNING: Important! Read and understand these instructions before assembling or using the Specialty Healthcare Seating Heat and Massage Unit. If you do not understand any part of these warnings, cautions or instructions, contact a healthcare professional for direction in the use of this product.

  • Page 15: Heat And Massage Unit Setup Instructions

    2. The control module, the brains of the system, is inside the junction box. Both are shown at right. 3. The power supply, which has an 8-foot power cord that Control Module (Junction Junction Box Power plugs into the wall power Box Cover Removed) Supply outlet, is shown at right.

  • Page 16: Heat And Massage Unit Operation Instructions

    9. Insert the Y-cable connector labeled UPPER into the back cushion cable connector also labeled UPPER until its locking tabs snap into place, as shown at right. 10. Insert the Y-cable connector labeled LOWER into the back cushion cable connector also labeled LOWER until its locking tabs snap into place, as shown at right.

  • Page 17: Heat And Massage Unit Troubleshooting Guide

    5. The selector switch has THREE HEAT FUNCTION SETTINGS and FOUR MASSAGE FUNCTION SETTINGS as follows: a. HEAT FUNCTION SETTINGS: 1) Press selector switch UP for Setting 1: High Heat, 106°F (41°C), brightest LED. 2) Press selector switch UP AGAIN for Setting 2: Medium Heat, 104°F (40°C), bright LED.
  • Page 18 e. Are all cable connections to the control module (in the junction box) in place per the instructions? Are the connectors fully engaged? f. Are any of the connectors damaged? g. Are the wires within the connectors attached to the pins? Each wire may have to be tugged lightly to check if the wire is still crimped to the pin.

  • Page 19: Care And Maintenance

    CARE AND MAINTENANCE WARNING: Inspect all components periodically and replace as needed. EVERY THREE MONTHS • Check and clean casters. • Tighten bolts in each leg that secure caster into frame. • Check brakes on casters. • Check and clean lock recline mechanism. • Check recliner mechanism for operation in all positions, including Trendelenburg Position, with assistant seated in recliner. UPHOLSTERY MAINTENANCE AND STAIN REMOVAL • Ordinary dirt: wash with warm water and a mild soap or detergent. • Stubborn dirt: using a soft bristle brush, wash with warm water and a mild soap or detergent.

  • Page 20: Cdc Recommendations

    The information published in this care guide refers to the performance of PERMABLOK3 products in specific tests conducted under laboratory conditions. Results may vary under actual conditions. This information is not a guarantee and does not relieve the user from the responsibility of the proper and safe use of the product and all cleaning agents.
  • Page 21 • Detergent and water are adequate for cleaning surfaces in nonpatient-care areas (e.g., administrative offices). Clean and disinfect high-touch surfaces on a more frequent schedule than minimal-touch housekeeping surfaces. Clean walls, blinds, and window curtains in patient-care areas when they are visibly dusty or soiled. • Do not perform disinfectant fogging in patient-care areas. • Avoid large-surface cleaning methods that produce mists or aerosols, or disperse dust in patient-care areas. • Follow proper procedures for effective uses of mops, cloths, and solutions.

  • Page 22: Ce Certification (Series Fr587W Only)

    CE CERTIFICATION (SERIES FR587W ONLY) Info: CE Certification applies ONLY to Series FR587W Deluxe Extra-Wide Clinical Care Recliner. CE Certification DOES NOT apply to Series FR587WH Deluxe Extra-Wide Clinical Care Recliner with Heat and Massage. GF Health Products, Inc. 2935 Northeast Parkway, Atlanta, Georgia 30360 Tel: 770.368.4700 Web: www.grahamfield.com EC Authorized Representative...

  • Page 23: Limited Warranty

    LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance.
