INSTRUCTIONS FOR USE
To avoid personal injury or damage to bed,
read all sections pertaining to the bed model before use.
GF Health Products, Inc. - www.grahamfield.com

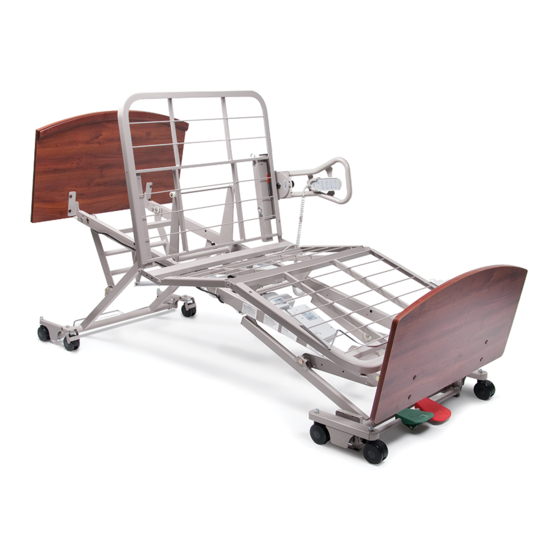

MODEL MATRIX 4000 SERIES
SHOWN AS STANDARD WIDTH
WITH OPTIONAL PEDAL LOCK AND
ADVANCED POSITIONING (APS)
FDA Recognized Standard:
ANSI/AAMI STD ES60601-1
Health Canada Recognized Standard:
CAN/CSA C22.2 No. 60601-1 (IEC 60601-1:2012-Ed.3.1)
Includes International Standards:
IEC 60601-1, IEC 60601-1-2, IEC 60601-2-52
EMC Standard:
IEC60601-1-2 Ed. 4.0
Matrix Series Instructions for Use 999-0908-190C AUG 2019
MATRIX
SERIES
FEATURES
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Basic American MATRIX Series and is the answer not in the manual?

Questions and answers

Related Manuals for Graham Field Basic American MATRIX Series

Summary of Contents for Graham Field Basic American MATRIX Series

  • Page 1 MATRIX ™ SERIES MODEL MATRIX 4000 SERIES SHOWN AS STANDARD WIDTH WITH OPTIONAL PEDAL LOCK AND ADVANCED POSITIONING (APS) FEATURES INSTRUCTIONS FOR USE To avoid personal injury or damage to bed, FDA Recognized Standard: read all sections pertaining to the bed model before use. ANSI/AAMI STD ES60601-1 Health Canada Recognized Standard: CAN/CSA C22.2 No.

  • Page 2: Table Of Contents

    MATRIX SERIES TABLE OF CONTENTS IMPORTANT SAFETY AND WARNING INFORMATION ................3 IMPORTANT SAFETY AND WARNING INFORMATION ..............4 ELECTROMAGNETIC COMPATIBILITY (EMC) INFORMATION ............4 ENTRAPMENT AND COMPLIANCE INFORMATION ................5 RECOMMENDED MAINTENANCE ......................... 6 RECOMMENDED CLEANING AND DISINFECTION ..................7 MECHANICAL AND ELECTRICAL INFORMATION ..................

  • Page 3: Important Safety And Warning Information

    MATRIX SERIES IMPORTANT SAFETY AND WARNING INFORMATION This product is a variable height, adjustable mattress The bed’s Hand Control Pendant Cable MUST BE platform. The expected service life of this product is ROUTED AND SECURED PROPERLY to ensure fifteen years. Beds manufactured by Basic American it does not become entangled and eventually severed Medical Products are designed for use within an during use.

  • Page 4: Important Safety And Warning Information

    MATRIX SERIES IMPORTANT SAFETY AND WARNING INFORMATION IMPORTANT: Powered air mattress surfaces may WARNING: This product can expose you to pose a risk of entrapment. Prior to use, ensure the chemicals including Di(2-ethylhexyl)phthalate therapeutic benefits outweigh the risk of entrapment. (DEHP) which is known to the State of California to cause cancer and birth defects or other The bed is intended for use within a temperature...

  • Page 5: Entrapment And Compliance Information

    MATRIX SERIES ENTRAPMENT AND COMPLIANCE INFORMATION On April 10, 2006, the FDA (U.S. Food and Drug It is also essential to have the correct bed components / Administration) released long-awaited guidelines for reducing accessories that correspond with the needs of the patient / the risk of bed entrapment: “Hospital Bed System Dimensional resident and the particular bed you have purchased.

  • Page 6: Recommended Maintenance

    MATRIX SERIES RECOMMENDED MAINTENANCE Regular maintenance of the Long Term Bed is necessary to ensure continuing proper and safe operation. Read and observe the following recommended maintenance schedule. RECOMMENDED MAINTENANCE INSPECTION PERIODS ITEM Inspect Every Every Performed Date Comments on Receipt 3 Months 6 Months Maintenance Inspection of All Components at Receipt of Shipment...

  • Page 7: Recommended Cleaning And Disinfection

    MATRIX SERIES RECOMMENDED CLEANING AND DISINFECTION WARNING: Unplug the bed from the electrical outlet before servicing or cleaning. Do not steam clean or pressure wash any part of bed. Do not use corrosive or powdered cleansers to clean any part of bed. Do not immerse or soak any part of bed.

  • Page 8: Mechanical And Electrical Information

    MATRIX SERIES MECHANICAL AND ELECTRICAL INFORMATION MATRIX SERIES-MECHANICAL NOTE: All dimensions are ±0.25 inches Specification 4100 (35") 4100 (42") 5100 (35") 6100 (35") Overall Bed Length (with boards and wallsaver) 76" 81.2" 81.2" 82.7" 81.2" 80" 83.1" 83.1" 83.9" 83.1" Sleep Deck Width 35"...

  • Page 9: Operating Conditions

    MATRIX SERIES The following warning labels have been placed on the bed to help protect you and the bed from damage. Do not remove any labels from the bed. WARNING! CAUTION WARNING: DO NOT LOWER BED WHEN OBJECTS ARE THIS BED IS SUITABLE FOR USE ONLY WITH Incompatible mattresses can create hazards.

  • Page 10: Bed Setup And Operation Instructions

    MATRIX SERIES BED SETUP AND OPERATION INSTRUCTIONS UNPACKING THE BED (MATRIX 4000 SERIES SHOWN) NOTE: DISCARD • Ensure all parts / components are included. END OF POWER Foam Block (4) • Check all bed components for obvious damage. CORD IS COILED Honeycomb Block (8) FOR SHIPPING •...

  • Page 11: Headboard And Footboard Assembly / Installation

    MATRIX SERIES HEADBOARD AND FOOTBOARD ASSEMBLY / INSTALLATION MATRIX 4000 SERIES MATRIX 4000 SERIES HEADBOARD INSTALLATION * 1. The headboard may come with four pre-installed inserts - if not already installed, assemble the four inserts into the outside of the headboard as shown above. 2.
  • Page 12 MATRIX SERIES MATRIX 4000 SERIES FOOTBOARD INSTALLATION 1. The footboard may come with four pre-installed inserts - if not already installed, assemble the four inserts into the outside of the footboard as shown above. 2. Position a right (#1) and left (#2) mounting bracket on the inside of the footboard with footboard mounting holes facing outward as 5.
  • Page 13 MATRIX SERIES MATRIX 5000 / 6000 SERIES MATRIX 5000 / 6000 SERIES HEADBOARD INSTALLATION * 1. The headboard may come with four pre-installed inserts - if not already installed, assemble the four inserts into the outside of the headboard as shown above. 2.
  • Page 14 MATRIX SERIES MATRIX 5000 / 6000 SERIES FOOTBOARD INSTALLATION 1. The footboard may come with four pre-installed inserts - if not already installed, assemble the four inserts into the outside of the footboard as shown above. 2. Position a right (#1) and left (#2) mounting bracket on the inside of the footboard with footboard mounting holes facing outward as 5.

  • Page 15: Standard Mattress Retainer Installation

    MATRIX SERIES STANDARD MATTRESS RETAINER INSTALLATION USING 35" OR 42" WIDTH MATTRESS RETAINER Matrix 5000 / 6000 Mattress Retainer DETAIL A: INSERT HEAD END Matrix 4000 MATTRESS RETAINER Mattress Retainer Inside holes for 76" Beds Outside holes for 80" Beds DETAIL B: INSERT FOOT END MATTRESS RETAINER...

  • Page 16: Matrix 4000 / 6000 Series Wireform Wallsaver Installation

    MATRIX SERIES MATRIX 4000 / 6000 SERIES WIREFORM WALLSAVER INSTALLATION WALLSAVER ASSEMBLY 1. Position the Wireform Wallsaver with bent end facing upward and tab ends facing inward as shown at right. 2. Determine the position desired (see WALLSAVER POSITIONS below). 3.

  • Page 17: Matrix 5000 Series Wireform Wallsaver Installation

    MATRIX SERIES MATRIX 5000 SERIES WIREFORM WALLSAVER INSTALLATION WALLSAVER ASSEMBLY 1. Position the Wireform Wallsaver with bent end facing upward and tab ends facing inward as shown above. 2. Determine the position desired (see WALLSAVER POSITIONS below). 3. Gently squeeze the wallsaver tab ends inward toward the center of the wallsaver and, holding the tabs parallel with the caster base holes, slide the tabs into the slots while letting the wallsaver gently expand outward.

  • Page 18: Plugging In The Footboard Staff Control

    MATRIX SERIES PLUGGING IN THE FOOTBOARD STAFF CONTROL STEP 1 - ATTACHING THE FOOTBOARD The Matrix series bed features a footboard Staff Control; however, the footboard is ordered separately with your bed because of the variety of board styles available. If ordered at the same time as the bed, the Staff Control Assembly and Shroud Cover will be pre-installed to the Footboard at the factory.

  • Page 19: Matrix Series Optional Accessories

    MATRIX SERIES MATRIX SERIES OPTIONAL ACCESSORIES MATRIX 4100 SERIES ONLY OPTIONAL ACCESSORIES Pivot Assist Bar Fixed Assist Bar ZA90350 ZA80300 Counter-Rotating Assist (set of 2) Head End Mattress Retainer ZA78400 35" Deck: 999-0822-001SP 42" Deck: 999-0902-001SP 4-Inch Length Extension Kit 35"...
  • Page 20 MATRIX SERIES MATRIX 5100 / 6100 SERIES ONLY OPTIONAL ACCESSORIES Pivot Assist Bar Fixed Assist Bar ZA90300 ZA85000 Counter-Rotating Assist (pair) 42" Width Extension Kit ZA91300 4-Inch Length Extension Kit (extends 35" & 42") ZA90840 ZA851000 GF Health Products, Inc. - www.grahamfield.com Matrix Series Instructions for Use 999.0908-190C...
  • Page 21 MATRIX SERIES MATRIX 4100 / 5100 / 6100 SERIES OPTIONAL ACCESSORIES Trapeze Adapter Kit Trapeze ZA90100 ZA78100 Long (Trendelenburg) WallSaver Side-WallSaver Bumper (set of 2) ZA90070 ZA86200 (35") ZA89200 (42") GF Health Products, Inc. - www.grahamfield.com Matrix Series Instructions for Use 999.0908-190C...
  • Page 22 MATRIX SERIES Board-Mounted Hand Control Pendant Holster Backup Battery & Battery Charger Call Customer Service at 1.770.368.4700 Backup Battery: 999-0831-003 Battery Charger: 999-0711-002 USB Phone Charger-Power Supply Kit Under-Bed-Light Kit (must be used with Staff Control and/or APS Hand Control Pendant) ZA90020 ZA90010 Advanced Positioning Hand Control with...
  • Page 23 MATRIX SERIES Advanced Positioning Staff Control ZL90000 Standard Positioning Staff Control ZL90050 Board-Mounted IV Socket Kit Edema Foot Ratchet Kit ZA19000 ZA90030 GF Health Products, Inc. - www.grahamfield.com Matrix Series Instructions for Use 999.0908-190C...
  • Page 24 MATRIX SERIES 1-Person Bed Transport Dolly (set) ZA89900 unassembled ZA89900 assembled with bed GF Health Products, Inc. - www.grahamfield.com Matrix Series Instructions for Use 999.0908-190C...

  • Page 25: Matrix Series Hand Control Pendant Operation

    MATRIX SERIES MATRIX SERIES HAND CONTROL PENDANT OPERATION MATRIX SERIES WITH MATRIX SERIES WITH OPTIONAL ACCESSORY: STANDARD POSITIONING ADVANCED POSITIONING MATRIX SERIES WITH HAND CONTROL PENDANT HAND CONTROL PENDANT TRENDELENBURG / REVERSE TRENDELENBURG HAND CONTROL PENDANT BUTTON FUNCTION BUTTON FUNCTION HAND CONTROL PENDANTOPERATION HEAD DECK ANGLE UP SET TO CHAIR POSITION...

  • Page 26: Bed Operation - Optional Staff Control Panel

    MATRIX SERIES BED OPERATION - OPTIONAL STAFF CONTROL PANEL * Staff Control with Advanced Positioning functions is shown above. Staff Control with Standard Positioning functions is shown at left; all standard functions operate the same as those defined above. GF Health Products, Inc. - www.grahamfield.com Matrix Series Instructions for Use 999.0908-190C...

  • Page 27: Bed Operation - Chair Position

    MATRIX SERIES BED OPERATION - CHAIR POSITION 1. Ensure the Chair position on the Staff Control panel is not locked out (orange lock icon). To unlock, press Lock icon button #1 and Chair icon button #2 (or “All Locked” button #3) simultaneously. 2.

  • Page 28: Bed Operation - Trendelenburg / Reverse Trendelenburg Position

    MATRIX SERIES BED OPERATION - TRENDELENBURG / REVERSE TRENDELENBURG POSITION 1. Ensure the Staff Control HI/LO function is not locked out (orange lock icon). To unlock, simultaneously press Key 1 and HI/LO Locked button 2. 2. To move the bed to Trendelenburg position (foot end up), press button 3.

  • Page 29: Matrix 5000 Series Bed Operation - Stationary / Low Roll Positioning

    MATRIX SERIES MATRIX 5000 SERIES BED OPERATION — STATIONARY / LOW ROLL POSITIONING The Matrix 5000 Series is sold as a “Low Roll” bed, giving the user the option of placing it in a stationary (non-moving) position or lowering it into a “low roll” position. This is accomplished by lowering the bed until the stationary foot pads rise off the floor and the rolling casters contact the floor surface for easy mobility.
  • Page 30 MATRIX SERIES MATRIX 4000 SERIES ELECTRICAL CABLING Optional Battery Cable Connector HEAD END CONTROL Power Cord Connector Power Cord Hand Control Pendant Control Box Actuator Cable HI/LO Actuator (Head End) Foot Actuator Actuator Cable Actuator Cable Head Actuator HI/LO Actuator (Foot End) Actuator Cable Control Cable...
  • Page 31 MATRIX SERIES MATRIX 5000 / 6000 SERIES ELECTRICAL CABLING Optional Battery Cable Connector HEAD END CONTROL Power Cord Connector Power Cord Hand Control Pendant Control Box Foot Actuator Actuator Cable Actuator Cable HI/LO Actuator (Head End) Actuator Cable Head Actuator HI/LO Actuator (Foot End) Actuator Cable...

  • Page 32: Troubleshooting

    MATRIX SERIES TROUBLESHOOTING NOTHING WORKS — NO POWER 1. Verify the outlet is supplying power. 6. Replace the Hand Control Pendant with a known good operating Pendant. If the bed 2. Ensure the power cord is not pinched, works, replace the Hand Control Pendant. frayed, or damaged in any way.

  • Page 33: Knee Doesn't Lower, Audible Solid Beep Warning

    MATRIX SERIES KNEE DOESN’T LOWER, AUDIBLE SOLID BEEP WARNING NOTE: As a result of the bed’s programmed If the solid beep is present when trying to capability to achieve APS positioning, lower the knee: the Knee Motor will not lower if the 1.

  • Page 34: General Troubleshooting Quick Reference

    MATRIX SERIES GENERAL TROUBLESHOOTING QUICK REFERENCE NOTE: Advanced Service Troubleshooting Procedures, Flow Charts and Service Components can be found at www.grahamfield.com. head motor into the knee Control Box port and Optional Battery operate the head motor with the knee Pendant Cable Connector button.

  • Page 35: Limited Warranty

    MATRIX SERIES LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance.
  • Page 36 Manufactured by: GF Health Products, Inc. One Graham-Field Way Atlanta GA 30340-3140 1.770.368.4700 Information contained herein is subject to change. The most current and complete product information can be found on our website. www.grahamfield.com © 2017, GF Health Products, Inc. All Rights Reserved. Basic American Medical Products and Matrix are trademarks of GF Health Products, Inc.
