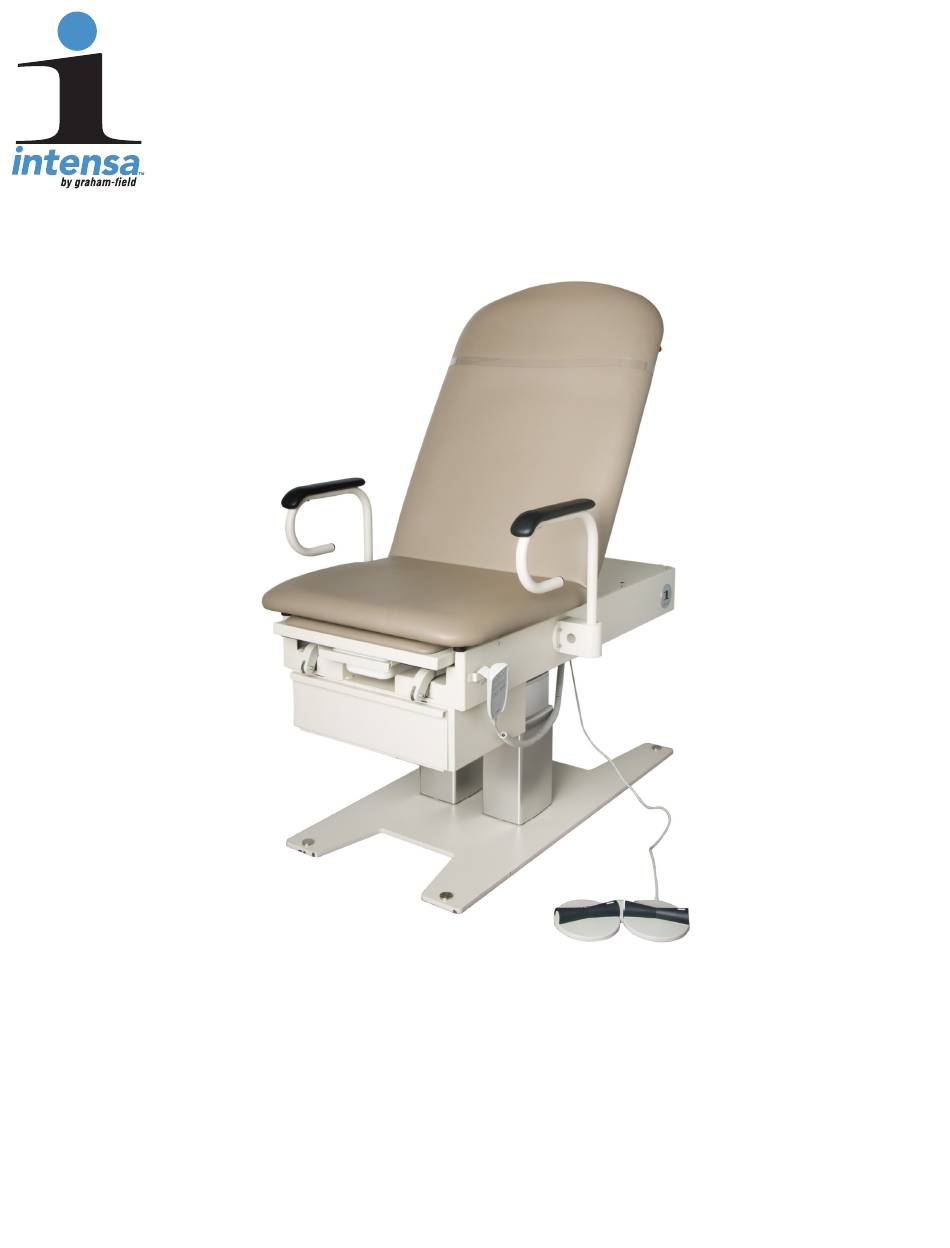

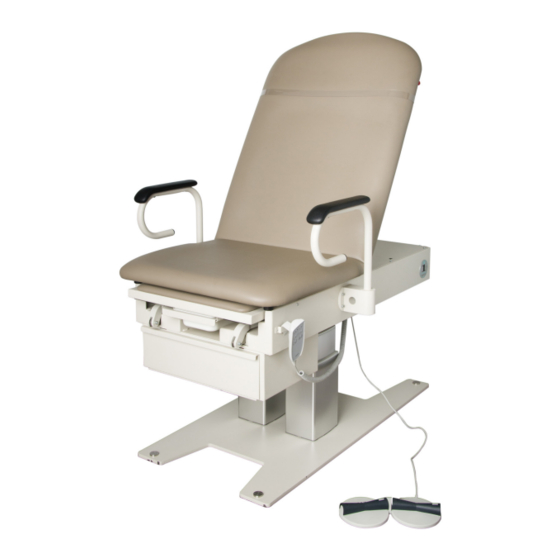

- Page 1 4 6 0 SER IES EXA M I NAT IO N TA B L E INSTALLATION AND OPERATION MANUAL SAVE THIS MANUAL FOR FUTURE USE. IN_460-INS-LAB-RevC23...
-
Page 2: Table Of Contents
CONTENTS 1 INTRODUCTION ..........................3 INTENDED USE ......................... 3 2 SAFETY PRECAUTIONS ........................ 4 WARNINGS ..........................4 3 FEATURES ............................6 EXAM TABLE COMPONENT IDENTIFICATION ..............6 4 UNPACKING ........................... 7 THE EXAM TABLE ................7 UNPACKING 5 INSTALLATION ..........................8 INSTALLATION ELECTRICAL REQUIREMENTS .............. -
Page 3: Introduction
Examination Table. This guide covers the use of the Intensa 460 Series Examination Table. Keep in mind that the basic safety procedures included in this manual are to be used as a guide only. You may find it necessary to develop your own unique methods for safely utilizing the Examination Table. -
Page 4: Safety Precautions
WARNINGS WARNING: Important! Read and understand these instructions before assembling or using the Intensa 460 Series Examination Table. If you do not understand any part of these warnings, cautions or instructions, contact a healthcare professional for direction in the use of this product. If the Intensa 460 Series Examination Table is not properly assembled, personal injury and damage to the 460 could result. - Page 5 WARNING: Check all parts for shipping damage before using. In case of damage, DO NOT USE the equipment. Contact the carrier or your Intensa authorized distributor for further instructions. WARNING: Unauthorized modification of the Examination Table or the use of non-Intensa replacement parts may change the structure of the table and could create a hazardous condition, which may result in serious injury and void the warranty.
-
Page 6: Features
FEATURES EXAM TABLE COMPONENT IDENTIFICATION Paper Cutter Paper Roll Holder Patient Assist Arms Pelvic Tilt Bar Legrest Pull-Out Patient Assist Arms Independent Procedure Storage Tray (foot pad does not need to be removed to Rear Leveling Feet access tray) Physician Assist Drawer Hand Control with Magnetic Lock H-Base... -
Page 7: Unpacking
UNPACKING THE EXAM TABLE UNPACKING WARNING: Because of weight, we recommend placing the exam table on a hand truck for transport to its installation location. s NOTICE: DO NOT use a knife or other sharp object to open packaging — damage could occur to the exam table upholstery or surface. -
Page 8: Installation
INSTALLATION WARNING: Do Not Use Stirrups, Legrest Pull-Out, or Upholstery to lift, move or slide the table. Personal injury and damage to exam table could occur. Lift only as described on previous page. INSTALLATION ELECTRICAL REQUIREMENTS WARNING: Use 115 VAC, 60 Hz. Failure to do so may result in electrical shock and may cause damage to the exam table. -
Page 9: Operation
WARNING: The Intensa 460 Series Examination Table maximum weight capacity is 600 lb (272 kg), EVENLY DISTRIBUTED. DO NOT exceed the maximum weight capacity. WARNING: The Intensa 460 Series Examination Table Duty Cycle is 10%, or two minutes of use followed by eighteen minutes of non-use. -
Page 10: 460 Exam Table High-Low Operation
460 EXAM TABLE HIGH-LOW OPERATION The exam table will stop once it reaches maximum or minimum height, whether operated with Hand Control Switch or Foot Control Switch. Exam Table and Back Up and Down Using Hand Control Lower the Back Raise the Back Raise the Table Lower the Table... -
Page 11: Exam Table Height Range
EXAM TABLE HEIGHT RANGE s NOTICE: This exam table is programmed with a limit switch. Once the table reaches its maximum height or minimum height, vertical movements of the table will stop. The bed height limit switch will activate if table requires more than 4 amps to raise. Minimum Height 18.5 in. -
Page 12: Physician's Assist Storage Cabinet
PHYSICIAN’S ASSIST STORAGE CABINET s NOTICE: The drawer front can be used as a shelf. The maximum weight that can be supported is 12 lb (5.4kg). The drawer front should not be lower than horizontal position; if drawer front is lower than horizontal postion, do not use drawer front as a shelf. The Physician’s Assist Storage Cabinet has the following features. -
Page 13: Patient Assist Arm
PATIENT ASSIST ARM Assist Arm Outward Assist Arm Position Rear Assist Arm Position Forward Assist Arm Position Refer to pictures above. • Forward position is the normal Patient Assist Arm use position. • Outward Position: Rotate Assist Arms 90 degrees outward by raising arms and turning them to outward position. -
Page 14: Pelvic Tilt Operation
PELVIC TILT OPERATION Pelvic Tilt Up Position Pelvic Tilt Down Position 1. Lift seat portion of upholstery to raise and lower pelvic tilt. 2. Once pelvic tilt is in desired position, lower the seat. www.intensa.net IN_460-INS-LAB-RevC23... -
Page 15: Troubleshooting
TROUBLESHOOTING If you have a problem with your Intensa exam table, contact Intensa Tech Support at 1.336.884.4096 for further information. Do not attempt to repair components or parts on your exam table, as this may invalidate your warranty or cause further problems that may result in patient injury. -
Page 16: Maintenance
NOTICE — POSSIBLE EQUIPMENT DAMAGE HAZARD: Steam cleaning and pressure washing of exam table is not recommended and may void warranty. WARNING: Service and repair of the Intensa 460 Series Examination Table MUST be performed by qualified personnel ONLY. -
Page 17: Maintenance
Soils or Use neutral soapsuds and lukewarm water; DO NOT use harsh cleansers, solvents or Stains detergents Hard-To- Use standard household / vinyl cleansers and a soft bristle brush on troublesome Clean Spots spots or stains; presoak heavy, dried-on soil Laundering Laundering Vinyl-laminated, Polyurethane-coated, or Rubber-coated fabric IS NOT recommended;... -
Page 18: Certification
CERTIFICATION Certification UL 60601.1 10 SPECIFICATIONS Exam Table Load Rating (Evenly Distributed) 600 lb (272 kg) Legrest Support Maximum Weight Capacity 50 lb (23 kg) Patient Assist Arm Maximum Weight Capacity 100 lb (46 kg) Table Height Range 18.5" to 35.5" ± .5" (47 cm to 90 cm ± 1.3 cm) Back Angle Range 0°... -
Page 19: Limited Warranty
11 LIMITED WARRANTY SCOPE OF WARRANTY Intensa, Inc. (“Intensa”) warrants to the original purchaser only that it will replace or repair components, at Intensa’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable Intensa instructions and manuals, including proper use and maintenance. -
Page 20: Key To Symbols
12 KEY TO SYMBOLS The following symbols are used on Intensa product labels. Symbol Meaning Symbol Meaning Protective Earth Fragile, Handle with Care Earth Ground Electrical and Electronic Equipment General Warning Sign Consult Instructions for Use Shock Hazard Caution Pinch Point European Authorized Representative Disconnect before Service... -
Page 21: Appendix
ELECTROMAGNETIC EMISSIONS The Intensa 460 Series Examination Table is intended for use in the electromagnetic environment specified below. The customer or the user of the Intensa 460 Series Examination Table should assure that it is used in such an environment. - Page 22 13.3 ENCLOSURE PORT IMMUNITY TO RF WIRELESS COMMUNICATIONS EQUIPMENT Test Maximum MMUNITY Band Service Modulation Distance frequency power TEST LEVEL (MHz) (MHz) (V/m) Pulse modulation 380 –390 TETRA 400 18 Hz GMRS 460, ± 5 kHz deviation 430 – 470 FRS 460 1 kHz sine Pulse...
- Page 23 13.4 INPUT AC POWER PORT MMUNITY TEST LEVELS Basic EMC Phenomenon standard Professional healthcare facility environment Electrical fast transients / IEC 61000-4-4 ± 2 kV a) l) o) bursts 100 kHz repetition frequency a) b) j) o) IEC 61000-4-5 ± 0,5 kV, ± 1 kV Surges Line-to-line a) b) j) k) o)
- Page 24 13.4 CONTINUED that do not have a surge protection device in the primary power circuit may E EQUIPMENT ME SYSTEMS be tested only at ± 2 kV line(s) to earth and ± 1 kV line(s) to line(s). Not applicable to C LASS II ME EQUIPMENT ME SYSTEMS Direct coupling shall be used.
- Page 25 13.6 SIGNAL INPUT / OUTPUT PARTS PORT MMUNITY TEST LEVELS Basic EMC Phenomenon standard Professional healthcare facility environment IEC 61000-4-2 ± 8 kV contact LECTROSTATIC DISCHARGE ± 2 kV, ± 4 kV, ± 8 kV, ± 15 kV air Electrical fast IEC 61000-4-4 ±...
- Page 26 13.7 RECOMMENDED SEPARATION DISTANCES BETWEEN PORTABLE AND MOBILE RF COMMUNICATIONS EQUIPMENT AND INTENSA 460 SERIES EXAMINATION TABLE The Intensa 460 Series Examination Table is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Intensa 460...
-
Page 27: Index
14 INDEX Maintenance 17 Appendix: guidance, electromagnetic emissions 21 Notes to section 13 26 Back angle range 11 NOTICE statement, significance 4 CAUTION statement, significance 4 Operation 9 Certification 18 Operation safety 9 Cleaning 16 Component Identification 6 Patient assist arm 13 Contraindications to intended use 3 Pelvic tilt operation 14 Physician’s assist storage cabinet 12... - Page 28 Manufactured By: Intensa, Inc. | 1801 S. Elm Street High Point, NC 27260 | USA Made in U.S.A. +1 770.368.4700 Intensa, Inc. is a wholly owned subsidiary of GF Health Products, Inc. © 2021, GF Health Products, Inc. All Rights Reserved. Information contained herein is subject to change without notice.
