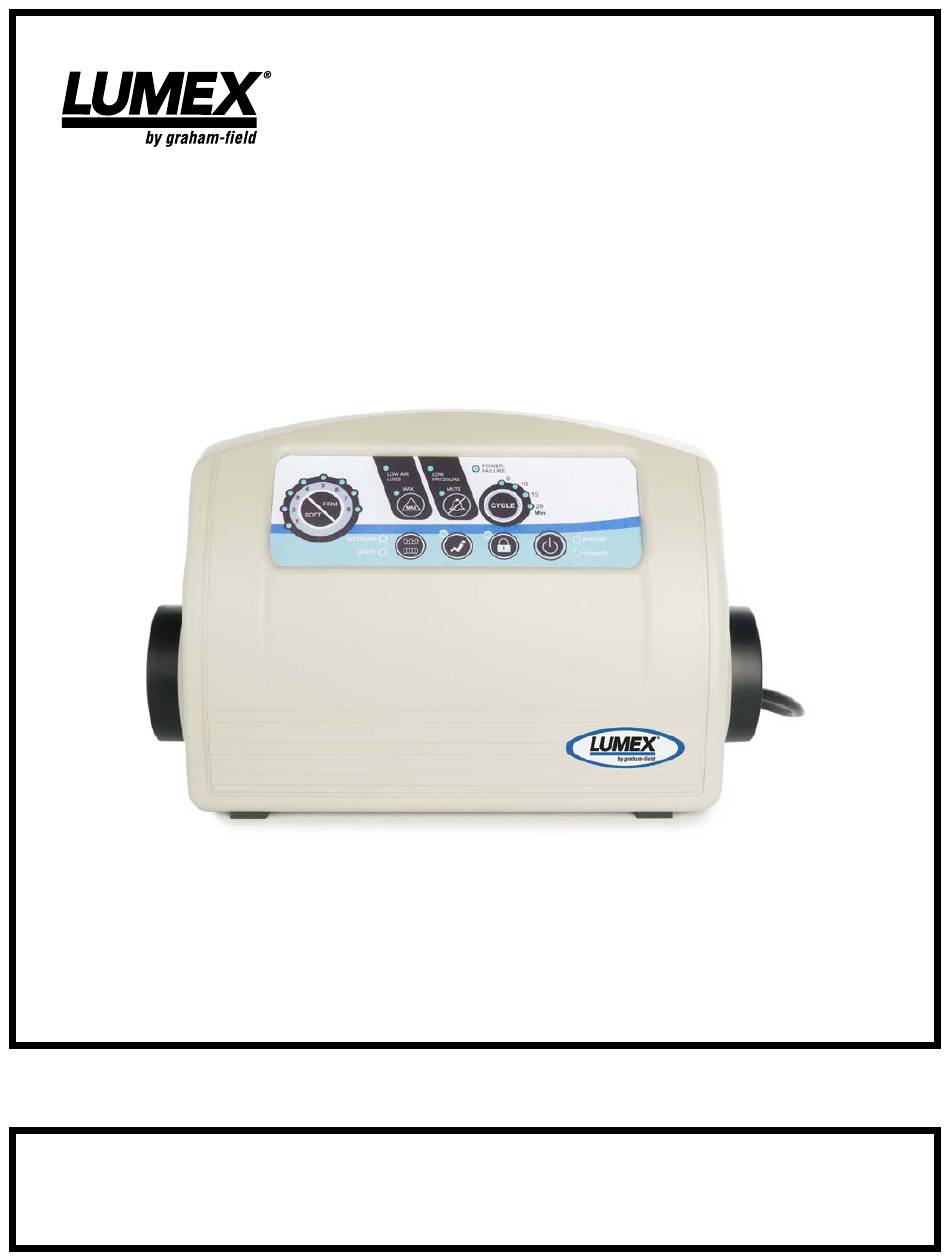

- Page 1 SELECT SERIES LS400 ALTERNATING PRESSURE / LOW AIR LOSS MATTRESS SYSTEM USER MANUAL LS400-INS-Lab-RevA20 Read this manual before operating your Mattress System. Save this manual for future use.
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 INTENDED USE . -
Page 3: Introduction
INTRODUCTION Congratulations on your purchase of the Lumex LS400 Alternating Pressure / Low Air Loss Mattress System . The system utilizes On-Demand low air loss technology with a specialized mattress design that provides pressure management for the treatment of pressure ulcers . This guide covers its use . -
Page 4: Safety Precautions
SAFETY PRECAUTIONS WARNING: Important! Read and understand these instructions before assembling or using the Select Mattress System . If you do not understand any part of these warnings, cautions or instructions, contact a healthcare professional for direction in the use of this product . If the Select Mattress System is not properly assembled, personal injury and damage to the Select Mattress System could result . - Page 5 WARNING: Do not leave this product unattended when plugged in . WARNING: Always use close supervision when this device is used by or near children, the physically challenged, or those who require close supervision . WARNING: Do not modify this product. Unauthorized modification of your Mattress System could cause personal injury, property damage, and void the warranty . WARNING: The Mattress System has a minimum weight capacity of 90 lb (41 kg) and maximum weight capacity of 450 lb (205 kg), EVENLY DISTRIBUTED .
- Page 6 WARNING: If pain, irritation, numbness, swelling, or redness occurs discontinue use and contact a healthcare professional . WARNING: Patient Entrance / Exit – Caregiver should always aid patient in exiting the bed . Make sure a capable patient knows how to get out of bed safely (and, if necessary how to release the side rails) in case of fire or other emergency.
- Page 7 WARNING: Fluids – Avoid spilling fluids on pump controls. If spills do occur, unplug unit immediately and clean fluid from pump wearing rubber gloves while it is unplugged to avoid any possibility of shock. Once fluid is removed, check operation of components in area of spill . Fluids remaining on controls can cause corrosion, which may cause components to fail or operate erratically, possibly producing potential hazards for patient and staff . WARNING: Power Cord – Ensure power cord is kept free from all pinch points and moving parts and is not trapped under casters .
-
Page 8: Features
FEATURES PUMP AND MATTRESS SYSTEM Description The Lumex LS400 Alternating Pressure / Low Air Loss Mattress System is a specialized mattress replacement unit that utilizes on-demand low air loss technology with a specialized mattress design that provides pressure management for the treatment of pressure ulcers . The 2:1 alternating function also provides active prevention for pressure relief, especially for those in acute care and long term care settings (the cells inflate and deflate in a 2:1 cycle, meaning half of the body is always supported at any one time) . -
Page 9: Pump Front Panel
Pump front panel Pump rear view MATTRESS FEATURES • Individual air cushion design for maximum pressure distribution . • Mattress design provides true low air loss therapy . • Cell on cell design for “zero” pressure comfort during loss of power . LS400-INS-Lab-RevA20... -
Page 10: Handling Procedures
HANDLING PROCEDURES UNPACKING 1 . Check for any obvious damage to the carton or its contents . If damage is evident, notify the carrier or your GF authorized distributor . 2 . Open shipping container . s NOTICE: Do not use sharp instruments to open boxes . Damage to mattress could result . 3 . -
Page 11: Setup
SETUP WARNING: Always use a standard healthcare bed frame with appropriate safeguards and protocols . Frame and side rails must be properly sized relative to the mattress to help minimize any gaps that might entrap a patient’s head or body. MATTRESS INSTALLATION 1 . Remove existing mattress from bed frame . 2 . -
Page 12: Operating Instructions
OPERATING INSTRUCTIONS OPERATION WARNING: During operation, caregivers should check the patient and control unit setting at least every two hours . Skin Care • Remove excess moisture and keep skin dry and clean . • Check patient’s skin regularly, particularly in areas where incontinence and drainage occur . •... -
Page 13: Static Function
3 . Press front panel MAX button again to release the AUTO FIRM inflation mode . If not released, the Fast inflation mode will stop once max inflation is achieved reverting back to previous memory or default setting . The AUTO FIRM mode will stay activated for twenty minutes before reverting to previous memory or default setting (default setting is ALTERNATE, COMFORT LEVEL 3) . -
Page 14: Alternate Function
ALTERNATE function Press the front panel MODE button, shown at above left, to select ALTERNATE mode and enable the two-one alternate function . Press the CYCLE button, shown at above right, to adjust CYCLE time to 5, 10, 15 or 20 minutes . If STATIC Function is selected, the CYCLE LED will not illuminate;... -
Page 15: Fowler Function
FOWLER function Press the FOWLER button, shown above, to increase mattress firmness by two comfort level settings (settings are 1 - 8, SOFT - FIRM) . Info: The FOWLER function helps prevent the patient from bottoming out when positioned in a chair position. -
Page 16: Cpr Deflation
POWER and LOW PRESSURE alarm The pump is equipped with an audible POWER failure and LOW PRESSURE alarm which enables the pump to audibly alert the caregiver to a POWER failure or LOW PRESSURE issue with the mattress system . The LOW PRESSURE alarm can be muted for twenty minutes by pressing the pump front panel MUTE button, shown above . -
Page 17: Care And Maintenance
CARE AND MAINTENANCE Proper care and maintenance are essential to keeping your Select Mattress System in a safe operating condition . In addition to inspecting the unit before each use, periodic maintenance checks should be done . WARNING: During operation, caregivers should check the patient and control unit setting at least every two hours WARNING: Inspect the mattress before each use . -
Page 18: Cleaning And Disinfection
CLEANING AND DISINFECTION WARNING: Switch off the electrical supply to the pump and disconnect the power cable from the wall before cleaning and disinfection . WARNING: Wear protective clothing when performing cleaning procedures . s NOTICE: Do not use Phenol based cleaning solutions . It is very important to have a strict cross infection, cleaning and disinfection policy in line with current infection control guidelines . -
Page 19: Maintenance
MAINTENANCE Replace air filter WARNING: Switch off the electrical supply to the pump and disconnect the power cable from the wall before replacing the air filter. air filter cover 1 . Remove air filter cover (shown above), remove filter, and replace with new filter . 2 . Replace air filter cover . 3 . -
Page 20: Troubleshooting
TROUBLESHOOTING The following list of problems, their causes and solutions will assist you in determining what may be causing your Select Air Mattress not to function as designed . If a problem occurs which is not listed below, contact GF Tech Support at 1 .770 .368 .4700 for further information . Do not attempt to repair components or parts, as this may invalidate your warranty or cause further problems that may result in patient injury . -
Page 21: Specifications
SPECIFICATIONS Mattress Overlay (Applied Part) Model Description Specification LS400 Dimensions (L x W x H) 80 in. x 36 in. x 8 in. (203.2 cm x 91.4 cm x 20.3 cm) Weight 17.65 lb (8.01 kg) Material Top Cover PU laminated nylon Base Cover PVC laminated polyester Control Unit (Air Pump) -
Page 22: 10 Limited Warranty
10 LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc . (“GF”) warrants to the Original Purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service . All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance . -
Page 23: 11 Emc Related Notification
11 EMC RELATED NOTIFICATION WARNING: Medical electrical equipment needs special precautions regarding EMC and needs to be installed according to the EMC information provided . Careful consideration of this information is essential when stacking or collocating equipment and when routing cables and accessories . - Page 24 Manufacturer’s declaration-electromagnetic immunity The LS400 is intended for use in the electromagnetic environment (for home and professional healthcare) specified below. The customer or the user of the LS400 should assure that it is used in such an environment. Immunity test IEC 60601 Compliance level Electromagnetic...
- Page 25 Manufacturer’s declaration-electromagnetic immunity The LS400 is intended for use in the electromagnetic environment (for home and professional healthcare) specified below. The customer or the user of the LS400 should assure that it is used in such and environment. Immunity test IEC 60601 test level Compliance level Electromagnetic environment-guidance...
- Page 26 Manufacturer’s declaration-electromagnetic immunity Test specifications for ENCLOSURE PORT IMMUNITY to RF wireless communications equipment The LS400 is intended for use in the electromagnetic environment (for home and professional healthcare) specified below. The customer or the user of the LS400 should assure that it is used in such an environment. Compliance LEVEL Test...
-
Page 27: 12 Index
12 INDEX Pump 8 Pump and mattress system 8 Alarm MUTE button 16 Pump front panel 9 ALTERNATE function 14 Pump installation 11 Assembly instructions 11 Pump rear view 9 Care and maintenance 17 Safety precautions 4 CAUTION statement, significance 4 Safety statements, significance of 4 Cleaning 18 Setup 11... - Page 28 1.770.368.4700 Information contained herein is subject to change. The most current and complete product information can be found on our website. www.grahamfield.com © 2020, GF Health Products, Inc. All Rights Reserved. Lumex is a trademark of GF Health Products, Inc. GF Health Products, Inc.
