- Page 1 R7700 Gloss Meter Instruction Manual 1.800.561.8187 information@itm.com www. .com...
-
Page 2: Table Of Contents
Product Support ..................9 Introduction Thank you for purchasing your REED R7700 Gloss Meter. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 3: Product Quality
Product Quality This product has been manufactured in an ISO 9001 facility and has been calibrated during the manufacturing process to meet stated product specifications. Safety • Never attempt to repair or modify your instrument. Dismantling your product, other than for the purpose of replacing batteries, may cause damage that will not be covered under the manufacturer's warranty. Servicing should only be provided by an authorized service center. -
Page 4: Specifications

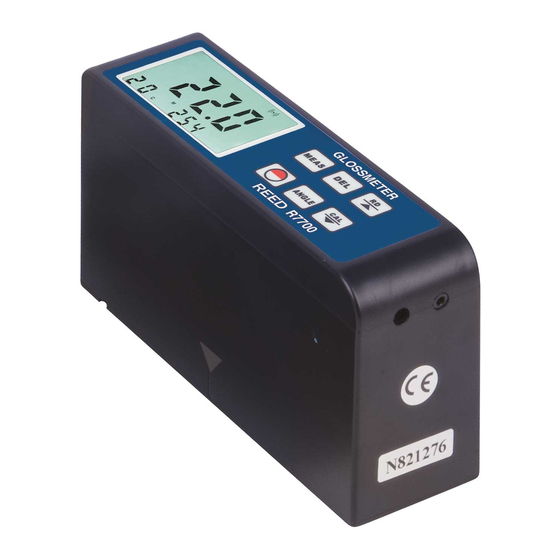

Rechargeable Lithium Battery Internal Memory: Yes (up to 254 datapoints) Product Certifications: CE/RoHS Operating Temperature: 32 to 104°F (0 to 40°C) Storage Temperature: -4 to 140°F (-20 to 60°C) Operating Humidity Range: 0 to 85% Dimensions: 5.5 x 1.8 x 3" (140 x 45 x 75mm) Weight: 10.76oz (305g) Instrument Description 1. Display 2. Measurement Button GLOSSMETER 3. Delete Button 4. Data Recall/Up Button 5. Power Button R7700 6. Angle Button 7. Calibration/Down Button 1.800.561.8187 information@itm.com www. .com... -
Page 5: Operating Instructions
Operating Instructions Power ON/OFF Turn the meter on by pressing the POWER button. To turn the meter off, press, hold and release the POWER button when OFF appears on the LCD. Calibration Press the ANGLE button to select the right measuring geometry. Place the unit into the included calibration standard. -
Page 6: Measuring Geometry
When single mode is selected, the measurement indicator will only appear at the top right of the LCD when a measurement will be taken by the user (see Taking Single Measurements section for details). Measuring Geometry Gloss is classed as either low, semi or high gloss. In order to determine the best measuring geometry for your test start at a 60° angle as it is considered the universal measurement angle. The angle is selected based on the anticipated gloss range, as shown in the table below. -
Page 7: Data Recall
Each continuous result is automatically logged into memory. Note: This mode is used to measure large area samples and assess the homogeneity of large-area samples. Data Recall While in measuring mode as indicated by "M" on the display, press the RD button to access logged data. "R"... -
Page 8: Accessories And Replacement Parts
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. -
Page 9: Product Disposal And Recycling
Your product contains electronic components and must be disposed of separately from standard waste products. Product Support If you have any questions on your product, please contact your authorized REED distributor or REED Instruments Customer Service by phone at 1-877-849-2127 or by email at info@reedinstruments.com. Please visit www.REEDINSTRUMENTS.com for the most up-to-date manuals, datasheets, product guides and software. - Page 10 TesT & MeasuRe wITh ConfIdenCe CheCk ouT ouR laTesT PRoduCTs! 1.800.561.8187 information@itm.com www. .com...
