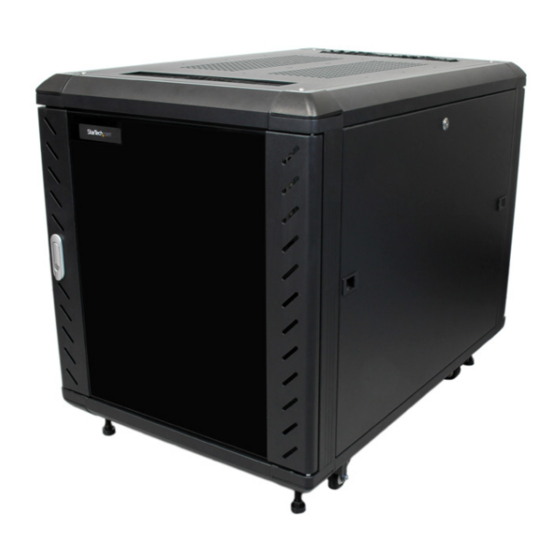

12U 36in Depth Enclosed Server
Cabinet with Casters
RK1236BKF
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 03/23/2016
*actual product may vary from photos
Advertisement
Related Manuals for StarTech.com RK1236BKF
Summary of Contents for StarTech.com RK1236BKF
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 03/23/2016...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Packaging Contents ................1 Installation ....................3 Specifications ..................6 Technical Support ..................7 Warranty Information ................7 Instruction Manual... -
Page 4: Packaging Contents
Packaging Contents Name Rack Components Casters and Hardware Side Panel and Frame Casters Upper and Lower Beams Brake Casters Top Panel M6-10mm Self Tapping Screws Bottom Panel with Grommet Leveling Feet Solid Bottom Panel Front / Back Door Keys Front Door Assembly Side Panel Keys Rear Door Assembly Plastic Corner Caps... - Page 5 Instruction Manual...
-
Page 6: Installation
Installation 1. Attach the Side Panel and Frame (1) assemblies to the Upper and Lower Beams (2) using the M8-25mm Hex Screws (9), M8 Lock Washers (10) and the M8 (13 mm) Allen Key (15). 2. Install the Plastic Corner Caps (8) using the M4-10mm Phillips Screws (11). Instruction Manual... - Page 7 3. (Optional) Install the Casters (20) / Brake Casters (21) on the bottom of the rack using the M6-10mm Tapping Screws (22). Then thread the Leveling Feet (23) into the pre-threaded holes. 4. Turn the rack right-side up and install the Bottom Panels with Grommet (4) at the front and back of the rack, and the Solid Bottom Panel (5) in the middle.
- Page 8 5. Install the Top Panel (3) and secure using the M6-12mm Hex Screws (13). 6. Install the Front Door Assembly (6) and Rear Door Assembly (7) using the Door Hinge Pins (12). Instruction Manual...
-
Page 9: Specifications
Specifications U Height Material Steel Rack Type 4-Post Frame Type Enclosed Cabinet Color Black Max. Weight Capacity 1763.7lbs (800kg) Minimum Mounting Depth 5.9in (150mm) Maximum Mounting Depth 28.7in (730mm) Dimensions (WxHxD) 23.62 x 26.1 x 35.43in (600 x 663 x 900mm) Height with Casters 29.05in (738mm) Weight... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
