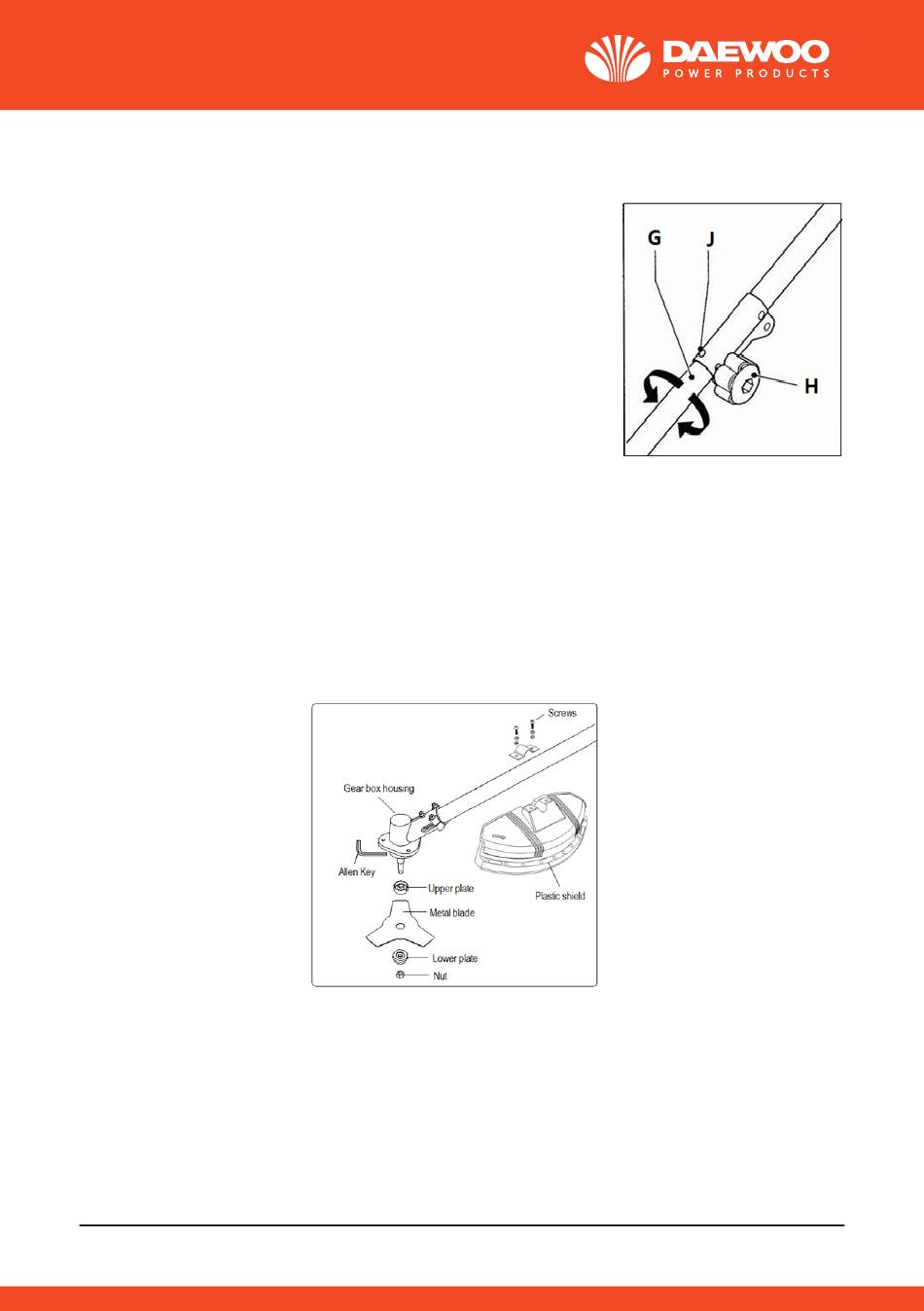

• Adjusting the cutting angle
The tube can be adjusted to the desired angle to
achieve the required cutting angle.
• Slacken the locking knob (H).
• Turn the tube (G) to the required position.
• Make sure that the pawl (J) clicks into one of
the holes.
• Securely tighten the locking knob.
• INSTALLING SHIELD & BLADE
• Fit the plastic guard shield to the tube in the position as the picture.
• Fit the lining to the gear box housing.
• Secure metal blade between upper and lower plate with nut.
Note: Make sure that cotter pin is installed.
WARNING / CAUTION
EXCESSIVE VIBRATION STOP THE MACHINE IMMEDIATELY!
Excessive vibration of blade means that it is not properly installed. Stop
the motor immediately and check the blade. Blade not properly installed
will cause injury.
