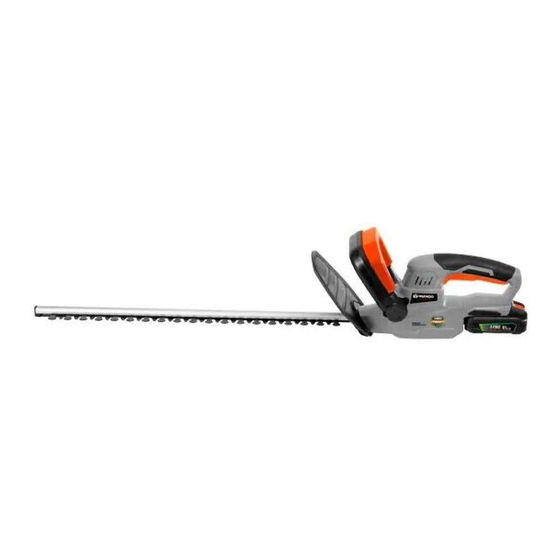

- Page 1 DALHT18-1 Lithium hedge trimmer USER'S MANUAL www.daewoopowerproducts.com Manufactured under license of Daewoo International Corporation, Korea...
-
Page 2: Table Of Contents
INDEX 1. SYMBOLS .............................. 3 2. SAFETY INSTRUCTIONS ........................4 3. ADDITIONAL SAFETY WARNING FOR HEDGE TRIMMER ..............6 4. ASSEMBLY .............................. 9 5. DESCRIPTION ............................11 6. OPERATION ............................12 7. EXPLODED VIEW AND SPARE PART LIST ................... 14 EC DECLARATION OF CONFORMITY .................... -
Page 3: Symbols
1. SYMBOLS The following symbols are used in the user manual or on the product: Class II machine - Double insulation - Read the user manual. You don’t need any grounding plug. Denotes risk of personal injury, loss of life or damage to the tool in case of Time interval microfuse. -
Page 4: Safety Instructions
2. SAFETY INSTRUCTIONS Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference. GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. - Page 5 power tool in unexpected situations. • Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
-
Page 6: Additional Safety Warning For Hedge Trimmer
• Never use this appliance without the blade guard fitted. It must always remain fitted. • Only use spare parts and attachments supplied by Daewoo. Use of attachments other than those supplied or recommended by Daewoo will invalidate your guarantee and could be dangerous. - Page 7 • Always wear protective goggles. • Always wear gloves. • Only use the trimmer in daylight. • Ensure the ventilation openings are clear of debris at all times. • Ensure there are no people of animals within 5 metres of your trimming area. •...
- Page 8 K=1.5 m/s 1.937 m/s Vibration value Only use the following batteries of the Daewoo power 20V battery platform. Using any other batteries could cause serious injury or damage the tool. Vibration level The vibration emission level stated in this instruction manual has been measured. It may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned.
-
Page 9: Assembly
4. ASSEMBLY... -
Page 11: Description
Before any work on the power tool, remove the battery. The battery must be charged before first use. 5. DESCRIPTION The numbers in the text refer to the diagrams on page 9-10. 1. On/Off button 2. Battery 3. Battery unlock button 4. -
Page 12: Operation
• Turn the battery (2) to upside down position and slide it onto the charger (11) as shown in Fig. E. • Push the battery until it is fully pushed into the slot. • Plug the charger plug into an electrical outlet and wait for a while. The LED indicators (12) on the charger (11) will lighten up and show the charger status. - Page 13 Trimming a hedge - best method • Apart from hedges the hedge trimmer may also be used for cutting bushes. • The best cutting effect is achieved when holding the blade at an angle to the of approx. 15°. • The opposite rotating knives cut on both sides, and it is therefore possible to trim the hedge in both directions.
- Page 15 1. Knife set 2. M5 nuts 3. Support rod 4. Upper blade 5. Positioning liner 6. Lower blade 7. Blade washer 8. Mechanism screws 9. Bullet pad 5 10. Inner hexagon screw 11. Dustproof sponge 12. Positioning plate 13. Open retaining ring 5 14.
-
Page 16: Ec Declaration Of Conformity
2.20kg 212mm 915mm 83 mm The DAEWOO Products authorized representative declares that these products described under "technical data" are in compliance with: Machinery Directive (2006/42/EC), Electromagnetic Compatibility Directive (2014/30/EU), EN 55014-1:2017 and EN 55014-2:2015. is herewith con rmed to ful ll all the relevant provisions of - A-weighed sound power level according to 8.6 of EN ISO 3744... -
Page 17: Warranty
WARRANTY CARD Product model Date of sale Company Serial number Client's signature Username The product is in good conditions and fully complete. Read and agree the terms of the warranty. GUARANTEE The warranty period starts from the date of sale of the products and covers 2 years for all power products. During the warranty period, free failures caused due to the use of poor-quality materials in the production and manufacturer workmanship admitted fault are removed. - Page 18 Manufactured under license of Daewoo International Corporation, Korea...
