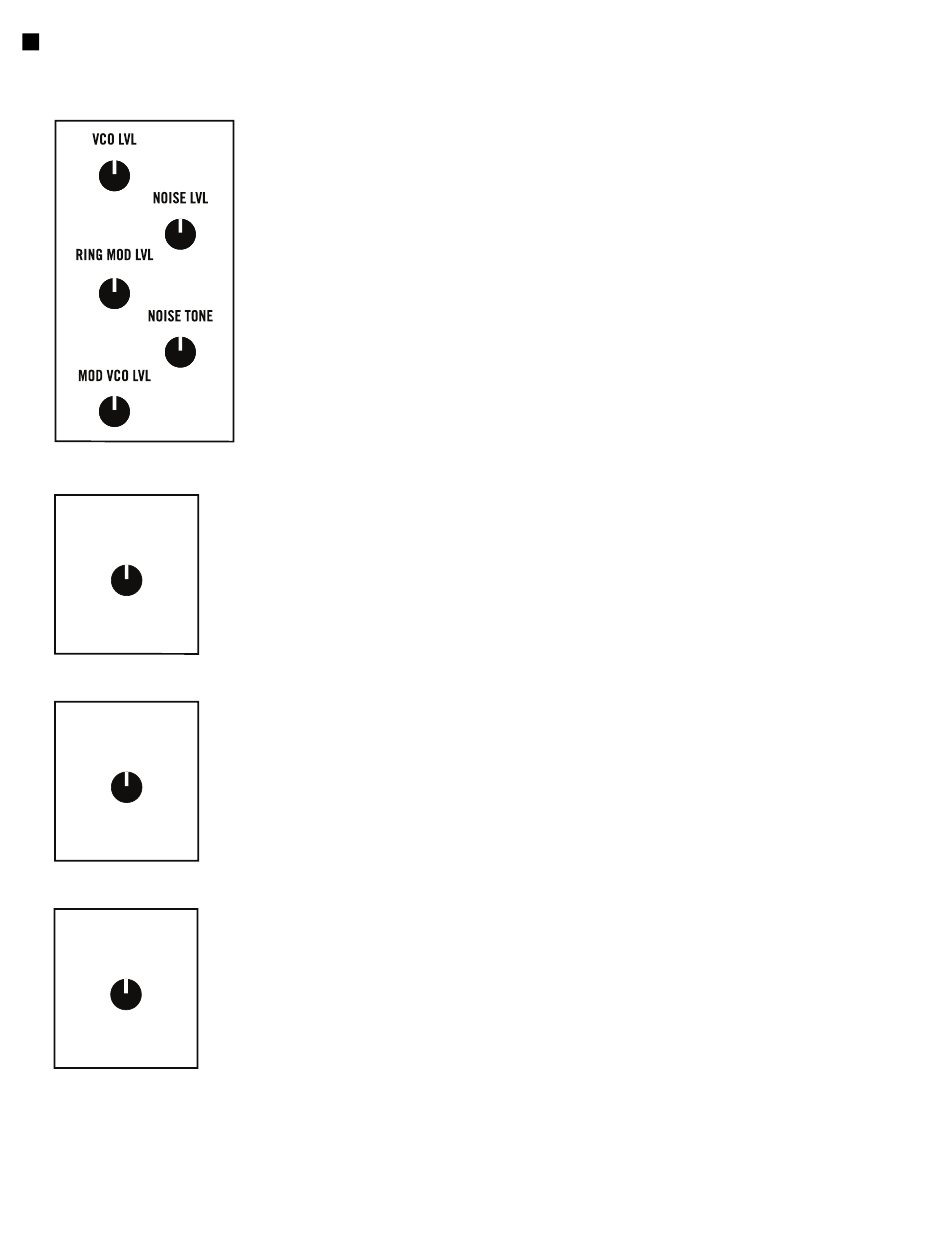

THE MIXER

VCO LVL
RING MOD LVL
MOD VCO LVL
The two oscillators, as well as their RING MOD result, are summed in the
MIXER. Each channel of the Labyrinth MIXER will begin to saturate and
overdrive when increased above 12 o'clock. The MIXER also features a
variable-tone NOISE generator.
VCO LVL
This sets the level of the VCO. It overdrives above 12 o'clock.
RING MOD LVL
This sets the level of the RING MOD (VCO and MOD VCO are combined in the
ring modulator). It overdrives above 12 o'clock.
MOD VCO LVL
This sets the level of the MOD VCO. It overdrives above 12 o'clock.
