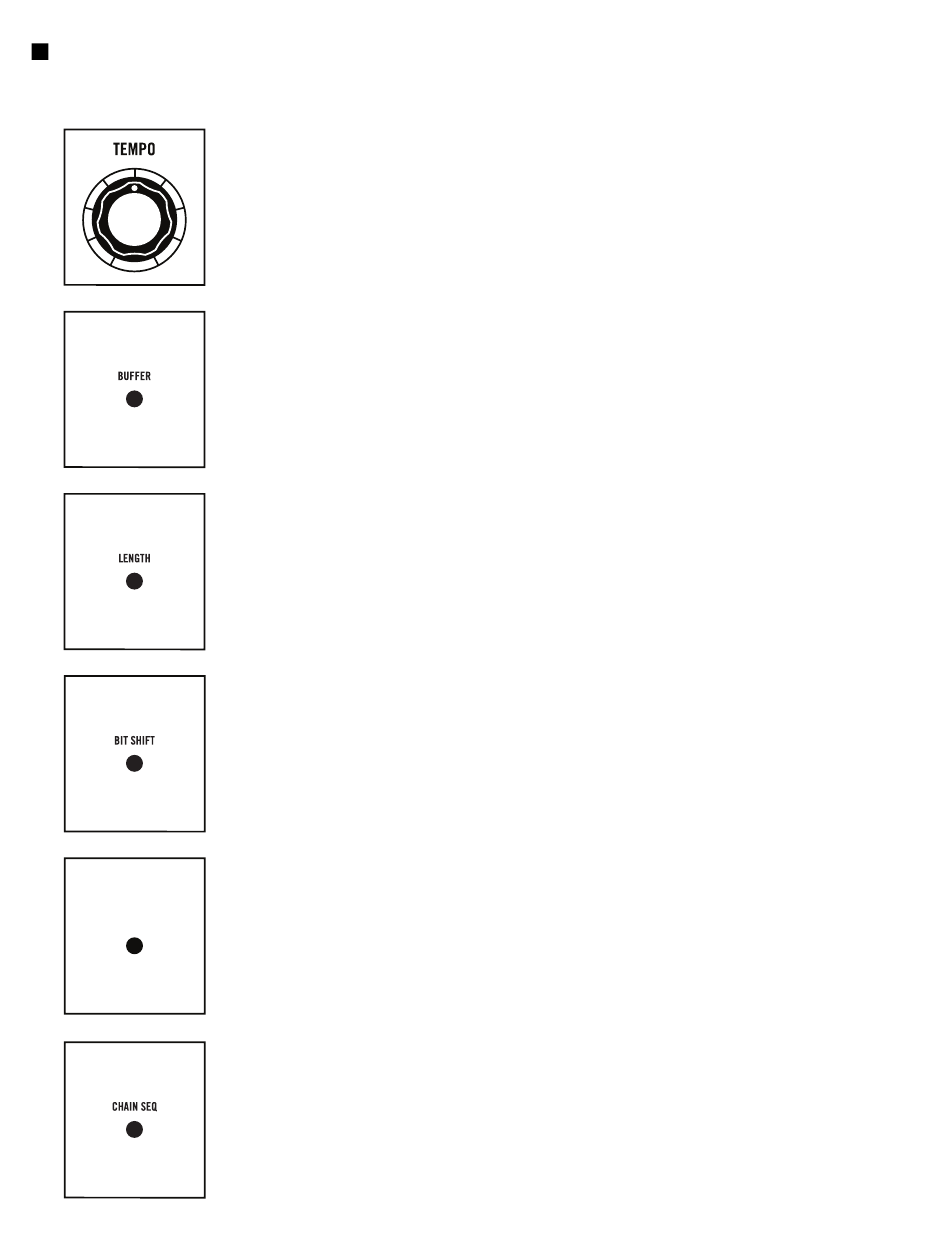

SEQUENCER TRANSPORT CONTROLS

TEMPO
This sets the tempo of internal CLOCK used to clock both sequencers.
BUFFER
Hold this for one second, and all LEDs will flash green. BUFFER saves bit states,
quantization mode, write head offsets, sequence lengths, and CHAIN SEQ
mode status to memory.
LENGTH (1,2)
Press to decrease length of SEQ1 or SEQ2 by one step. When you press
LENGTH LEDs in SEQ1 or SEQ2 will light up green to indicate the current length
of the SEQ. After length of 1 bit, LENGTH returns to 8.
BIT SHIFT (1,2)
Press to shift all bits in SEQ1 or SEQ2 by one bit to the right. Bits at the end of
the SEQ—depending on the length set by LENGTH (1,2)—will wrap around
to bit 1.
BIT FLIP (1,2)
When pressed, this will flip the current bit at the write head from its current
state. If off, this will flip to on; if on, this will flip to off.
BIT FLIP
CHAIN SEQ
This chains SEQ1 and SEQ2 together for a max 16-step sequence. When
chained, BIT SHIFT 1 rotates all SEQ1,2 bits together and BIT SHIFT 2 rotates
SEQ2 play head.
