PATCH BAY
(Continued)

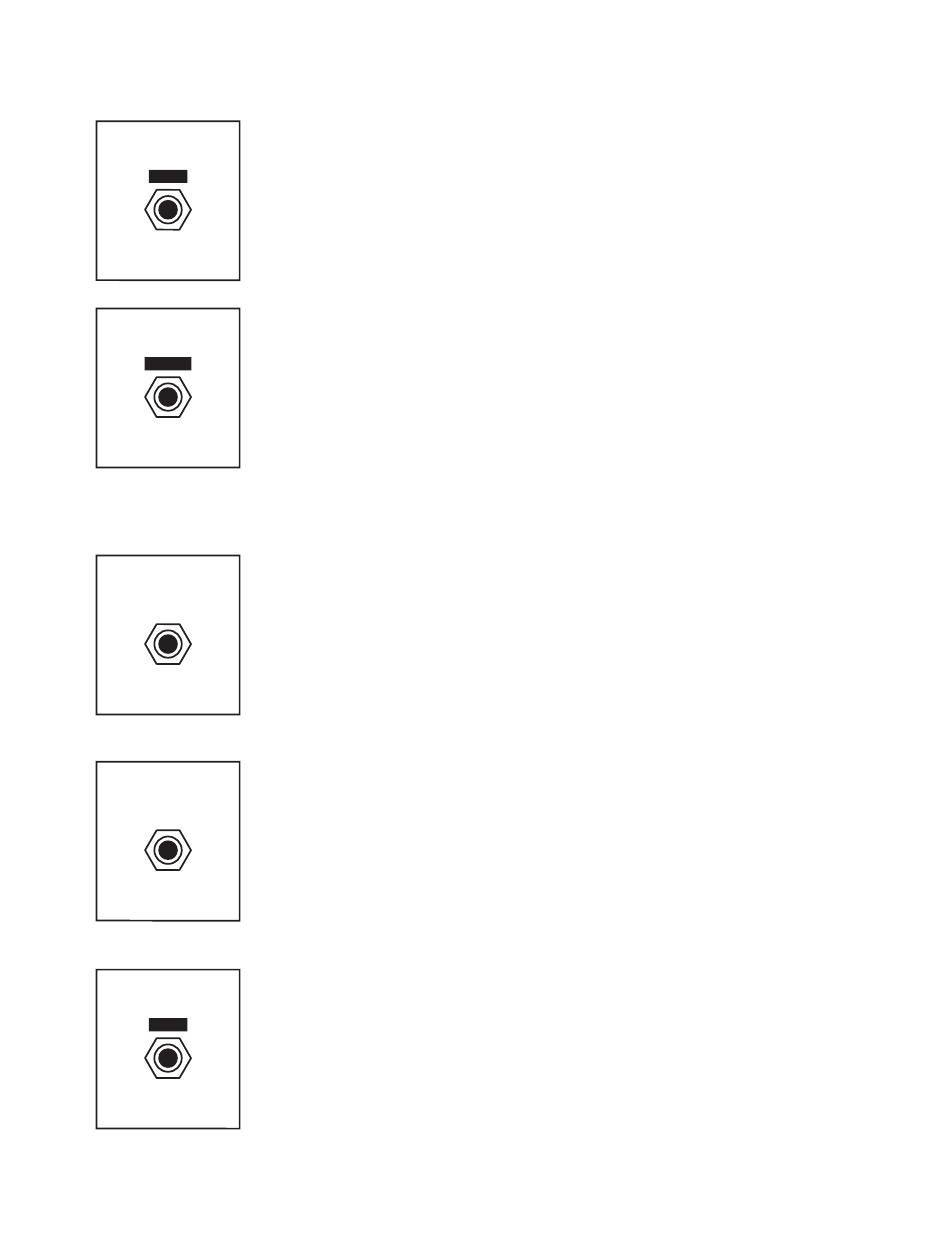

SEQ1 CV
SEQ1 TRIG
ROW SEVEN
CLOCK 2
BIT FLIP 2
SEQ2 CV
SEQ1 CV
This is the CV output for SEQ1. It outputs CV voltage stored at the current
bit located at the play head—scaled by the SEQ 1 CV RANGE control and
quantized by the internal quantizer.
CV OUTPUT: –5V to +5V
SEQ1 TRIG
This is the trigger output from SEQ1. It produces a trigger when play head
moves to a bit that is set to on.
CV OUTPUT: 0V to +5V
CLOCK 2
This is the clock input for SEQ2. The input to the CLOCK 1 jack is normalled to
the input of this jack.
CV INPUT: 0V to +10V
BIT FLIP 2
This is the digital input for SEQ2. It flips the state of the current bit located at
the write head if input is high.
CV INPUT: 0V to +10V
SEQ2 CV
This is the CV output for SEQ2. It outputs CV voltage stored at the current
bit located at the play head—scaled by the SEQ 2 CV RANGE control and
quantized by the internal quantizer.
CV OUTPUT: –5V to +5V
