PATCH BAY
(Continued)

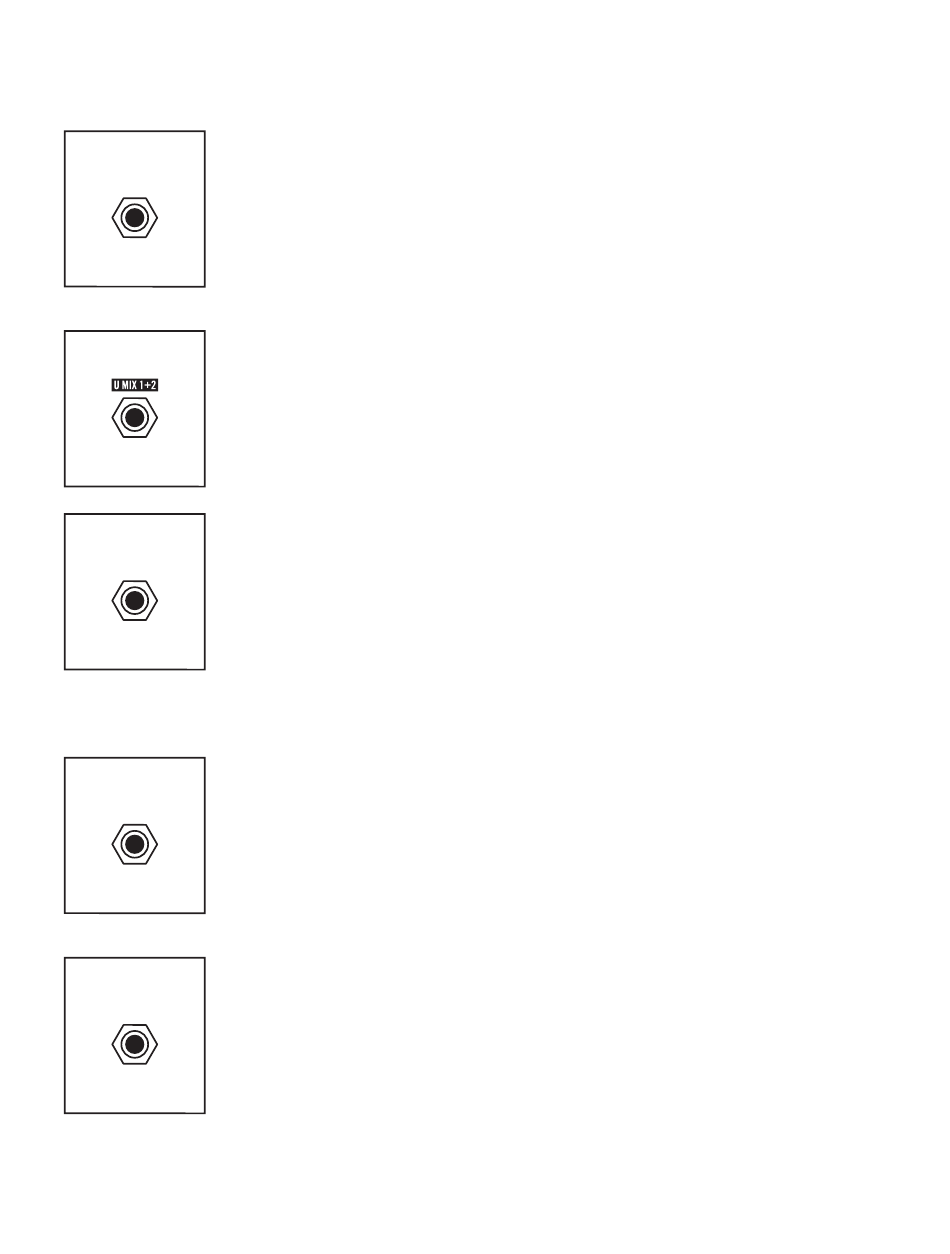

U MIX 2
This is the input for channel 2 of the U MIX mixer. It is DC coupled so that it can
accept either audio or control signals. U MIX 2 passes signal to the U MIX 1+2
U MIX 2
output at unity gain.
AUDIO INPUT: –5V to +5V
U MIX 1+2
This is the output of the U MIX mixer. It mixes the signal at U MIX 2 with the
signal at U MIX 1. The level of channel 1 is set by U MIX 1 LVL panel control.
AUDIO OUTPUT: –5V to +5V
EG2 TRIG
CV input to trigger EG2 (rising edge triggers envelope)
EG2 TRIG
CV INPUT: 0V to +10V
ROW SIX
CLOCK 1
This is the clock input for SEQ1. The internal CLOCK set by TEMPO (or MIDI
CLOCK when present) is normalled to the input of this jack.
CLOCK 1
CV INPUT: 0V to +10V
BIT FLIP 1
This is the digital input for SEQ1. It flips the state of the current bit located at
the write head if input is high.
BIT FLIP 1
CV INPUT: 0V to +10V
