Mixer & Noise

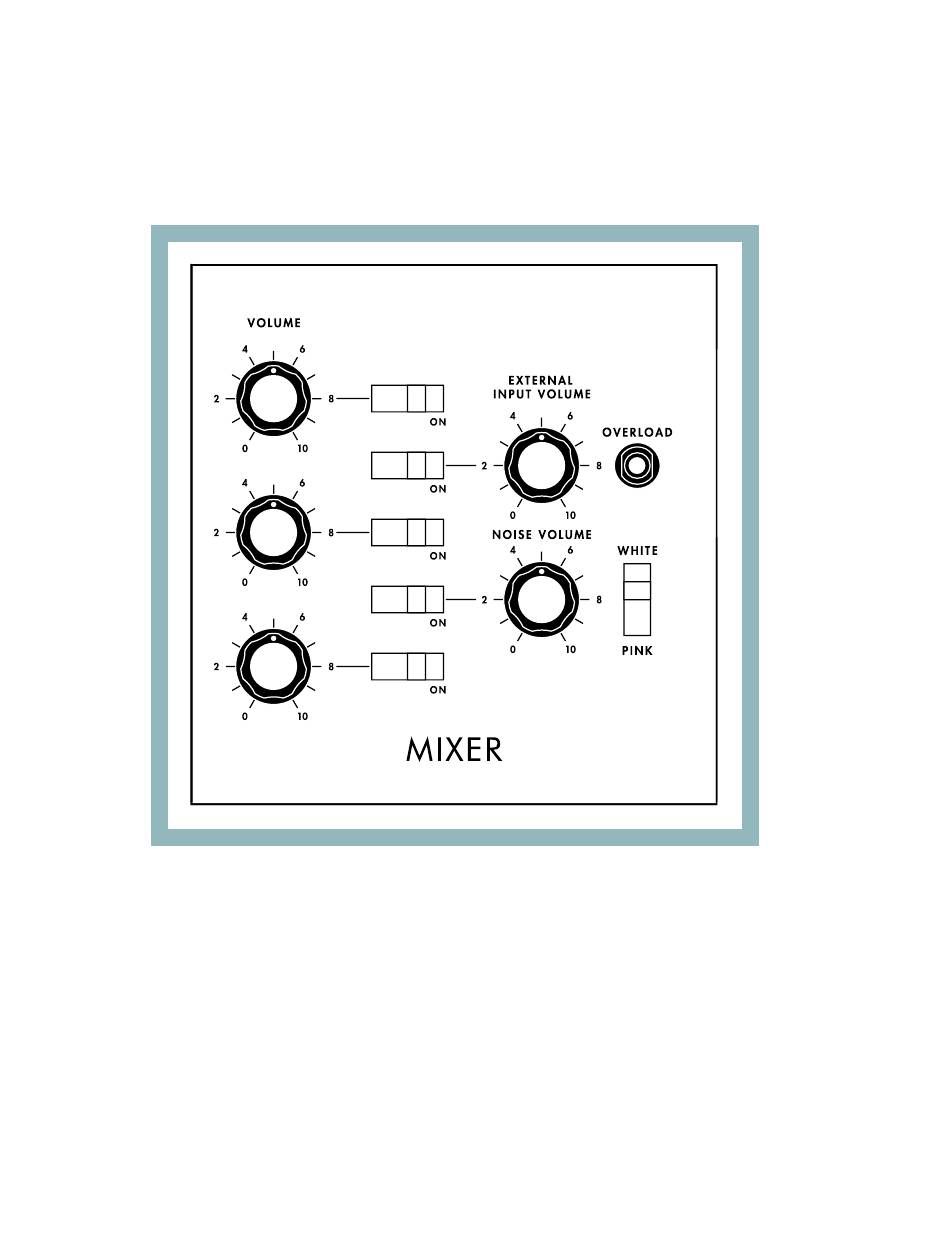

The Mixer sets the levels of all five of the
Minimoog Model D audio sources—3 Oscillators,
Noise Generator, and External Audio Input.
The combined output of the Mixer next
passes through the Filter and finally arrives at
the audio output. In addition to a dedicated
Volume knob, each audio source also includes
an On/Off switch. These switches allow any
source to be quickly removed from the mix
while preserving their Volume knob position,
and can also be useful when setting the
tuning of each Oscillator. The Oscillators are
somewhat self-explanatory in regard to the
Mixer. The External Input Volume and the Noise
Generator require some extra explanation.
