THE WAVEFOLDER
SEQ1 AMT

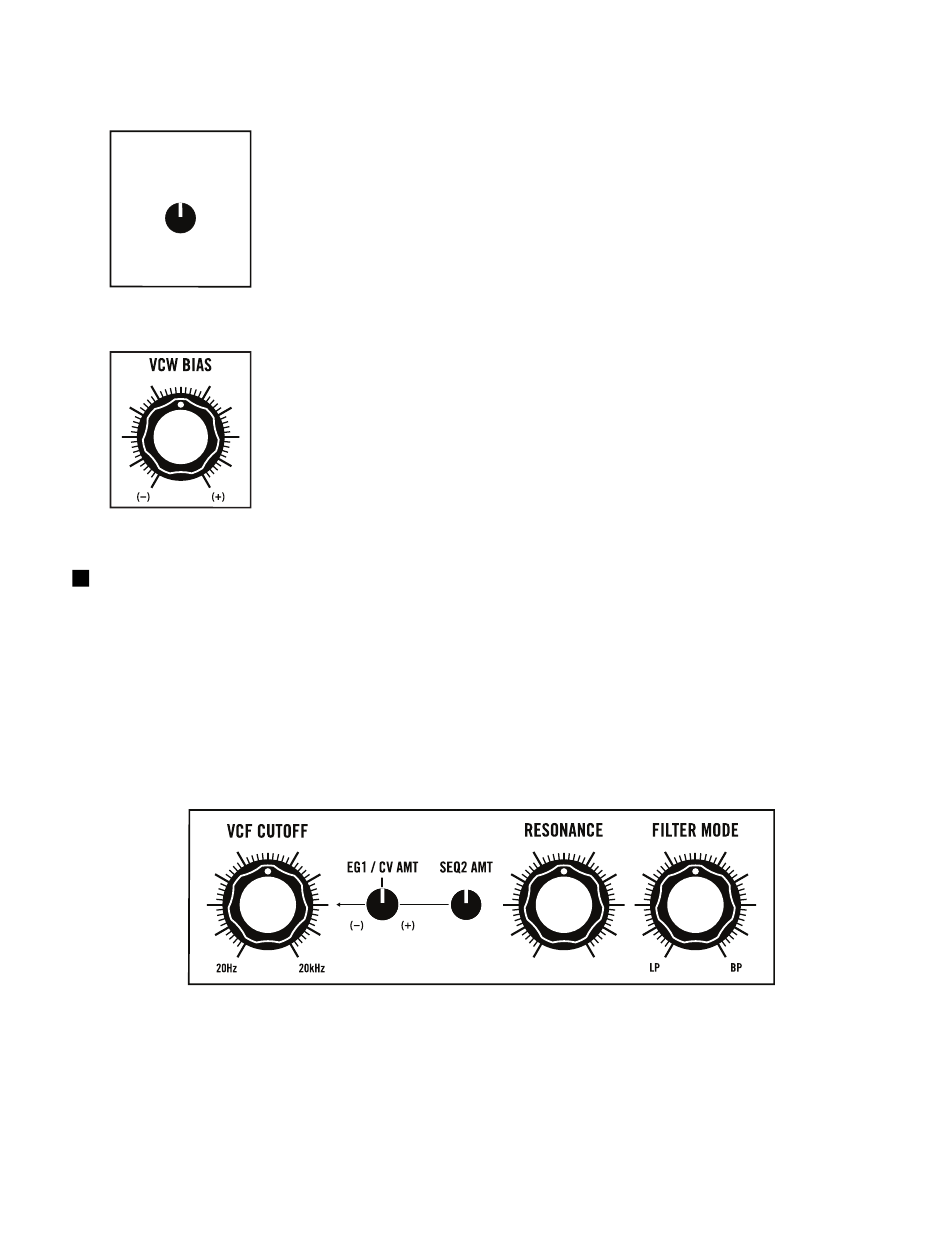

THE FILTER

The output from the Labyrinth MIXER is sent both to the VCW and sent in parallel to the Voltage-
Controlled Filter (VCF). Labyrinth features a 2-pole state-variable filter allowing for crossfading
between lowpass (LP) and bandpass (BP) filter responses via the FILTER MODE control. VCF CUTOFF
controls the cutoff frequency, RESONANCE adds a resonant peak at the cutoff frequency, and the EG1/
CV AMT and SEQ2 AMT controls allow for dynamic timbral modulation.
(Continued)
VCW SEQ1 AMT
This sets the amount that the sequence from SEQ1 (post SEQ1 CV RANGE
attenuator and quantizer) modulates VCW FOLD.
VCW BIAS
This sets the bias amount in the wavefolder, adding either a positive DC offset
in the wavefolder above 12 o'clock or a negative DC offset below 12 o'clock.
30
