THE PATCH BAY
ROW ONE
VCO 1V/OCT
M VCO SYNC
This is the sync input for the MOD VCO. It resets the MOD VCO when the
gate is high.
M VCO SYNC
CV INPUT: 0V to +5V

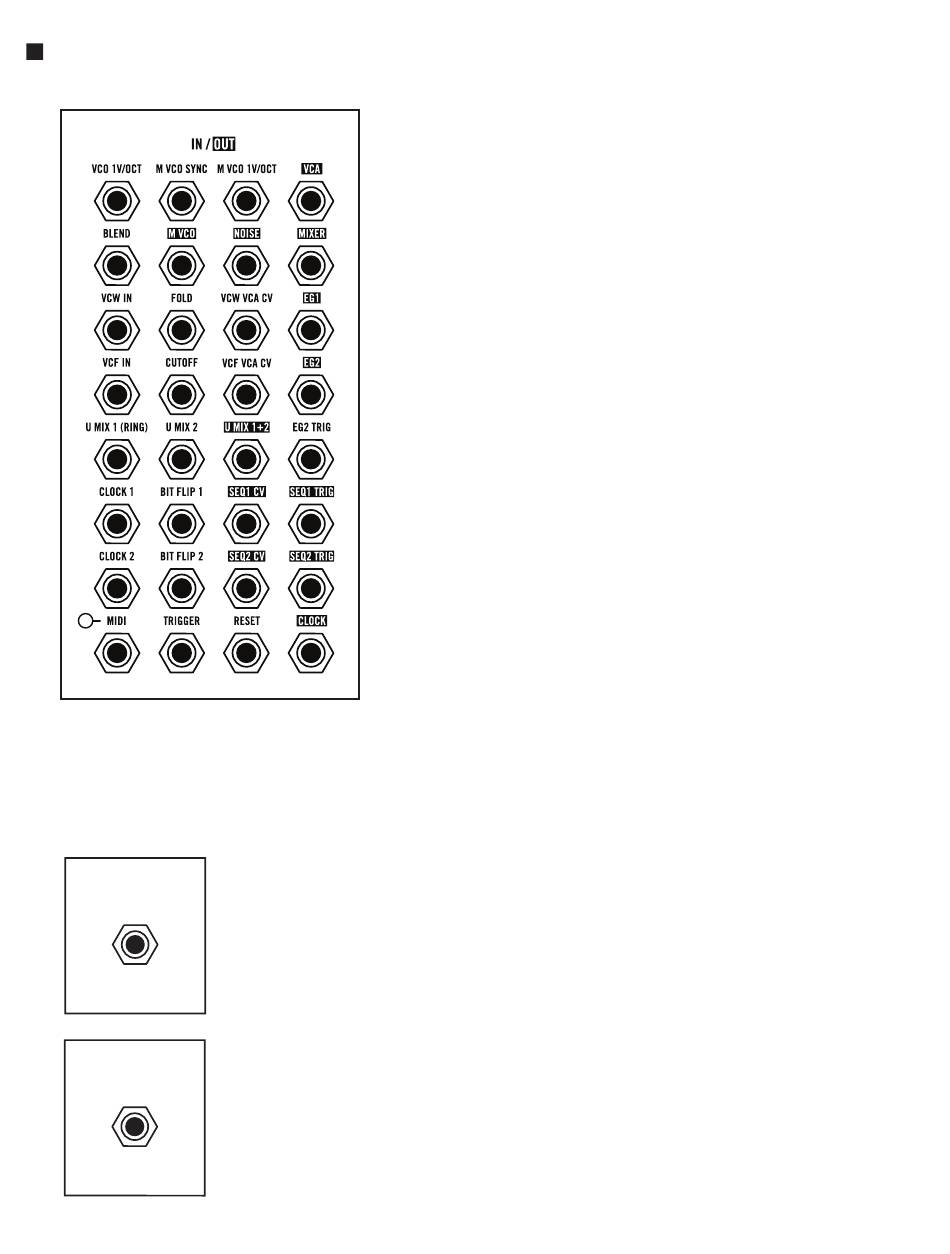

Labyrinth contains an extensive patch bay with 32 modular
patch points: 20 inputs (white text on black) and 12
outputs (black text on white). As an extremely flexible
semi-modular generative sequencer with two independent
signal processing paths (VCW and VCF) and a utility
mixer, Labyrinth is ready to make deep connections with
all sorts of analog gear via control voltage (CV) and
Eurorack-level audio over 3.5mm jacks.
In this section we will go over every patch point from right
to left as we travel down the patch bay.
INPUTS:
VCO 1V/OCT
M VCO SYNC
M VCO 1V/OCT
BLEND
VCW IN
FOLD
VCW VCA CV
VCF IN
CUTOFF
VCF VCA CV
U MIX 1 (RING)
U MIX 2
EG2 TRIG
CLOCK 1
BIT FLIP 1
CLOCK 2
BIT FLIP 2
MIDI
TRIGGER
RESET
VCO 1V/OCT
This is a calibrated CV input that controls the frequency of the sine wave VCO
following the 1 Volt per Octave standard. It is summed with the setting of the
VCO FREQUENCY panel control.
CV INPUT: –5V to +5V
39
OUTPUTS:
VCA
M VCO
NOISE
MIXER
EG1
EG2
U MIX 1+2
SEQ1 CV
SEQ1 TRIG
SEQ2 CV
SEQ2 TRIG
CLOCK
