THE FILTER
(Continued)

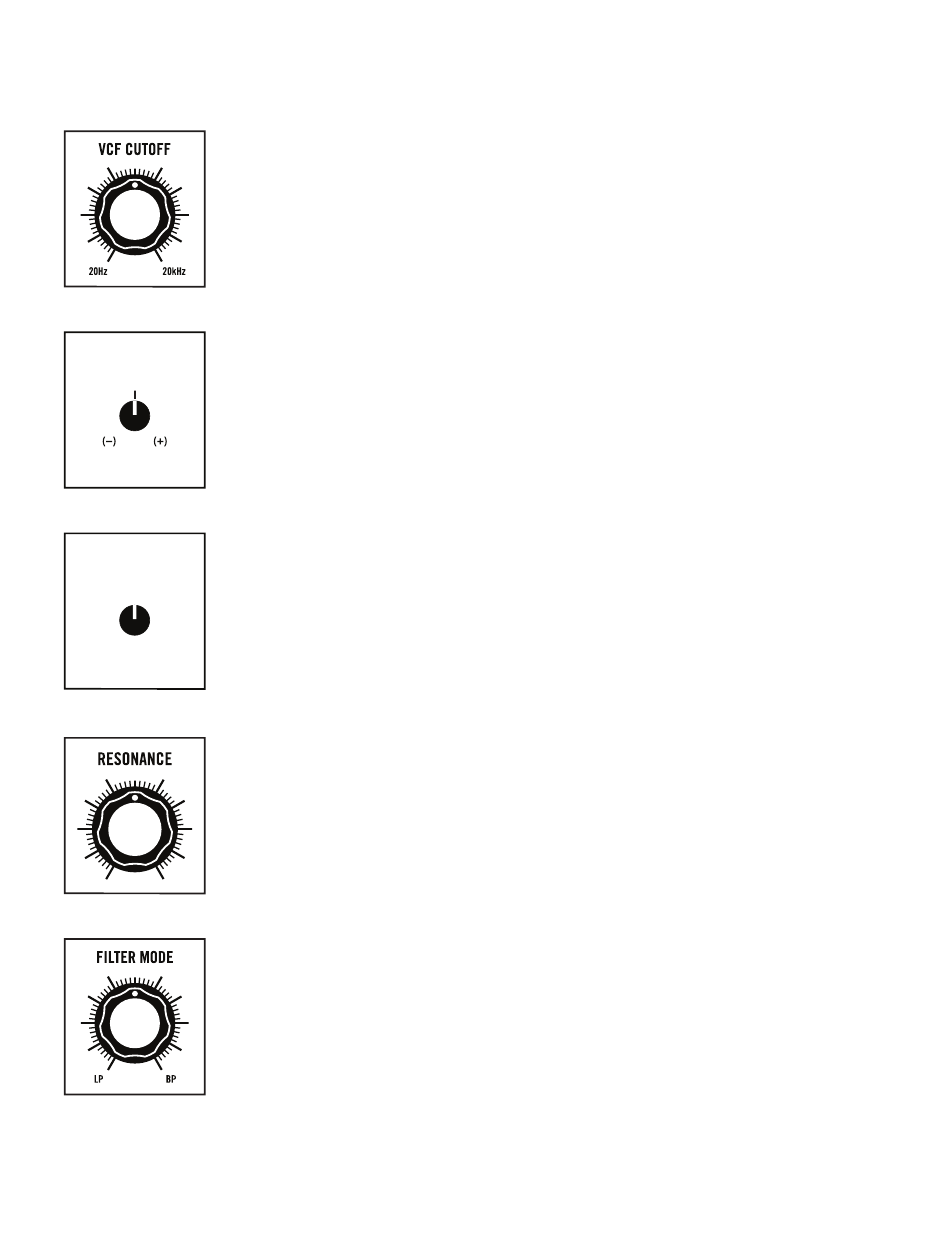

VCF CUTOFF
This sets the cutoff frequency of the filter—from ~20 Hz to ~20 kHz.
VCF EG1/CV AMT
This sets the amount that EG1 modulates VCF CUTOFF. It has bipolar control,
with positive modulation above 12 o'clock and negative modulation below. EG1/
EG1 / CV AMT
CV AMT acts as an attenuverter for CV input to VCF CUTOFF if patched.
VCF SEQ2 AMT
This sets the amount that the sequence from SEQ2 (post SEQ2 CV RANGE
SEQ2 AMT
attenuator and quantizer) modulates VCF CUTOFF.
RESONANCE
This sets filter resonance—from no resonance to near self-oscillation.
NOTE: Unlike the traditional Moog ladder lowpass filter, you will notice that with FILTER
MODE set to lowpass, turning up RESONANCE will not attenuate lower frequencies.
FILTER MODE
This sets the filter response—from lowpass (LP) all the way to the left to
bandpass (BP) all the way to the right. FILTER MODE mixes the two filter types
in between.
