BLEND/AMPLIFIERS
Both signal paths—the additive VCW path and the subtractive
VCF path—are combined via the BLEND control, which
crossfades between these two paths. Each signal path goes
through its own Voltage-Controlled Amplifier (VCA), which
are both controlled by EG2, before being sent to each side of
the BLEND control. The ORDER switch allows you to reroute
the signal paths in various ways for deeper
timbral explorations.
In this section you will also find the U MIX utility mixer, which features two
inputs on the patch bay (U MIX 1, U MIX 2) and one output (U MIX 1+2). The
level for U MIX 1 (normalled to the RING MOD) is set by the U MIX 1 LVL knob,
while U MIX 2 is added to the mix at full strength.

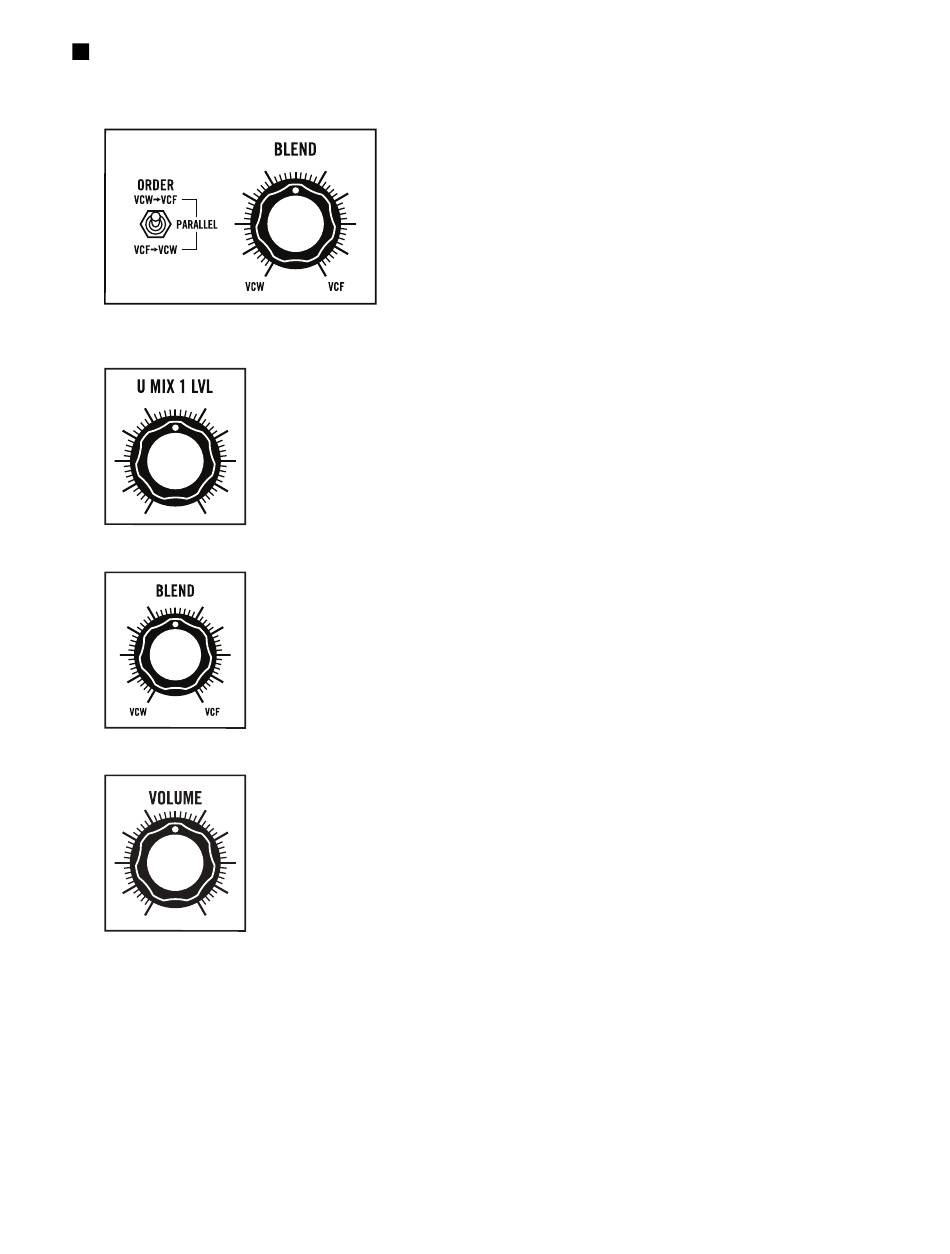

BLEND
This is the crossfader between the VCW output and VCF output.
VOLUME
This sets the level of the signal at the 1/4" output and the VCA output on
the patch bay.
