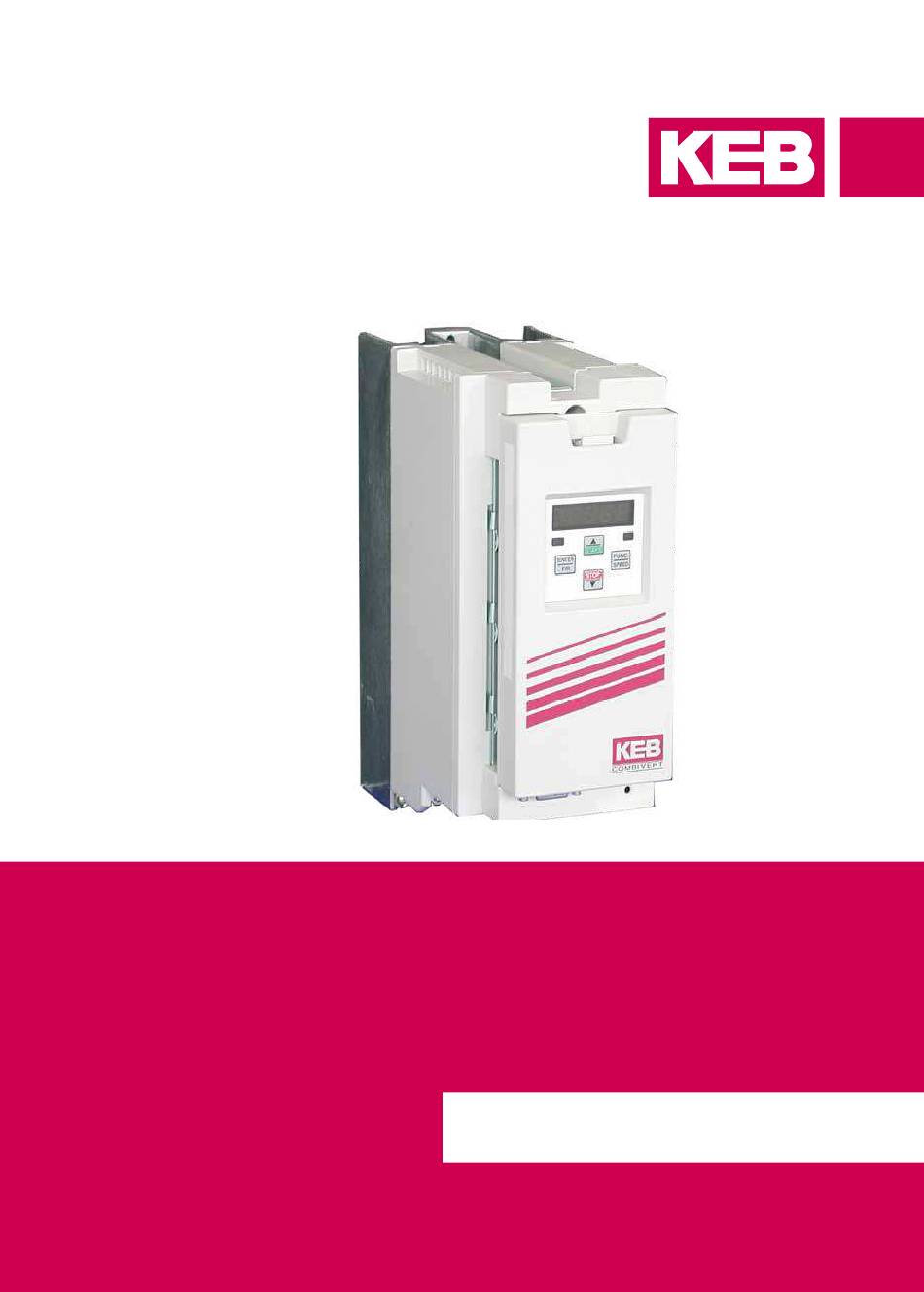

- Page 1 COMBIVERT F5 INSTRUCTIONS FOR USE | INSTALLATION F5 HOUSING B Translation of the original manual Document 20120297 EN 1M...
- Page 2 Non-observance of the safety instructions leads to the loss of any liability claims. The safety and warning instructions specified in this manual do not lay claim on completeness. KEB reserves the right to change/adapt specifications and technical data without prior notice. The used...
-
Page 3: Table Of Contents
Table of Contents Safety and Operating Instructions..4 Annex A ..........27 Overload characteristic......27 Product Description ......5 Calculation of the motor voltage ..27 Intended use.......... 5 Maintenance ........27 Unit identification ........5 Storage ..........28 Technical data ........6 Changing the response threshold of the 2.3.1 230 V class .......... -
Page 4: Safety And Operating Instructions
Important, absolutely read Safety and operating instructions Safety and operating instructions for drive converters (in conformity with the Low-Voltage Directive 2006/95/EC) 1. General 5. Electrical connection In operation, drive converters, depending on their degree of When working on live drive converters, the applicable national protection, may have live, uninsulated, and possibly also moving accident prevention rules (e.g. -
Page 5: Product Description

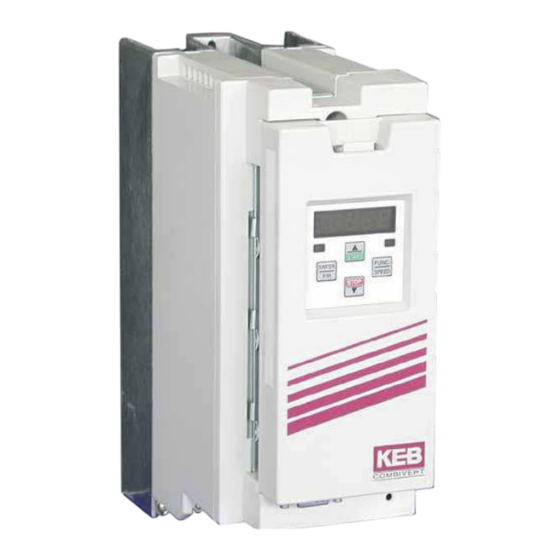

Product description Product description Intended use The frequency inverter KEB COMBIVERT F5 serves exclusively for the control and regulation of asynchronous motors. The operation of other electric consumers is prohibited and can lead to the destruction of the unit. Frequency inverter are components which are intended for the installation in electric systems or machines. -
Page 6: Technical Data
Product description Technical data 2.3.1 230 V class Inverter size Housing size Phases Output rated power [kVA] Max. rated motor power [kW] 0,37 0,75 Output rated current Output rated current UL Max. short time current 12,6 OC-tripping current 15,1 21,6 Input rated current [A] 4,6 3,2 8 5,6 14 9,8 20 14 Rated input current UL... -
Page 7: 2.3.2 400 V Class
2.3.2 400 V class Inverter size Housing size Phases Output rated power [kVA] 0,9 Max. rated motor power [kW] 0,37 0,75 1,5 Output rated current [A] 1,3 Output rated current UL [A] 1 Max. short time current [A] 2,3 7,4 10,4 17 OC-tripping current [A] 2,8 8,9 12,5 21... -
Page 8: Dimensions And Terminals
Product description Dimensions and Terminals * with Operator Connection for mains voltage, motor, braking resistor and temperature detection Connection for control lines Connection for operator or HSP5 service cable Connection for shielding / earthing Pay attention to the input voltage, since 230 V and 400 V class (3-phase) are possible ! EN - 8... -
Page 9: Installation And Connection
- ideal in a metal cable duct. • Mount COMBIVERT well conducting with the mounting plate. Remove the paint beforehand. You can find further instructions regarding the EMC-conform wiring in the Internet at KEB. EN - 9... -
Page 10: Connection Of Power Circuit
1.3 Nm (11.5 lb inches) 3.3.2 Wiring instructions Absolutely observe the connecting voltage of the KEB COMBIVERT. A 230V-unit will be immediately destructed on a 400V-power supply. Never exchange the mains and motor cables. Some countries demand that the PE-terminal is directly connected to the terminal box (not over the mounting plate). -
Page 11: Mains Connection
Installation and Connection 3.3.3 Mains connection Mains connection 230 V 1-phase Mains connection 230 V 3-phase 1 x 180…260 Vac 3 x 180…260 Vac N/L2 N/L2 Protection Mains connection 400 V 3-phase 3 x 305…528 Vac • Fuse (see chapter 2.3) or •... -
Page 12: Motor Connection
Installation and Connection 3.3.4 Motor connection Maximum motor line length see chapter 2.3 Apply shieldings over a large contact surface of the mounting plate Motor-PTC (optionally) 3.3.5 Connection of the temperature monitoring • Terminals T1, T2 • Tripping resistance • Reset resistance •... -
Page 13: Connection Of A Braking Resistor With Fire Prevention
Installation and Connection 3.3.6 Connection of a braking resistor with fire prevention With input rated voltage of 480 Vac no braking resistor shall be connected at control type "BASIC". The operating threshold of the braking resistor (Pn.69) must be adjusted at least to 770 Vdc for all other controls (see annex). At defective braking transistor this circuit prevents against overheating and fire. -
Page 14: Control Board Basic
Installation and Connection Control Board Basic 3.4.1 X2A Control terminal strip • Tightening torque 0.22…0.25 Nm (2 lb inches) • Use shielded/drilled cables 24 25 26 27 28 29 1 5 7 8 10 11 14 15 16 20 22 •... -
Page 15: Connection Of The Control Terminal Strip
Installation and Connection 3.4.2 Connection of the control terminal strip Set value potentiom- Current signal Setpoint signal eter 0…±20 mA 0…±10 V DC 3…10 kΩ 4…20 mA Analog output ±10 V DC max. 5 mA not at housing A and B max. -
Page 16: Control Board Compact/General/Application Without Encoder Interface
Installation and Connection Control board Compact/General/Application without encoder interface 3.5.1 X2A Control terminal strip • Tightening torque 0.22…0.25 Nm (2 lb inches) • Use shielded/drilled cables 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 •... -
Page 17: Connection Of The Control Terminal Strip
Installation and Connection 3.5.2 Connection of the control terminal strip Current signal Set value potentiometer Set value signal 3…10 kΩ 0…±10 V DC 0…±20 mA 4…20 mA Analog output ±10 V DC / max. 5 mA *) Connect potential equalizing line only if a potential difference of >30 V exists between the controls. -
Page 18: Operation Of The Unit
4.1.2 Digital operator (part number 00F5060-1100) As an accessory for the local operation of the KEB COMBIVERT F5 an operator is available. To prevent malfunctions, the inverter must be brought into nOP status before connecting / disconnecting the operator (open control release). When starting the inverter, it is always started with the last stored values or the factory setting. -
Page 19: Remote Control
PC / Operator Part number 0058025-001D Housing (PE) F5-Operator 4.1.4 Remote control For remote control of the KEB COMBIVERT F5 a special HSP5 operator is available. Operator Cable The last three digits of the part number indicate the 00F5060-9000 00F50C0-2xxx length of the cable in dm. -
Page 20: Resetting Error Messages
4.2.3 password input The KEB COMBIVERT is outfitted with a comprehensive password protection. In dependence on the entered password the following modes are possible: Display Mode... -
Page 21: Parameter Descriptions
CP-Parameters Parameter Descriptions Basic/Compact/General/Application without encoder interface Resolu- Based ↵ Parameter Setting range Default Unit tion CP.0 password input 0…9999 ud.1 CP.1 Actual frequency display -400…400 0,0125 ru.3 CP.2 Set frequency display -400…400 0,0125 ru.1 CP.3 Inverter status 0…255 ru.0 CP.4 apparent current 0…6553,5... - Page 22 CP-Parameters CP.3 inverter state In parameter „inverter status“ the actual operating condition of the frequency inverter is displayed. In the case of an error the current error message is displayed, even if the display has already been reset with ENTER (error-LED on the operator is still blinking). „no Operation“;...
- Page 23 CP-Parameters CP.25 Max. constant current This function protects the frequency inverter against switch off through overcurrent during constant output frequency. When exceeding the adjusted value, the output frequency is re- duced until the value drops below the adjusted value. CP. 3 displays "SSL" at active function. CP.26 Speed search / condition When connecting the frequency inverter onto a decelerating motor, an error can be triggered by the differing rotating field frequencies.
- Page 24 CP-Parameters 0…100 Hz absolute set frequency CP.2 0…±100 Hz actual frequency CP.3 0…±100 Hz Setpoint frequency CP. 2 output voltage CP.9 0…500 V DC link voltage CP.7 0…1000 V apparent current CP.4 0…2 • rated current active current ru.17 0…2 • ±rated current 8…10 only application mode absolute active current ru.17 0…2 •...
- Page 25 CP-Parameters Set value at AN2 > switching level hardw.curr. limit active modulation on Inverter status > switching level Power stage temperature > switching level Motor temperature > switching level Ramp output value > switching level Apparent current (CP.4) > switching level rot.
- Page 26 CP-Parameters CP.34 Source of rotation direction The source rotation setting and the mode of evaluating the rotation setting is defined with this parameter (Enter-Parameter). With CP.34 one does not modify the rotation source of the fixed frequencies (CP.19…21). Value Direction of rotation only application mode Setting by way of terminal strip forward/reverse;...
-
Page 27: Annex A
Annex A Annex A Overload characteristic Release time [s] Load [%] On exceeding a load of 105% the overload integrator starts. When falling below the inte- grator counts backwards. Error E.OL is triggered if the integrator achieves the overload characteristic. Calculation of the motor voltage The motor voltage for dimensioning of the drive is depending on the used components. -
Page 28: Storage
If the capacitor starts running with rated voltage, it is tried to build the oxide film abrupt again. This causes heat and gas and leads to the destruction of the capacitor. In order to avoid defectives, the KEB COMBIVERT must be started up depending on the storage period in accordance with the following specification: Storage period <... -
Page 29: Changing The Response Threshold Of The Braking Transistor
Input voltages as before, however double the times per year. Eventually change capacitors. Eventually change capacitors. After expiration of this start-up the KEB COMBIVERT can be operated on nominal rating conditions or delivered to a new storage. Changing the response threshold of the braking transistor (not valid for control type „BASIC“) -
Page 30: Annex B
In this case the operator may need to take corresponding measures. UL Marking Acceptance according to UL is marked at KEB inverters with the adjacent logo on the type plate. To be conform according to UL for use on the North American Market the following instructions must be observed (original text of the UL-File): •... - Page 31 Annex B 240 /1ph 05F5 240 /3ph 480 / 3ph 05F5 240 /1ph 07F5 240 /3ph 480 / 3ph 07F5 240 /1ph 09F5 240 /3ph 480 / 3ph 09F5 240 /1ph 10F5 240 /3ph 480 / 3ph 10F5 480 / 3ph 12F5 #1) The voltage rating of the Class rated fuses shall be at least equal to the voltage rating of the Drives.
-
Page 32: Additional Manuals
Unit-specific instructions • Part 2 Power Circuit • Part 3 Control Circuit Service notes • Up- /Download of parameter lists with KEB COMBIVERT • Error messages Instruction and information for construction and development • Application Manual • Preparation of a user-defined parameter menu •... - Page 33 Notes GB - 33...
