TMG -ST2031E Instruction Manual

20' x 30' straight wall storage shelter
Hide thumbs

Advertisement

Table of Contents

gui
www.tmgindustrial.com
0/24
TOLL FREE:1-877-761-2819

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMG-ST2031E and is the answer not in the manual?

Questions and answers

Related Manuals for TMG TMG-ST2031E

Summary of Contents for TMG TMG-ST2031E

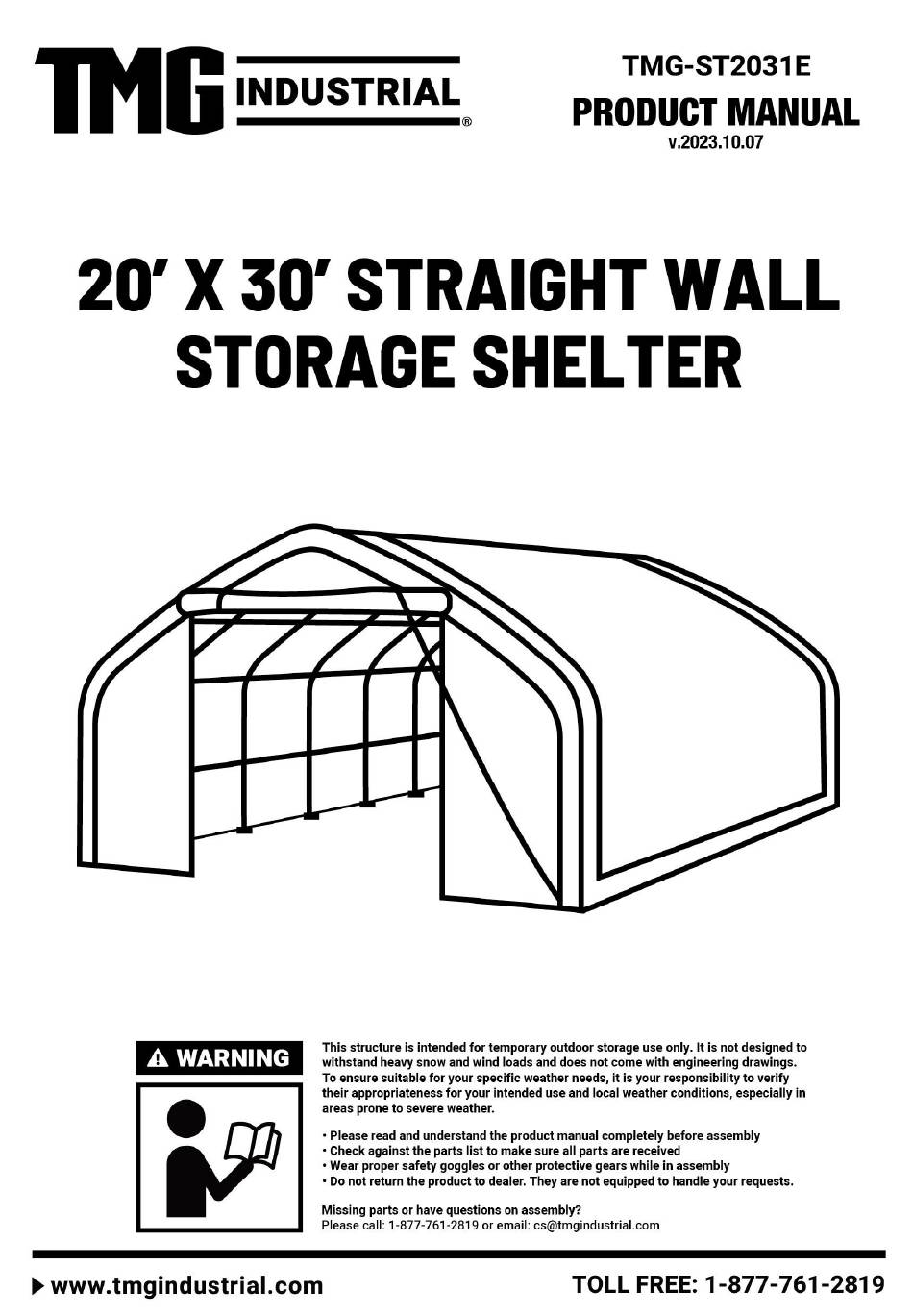

  • Page 1 www.tmgindustrial.com 0/24 TOLL FREE:1-877-761-2819...

  • Page 2: Main Specifications

    MAIN SPECIFICATIONS : Overall assembled size : W6 x L9 x H3.65 (m) / 19.7 x 29.5 x 12 (ft)  Shoulder height : 2 (m) / 6.6(ft)  Front roll up door : 3 x 3 (m) / W9.8 x H9.8 (ft) ...
  • Page 3 The layout of foundation(two).  Note: the ground anchor is installed on the cement block. www.tmgindustrial.com 2/24 TOLL FREE:1-877-761-2819...

  • Page 4: Prior To Assembly

    Baseplate layout.  PRIOR TO ASSEMBLY Please read the instructions carefully before installation. It is important to follow your local safety regulations and industry standards during installation. Regulations may include but are not limited to : Safety helmets, protective eyewear, and clothing ...
  • Page 5 TMG-ST2031E PART LIST PARTS GRAPHICAL DESCRIPTION LENGTH CODE Peak arch tube φ48xL1820mm Upper rafter tube φ48xL1934mm (middle truss) Upper rafter tube φ48xL1934mm (front truss) Shoulder tube φ48xL1123mm (middle truss) Shoulder tube φ48xL1123mm (front and rear trusses) Sidewall tube φ48x1480mm Roof purlin φ42x1440mm...
  • Page 6 Ratchet Door frame lower tube φ48xL1980mm (front and rear trusses) Door frame upper tube φ48xL1405mm (front and rear trusses) Rear frame middle tube φ48xL1268mm Door frame horizontal tube φ42xL1446mm (front and rear trusses) Door frame horizontal φ42xL1450mm tube (rear truss) Ceiling cross bar φ42xL1949mm Two wheel rope pulley...
  • Page 7 Hex Bolt M10x50mm Nylon rope φ8xL12m Water plug φ32mm Top cover W9620xL11500mm Front cover panel W3830xL5950mm Rear cover panel W3830xL5950mm Braided rope 1 bundle φ8xL180m Ratchet straps W38xL800mm Scratch resistant tape www.tmgindustrial.com 6/24 TOLL FREE:1-877-761-2819...

  • Page 8: Installation Steps

    INSTALLATION STEPS STEP 1 : BASE PLATES INSTALLATION. The diagonal X and Y must be equal.  Installation diagram of expansion bolt.  PART PART www.tmgindustrial.com 7/24 TOLL FREE:1-877-761-2819...
  • Page 9 STEP 2 : INSTALL FRONT TRUSS. PART PART www.tmgindustrial.com 8/24 TOLL FREE:1-877-761-2819...
  • Page 10 STEP 3 : INSTALL REAR TRUSS. PART PART www.tmgindustrial.com 9/24 TOLL FREE:1-877-761-2819...
  • Page 11 STEP 4 : INSTALL THE INTERMEDIATE TRUSS. PART PART www.tmgindustrial.com 10/24 TOLL FREE:1-877-761-2819...
  • Page 12 STEP 5 : WRAP (#26) AROUND THE SHARP POINTS OF THE JOINT TO AVOID FRICTION BETWEEN THE FABRIC AND THE INTERFACE. PART www.tmgindustrial.com 11/24 TOLL FREE:1-877-761-2819...
  • Page 13 STEP 6 : PUT UP THE FRONT AND REAR TRUSS AND THE INTERMEDIATE TRUSS. PART www.tmgindustrial.com 12/24 TOLL FREE:1-877-761-2819...
  • Page 14 STEP 7 : INSTALL (#5) ROOF PURLIN. PART PART www.tmgindustrial.com 13/24 TOLL FREE:1-877-761-2819...
  • Page 15 STEP 8 : INSTALL THE DIAGONAL BRACING BARS (#13). PART www.tmgindustrial.com 14/24 TOLL FREE:1-877-761-2819...
  • Page 16 STEP 9 : INSTALL THE REMAINING PARTS ON THE FRONT TRUSS. PART PART www.tmgindustrial.com 15/24 TOLL FREE:1-877-761-2819...
  • Page 17 STEP 10 : INSTALL THE REMAINING PARTS ON THE REAR TRUSS. PART PART www.tmgindustrial.com 16/24 TOLL FREE:1-877-761-2819...
  • Page 18 STEP 11 : INSTALL FRONT COVER PANEL, WHAT YOU SEE IN THIS PICTURE IS THE INSIDE. Lift up (#23) cover panels, starting from the center point of the frame (highest ridge point) ，use ropes (#24)  Center point through the grommets to tie the panel to the truss firmly. Then continue from the middle to the sides to tie the panels to the arch pipe.
  • Page 19 WHAT YOU SEE IN THIS PHOTO IS OUTSIDE. The rope coming out from pulley(#11B) must go through the upper wheel of pully (#11A), then pull both ropes  together slowly and start to lift the door cover. Tie both ropes to the corner baseplate. Now the door cover is up. When you drop down the door cover, do not ...
  • Page 20 STEP 12 : INSTALL REAR COVER PANEL. Lift up (#23A) cover panels, starting from the center point of the frame (highest ridge point) ，use ropes (#24)  Center point through the grommets to tie the panel to the truss firmly. Then continue from the middle to the sides to tie the panels to the arch pipe.
  • Page 21 STEP 13 : INSTALL THE TOP COVER (#22) STRETCH AND TIGHTEN TOP COVER. DO NOT INSTALL THE COVER DURING WINDY WEATHER! Stretch and adjust the cover from back and forth, to make sure it is square and centered.  Unpack the top cover and place it along one of the long sides of the structure. ...
  • Page 22 PART PART www.tmgindustrial.com 21/24 TOLL FREE:1-877-761-2819...
  • Page 23 STEP 14 : TENSION THE COVER ON THE STRUCTURE FROM BOTH SIDES. Insert tension tubes (#14) slowly into the bottom groove pocket on both long sides. Add the water plug (#21)  on the first tension tube to avoid tearing the fabric and add one to the end of last tube as well. Repeat the same step for the other side.
  • Page 24 STEP 15 : INSTALL RATCHET STRAPS. Stretch and adjust the cover from left and right, to make sure it is square and centered. Cut the groove pocket  where it aligns with ratchet (#7A), and use strap (#25) to pull tension tube (#14) toward the ratchet and tie it firmly there.

  • Page 25: After The Installation

    AFTER THE INSTALLATION Walk around and inspect the shelter periodically to make sure all components are still firmly secured and the whole shelter is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position.
