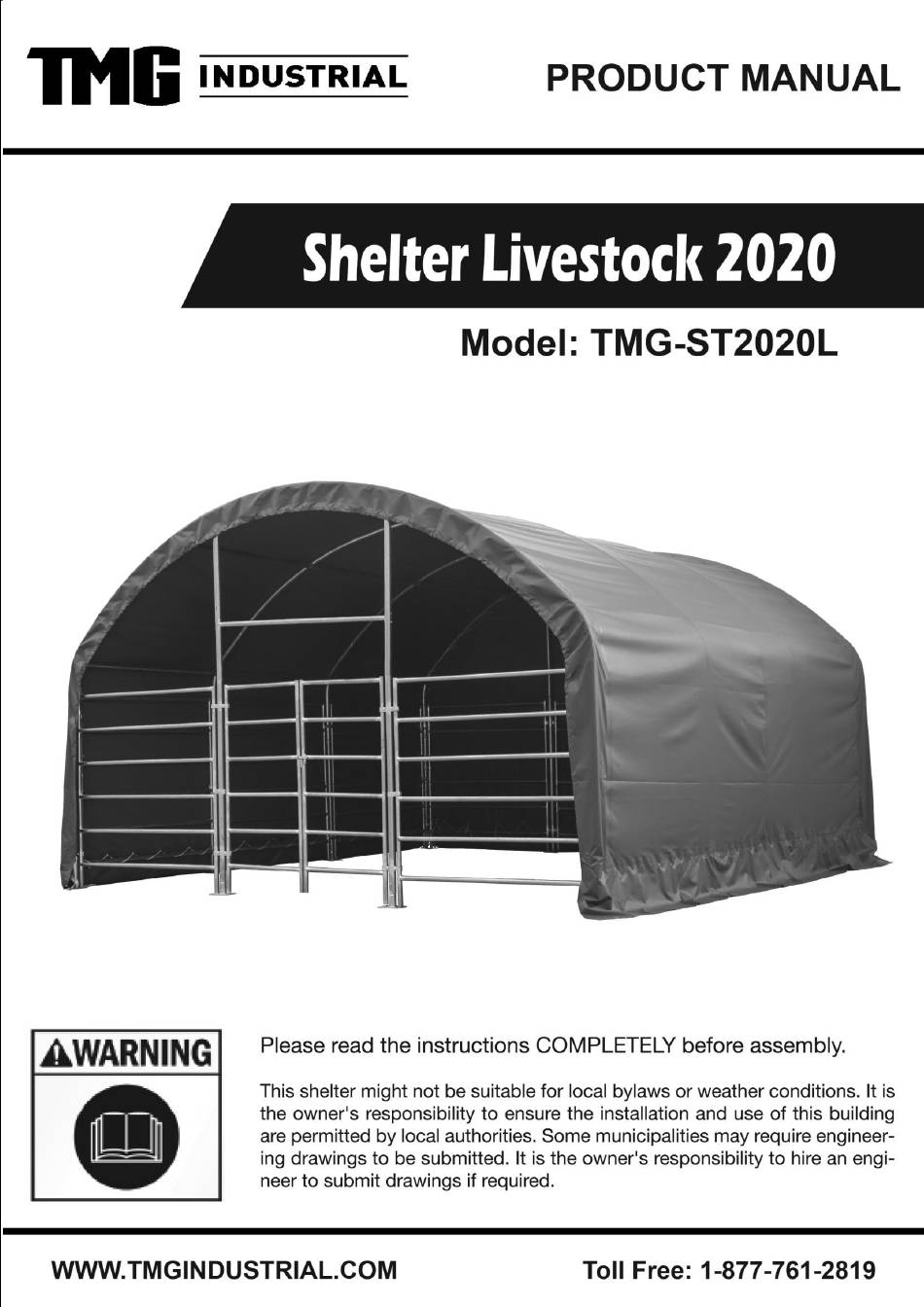

- Page 1 Page 0 of...
- Page 2 Main Specifications : Overall assembled size : W6 x L6 x H3.7 (m) / 20 x 20 x 12 (ft) Shoulder height : 2.2 (m) / 7.2 (ft) Front door : 1.85 x 2.5 (m) / W6 x H8 (ft) Prior to assembly Please read the instructions carefully before installation.
- Page 3 TMG-ST2020L Parts Graphical Description Qty BOX code Peak arch tube Middle rafter tube Shoulder tube Sidewall tube Roof purlin (horizontal tube) Upper fence Lower fence Left door Right door Corner baseplate (front and rear truss) Page 2 of...
- Page 4 Middle truss baseplate Front door upper column pipe Rear door upper column pipe Tube clamp Front door cross pull tube Double fastener Single fastener Washer Hex bolt M10x60mm Hex bolt M10x80mm Hex bolt M10x40mm Expansion bolt φ16x150mm Page 3 of...
- Page 5 Half round head bolt M8x70mm Half round head bolt M10x80mm Top cover Rear cover panel Braided rope (100m) Waterproof plug Step 1 : Baseplate positioning and installation Mark the ground in the final building location with a line showing the positions of base plates, front, and rear doors.
- Page 6 Picture 1 Step 2 : Assemble all trusses The building includes 4 trusses, the installation method of each truss is the same. Parts used to install all trusses in this process (refer to Picture 2)： (1x4) Peak arch tube (#1) (2x4) Middle rafter tube (#2) (2x4) Shoulder tube (#3) (2x4) Sidewall tube (#4)
- Page 7 Picture 2 Lay down all 4 trusses on the ground as picture 3 when the assembly is all completed and before moving to next step (refer to Picture 3). Picture 3 Step 3 : Put up all truss Team can use ropes to lift the trusses, but you have to make sure it is safe, and have enough manpower.
- Page 8 Parts used in this step : (4x4) Half round head bolt (#13) Picture 4 Step 4 : Connect all roof purlin Refer to step 3 to put up the rest trusses, connect all purlins (#5) with bolt (#13) and secure all bolts firmly on each span before going to next truss (Picture 5).
- Page 9 Step 5 : Install front truss (Picture 6) Parts used in this step : (2) Front door upper column pipe (#8) (1) Front door cross pull tube (#9) (2) Sidewall tube (#4) (2) Tube clamp (#8B) (2) Hex bolt (#11B) (4) Hex bolt (#11A) (8) Half round head bolt (#13) Picture 6...
- Page 10 Step 7 : Install the front door enclosure (Picture 8) Install the left and right mechanical doors, fix the mechanical doors with double fasteners (#10) and the fences assembled in step 6. Adjust the height of the mechanical door to the base plate by 20 mm, adjust the locating iron ring on the mechanical door to match the upper double fasteners, tighten the bolt C,The left and right mechanical doors are installed symmetrically.
- Page 11 Step 8 : Install the rear truss (Picture 9) Parts used in this step : (2) Rear door upper column pipe (#8A) (2) Sidewall tube (#4) (2) Tube clamp (#8B) (2) Hex bolt (#11B) (8) Half round head bolt (#13) Picture 9 Step 9 : Installation of rear fence (Picture 10) ...
- Page 12 Picture 10 Step 10 : Install fences on both sides Install the fence between the trusses, the left and right trusses and fences are fixed with single fastener (#10A), middle trusses and fences are fixed with double fastener (#10), and locked with hex bolt (#11) , same installation method on both sides (Picture 11).
- Page 13 Step 11 : Install rear cover panel Use braided rope (#16) to lift up the rear cover panel (#15) from the center grommet and tie it firmly to the truss tube and spread toward both sides through each grommet along the tube (Picture 12 - view from inside). (Picture 12 - view from inside) Step 12 : Install top cover Do not install the cover during windy weather!
- Page 14 Picture 13 The roof cover must be stretched and tied to the front and rear truss by rope going through the flap grommets on the cover. Start from the top center and go toward both side on each end. Add or cut the rope as needed. Pull and stretch the cover enough only to take wrinkles out.
- Page 15 Picture 15 Step 13 : Install the waterproof plug Install waterproof plug (#17) on the pipe head at the upper end of all upper fence (#6), left door (#6L) and right door (#6R) (Picture 16). Parts used in this step : (26) Waterproof plug (#17) Picture 16 Page 14 of...
- Page 16 Step 14 : Method of use of door chain Wrap the two round pipes of the mechanical door with a chain and clip the chain into the plate slot of the left door (Picture 17). Picture 17 After the Installation Walk around and inspect the shelter periodically to make sure all components are still firmly secured and the whole shelter is well supported.
