TMG -ST3070E Product Manual

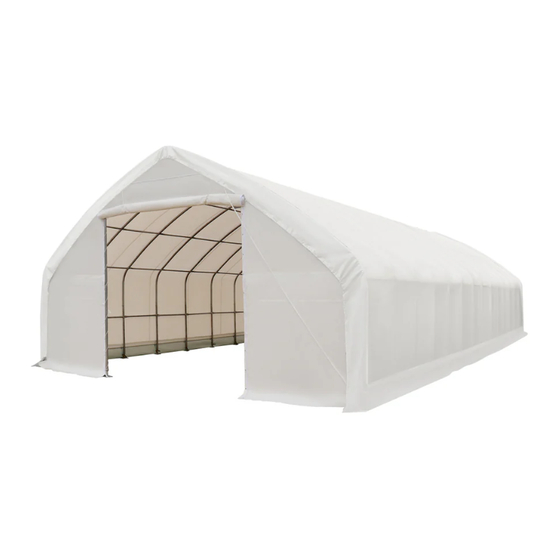

30' x 70' straight wall peak ceiling storage shelter
Hide thumbs

Advertisement

Quick Links

Download this manual
WARNINGS-SAFE USAGE
MAIN SPECIFICATIONS :
www.tmgindustrial.com
0/21
TOLL FREE:1-877-761-2819

Advertisement

loading
Need help?

Need help?

Do you have a question about the TMG-ST3070E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TMG TMG-ST3070E

Summary of Contents for TMG TMG-ST3070E

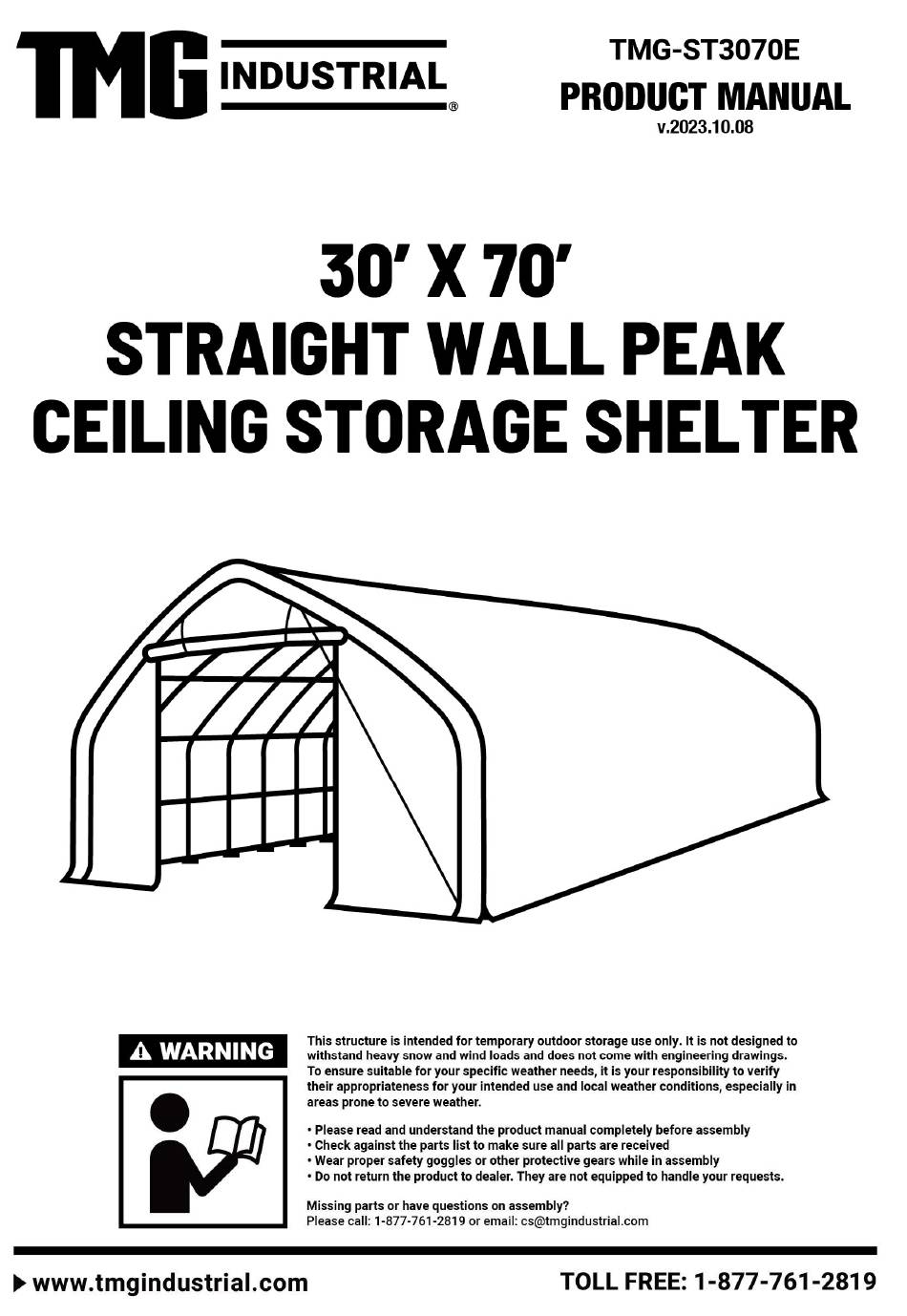

  • Page 1 WARNINGS-SAFE USAGE MAIN SPECIFICATIONS : www.tmgindustrial.com 0/21 TOLL FREE:1-877-761-2819...

  • Page 2: Main Specifications

    MAIN SPECIFICATIONS : Assembly size : W9.14 x L21 x H4.8 (m) / x H4.8 (m) / 29.99 x 68.9 x 15.75 (ft)  Shoulder height : 2 m / 6.56 ft  Front and back roll up door : 4 x 3.89 (m) / 13.1 Front and back roll up door : 4 x 3.89 (m) / 13.12 x 12.76 (ft) ...
  • Page 3 The layout of foundation(two) The layout of foundation(two).  Note: the ground anchor is installed the ground anchor is installed on the cement block. Baseplate layout.  www.tmgindustrial.com www.tmgindustrial.com 2/21 TOLL FREE:1 TOLL FREE:1-877-761-2819...

  • Page 4: Prior To Assembly

    PRIOR TO ASSEMBLY Please read the instructions carefully before installation. It is important to follow your local safety regulations and industry standards during installation. Regulations may include but are not limited to : Safety helmets, protective eyewear, and clothing  Safety harnesses for all elevated workers ...
  • Page 5 TMG-ST3070E PART LIST PARTS GRAPHICAL DESCRIPTION LENGTH CODE Peak arch tube 58xL1712mm φ58xL1712mm Upper rafter tube 58xL2870mm φ58xL2870mm (middle truss) Upper rafter tube 58xL2870mm φ58xL2870mm (front and rear truss) Shoulder tube 58xL1757mm φ58xL1757mm (middle truss) Shoulder tube 58xL1757mm φ58xL1757mm (front and rear truss)
  • Page 6 Middle truss baseplate W200xL200mm W200xL200mm Ratchet Door frame lower tube 58xL1970mm φ58xL1970mm (front and rear truss) Door frame upper tube 58xL1982mm φ58xL1982mm (front and rear truss)) Door frame horizontal tube 42xL2507mm φ42xL2507mm (front and rear truss) Ceiling cross bar 42xL2810mm φ42xL2810mm Two wheel rope pulley W35xL130mm...
  • Page 7 Hex bolt M10x50mm M10x50mm Nylon rope φ8x15m Water plug φ32 W15632 15632xL21640m Top cover Front and rear cover panel W5020 5020xL9098mm Braided rope φ8x180m bundle Tension band (for #7A and front and rear W38xL800mm W38xL800mm arches) Scratch resistant tape L10mm www.tmgindustrial.com www.tmgindustrial.com 6/21...
  • Page 8 STEP 1 : BASEPLATE POSITIONING AND OSITIONING AND INSTALLATION. Installation diagram of expansion bolt. Installation diagram of expansion bolt.  PART www.tmgindustrial.com www.tmgindustrial.com 7/21 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 9 STEP 2 : INSTALLATION OF FRONT AND REAR 2 STEP 2 : INSTALLATION OF FRONT AND REAR 2 GROUP TRUSSES. PART 12x2 www.tmgindustrial.com www.tmgindustrial.com 8/21 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 10 STEP 3 : INSTALLATION OF MIDDLE 13 GROUP TRUSS. PART 1x13 2x13 2x13 2x13 1x13 12x13 12x13 2x13 www.tmgindustrial.com www.tmgindustrial.com 9/21 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 11 STEP 4 : WRAP (#26) AROUND THE SHARP POINTS OF THE JOINT TO AVOID FRICTION BETWEEN THE FABRIC AND THE INTERFACE. PART www.tmgindustrial.com 10/21 TOLL FREE:1-877-761-2819...
  • Page 12 STEP 5 : PUT UP THE FRONT (1 ) TRUSS. ) TRUSS. Use of a crane or forklift is recommended, otherwise a team can use ropes to lift the trusses, but you have to Use of a crane or forklift is recommended, otherwise a team can use ropes to lift the trusses, but you have to Use of a crane or forklift is recommended, otherwise a team can use ropes to lift the trusses, but you have to ...
  • Page 13 STEP 6 : PUT UP THE REST TRUSSES. Refer to Step 5 to put up the rest trusses, connect all 9 roof purlins (#5) with bolt (#17) and secure all bolts to put up the rest trusses, connect all 9 roof purlins (#5) with bolt (#17) and secure all bolts to put up the rest trusses, connect all 9 roof purlins (#5) with bolt (#17) and secure all bolts ...
  • Page 14 STEP 7 : INSTALL THE DIAGONAL BRACING BARS (#13) DIAGONAL BRACING BARS (#13) Connect diagonal bracing bar (#13) diagonal bracing bar (#13) on the first and last span between the shoulder tube and sidewall tube on the first and last span between the shoulder tube and sidewall tube ...
  • Page 15 STEP 8 : INSTALL THE REMAINING PARTS ON THE FRONT AND REAR TRUSS. THE REMAINING PARTS ON THE FRONT AND REAR TRUSS. PART PART PART www.tmgindustrial.com www.tmgindustrial.com 14/21 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 16 STEP 9 : INSTALL FRONT AND REAR COVER PANEL. The door cover must be zipped. Use rope (#24) to lift up the front and rear cover (#23) from the center  grommet and tie it firm to the truss tube and spread toward both sides through each grommet along the tube. Insert the dropping tube (#15) into the bottom groove pocket on the door cover.
  • Page 17 PART www.tmgindustrial.com www.tmgindustrial.com 16/21 TOLL FREE:1 TOLL FREE:1-877-761-2819...
  • Page 18 STEP 10 : INSTALL THE TOP COVER (#22). STEP 10 : INSTALL THE TOP COVER (#22). DO NOT INSTALL THE COVER DURING WINDY WEATHER DO NOT INSTALL THE COVER DURING WINDY WEATHER ! Unpack the top cover and place it along one of the long sides of the structure. Unpack the top cover and place it along one of the long sides of the structure.
  • Page 19 STEP 11 : STRETCH AND TIGHTEN TOP COVER. The roof cover must be stretched and tied to the front and rear truss by rope going through the flap grommets  on the cover. Start from the top center and go toward both side on each end. Add or cut the rope as needed. Pull and stretch the cover enough only to take wrinkles out.
  • Page 20 STEP 12 : TENSION THE COVER ON THE STRUCTURE FROM BOTH SIDES. TENSION THE COVER ON THE STRUCTURE FROM BOTH SIDES. Insert tension tubes (#14) slowly into the bottom groove pocket on both long sides. Add the slowly into the bottom groove pocket on both long sides. Add the slowly into the bottom groove pocket on both long sides.
  • Page 21 STEP 13 : INSTALL RATCHET STRAPS. Stretch and adjust the cover from left and right, back and forth, to make sure it is square and centered. Cut the  groove pocket where it aligns with ratchet (#7A), and use tie down straps (#25) to pull tension tube (#14) toward the ratchet and tie it firmly there.

  • Page 22: After The Installation

    AFTER THE INSTALLATION Walk around and inspect the shelter periodically to make sure all components Walk around and inspect the shelter periodically to make sure all components are still firmly secured and the are still firmly secured and the whole shelter is well supported. Check all bolts and nuts as well as all connection points to make sure they are whole shelter is well supported.
