TMG -ST3040V Product Manual

30" x 40" pvc fabric ceiling storage shelter
Hide thumbs

Advertisement

Table of Contents

▶ www.tmgindustrial.com
0/21
TOLL FREE: 1-877-761-2819

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMG-ST3040V and is the answer not in the manual?

Questions and answers

Related Manuals for TMG TMG-ST3040V

Summary of Contents for TMG TMG-ST3040V

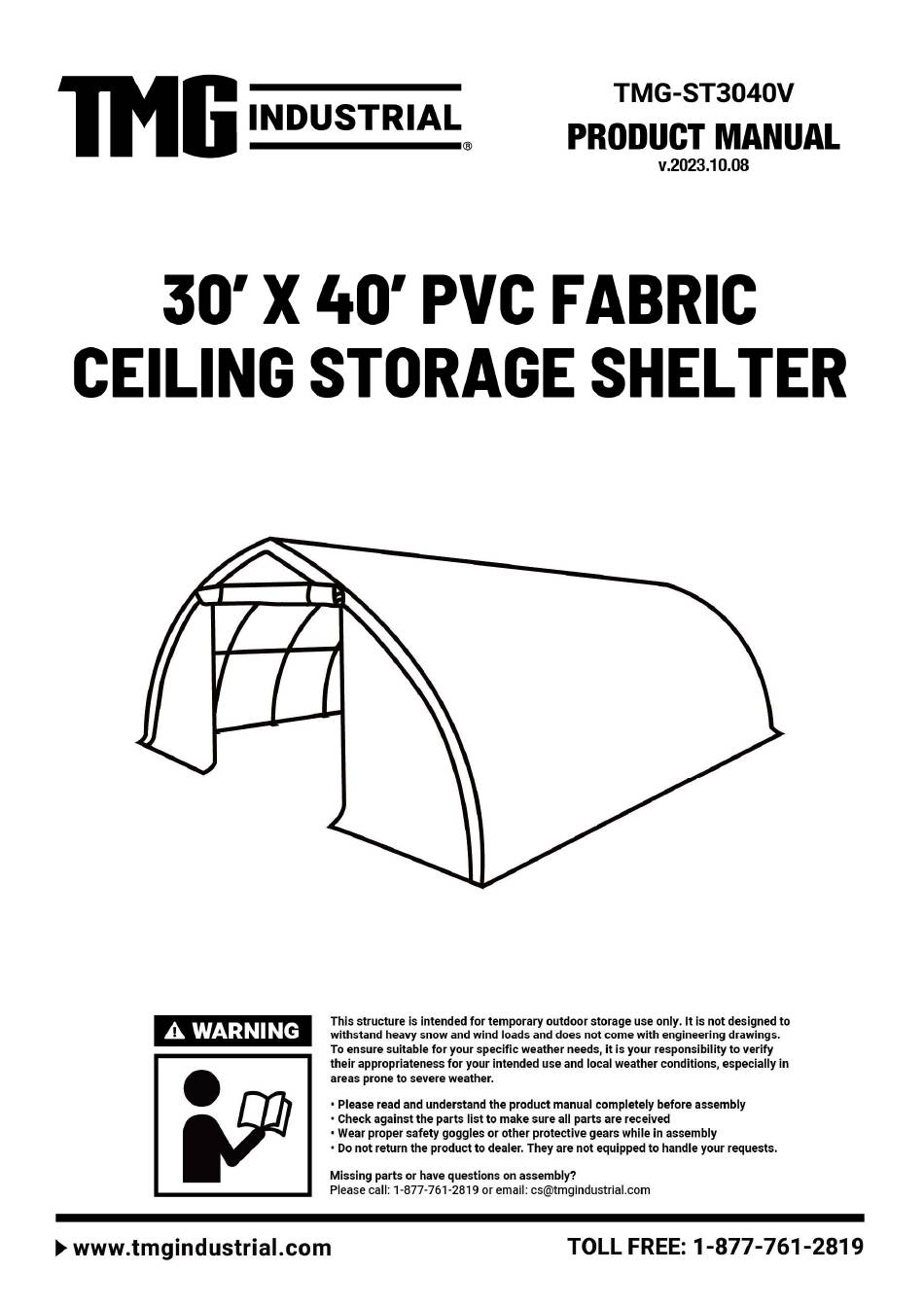

  • Page 1 ▶ www.tmgindustrial.com 0/21 TOLL FREE: 1-877-761-2819...

  • Page 2: Main Specifications

    MAIN SPECIFICATIONS : Overall assembled size : W9.1 W9.15 x L12 x H4.57 (m) / 30 x 39.4 x 15(ft)  Front and back roll up door : W3.65 : W3.65 x H3.3 (m) / 12 x 10.8(ft)  CONCRETE FOUNDATION SIZE SEE BELOW FIGURE FOUNDATION SIZE SEE BELOW FIGURE.
  • Page 3 The layout of foundation(two) The layout of foundation(two).  Note: the ground anchor is installed on the the ground anchor is installed on the cement block. ▶ www.tmgindustrial.com www.tmgindustrial.com 2/21 TOLL FREE: 1 TOLL FREE: 1-877-761-2819...

  • Page 4: Prior To Assembly

    Baseplate layout.  PRIOR TO ASSEMBLY Please read the instructions carefully before installation. It is important to follow your local safety regulations and industry standards during installation. Regulations may include but are not limited to: Safety helmets, protective eyewear, and clothing ...
  • Page 5 FRAME STRUCTURE DIAGRAM. ▶ www.tmgindustrial.com 4/21 TOLL FREE: 1-877-761-2819...
  • Page 6 TMG-ST3040V PART LIST PARTS GRAPHICAL DESCRIPTION LENGTH LENGTH CODE Peak arch tube L2333mm Upper rafter tube L2886mm (middle truss) Upper rafter tube L2886mm (front and rear trusses) Lower rafter tube L2838mm (middle truss) Lower rafter tube L2838mm (front and rear trusses)
  • Page 7 Rope pulley L130mm L130mm Rope pulley L85mm L85mm Bottom tension bar L2560mm L2560mm (front and rear cover) Diagonal bracing bar L2070mm L2070mm (for 1st and last span) Tube clamp φ φ58mm Top cover tension tube L1993mm L1993mm 12+2 (for both bottom sides) L500 500mm L1993mm...

  • Page 8: Installation Steps

    INSTALLATION STEPS STEP 1 : REVIEW THE WHOLE STRUCTURE AND CHOOSE THE PROPER INSTALLATION SITE STEP 1 : REVIEW THE WHOLE STRUCTURE AND CHOOSE THE PROPER INSTALLATION SITE. Mark the ground in the final building location with a line showing the positions of base plates, front doors. All the final building location with a line showing the positions of base plates, front doors.
  • Page 9 STEP 2 : ASSEMBLE ALL TRUSSES. The building includes 9 trusses : (1) front truss, (1)rear truss, and ( trusses : (1) front truss, (1)rear truss, and (7) middle trusses. ) middle trusses.  Install front and rear trusses.  PART PART PART...
  • Page 10 Install (7) middle trusses.  PART PART PART ▶ www.tmgindustrial.com www.tmgindustrial.com 9/21 TOLL FREE: 1 TOLL FREE: 1-877-761-2819...
  • Page 11 Lay down all (9) trusses on the ground when the assembly is all completed and before moving to next step,  and then wrap (#26) around the sharp points of the joint to avoid friction between the fabric and the interface, resulting in fabric damage.
  • Page 12 STEP 3: PUT UP THE FRONT TRUSS. PART PART ▶ www.tmgindustrial.com www.tmgindustrial.com 11/21 TOLL FREE: 1 TOLL FREE: 1-877-761-2819...
  • Page 13 STEP 4 : PUT UP THE REST TRUSSES. Refer to Step 3 to put up the rest trusses, connect all Refer to Step 3 to put up the rest trusses, connect all purlins (#4) with bolt (#17) and secure all bolts firmly on ) with bolt (#17) and secure all bolts firmly on ...
  • Page 14 STEP 5 : INSTALL THE DIAGONAL BRACING BARS (#13). STEP 5 : INSTALL THE DIAGONAL BRACING BARS (#13). PART PART ▶ www.tmgindustrial.com www.tmgindustrial.com 13/21 TOLL FREE: 1 TOLL FREE: 1-877-761-2819...
  • Page 15 STEP 6 : FRONT AND REAR TRUSSES TO COMPLETE. TO COMPLETE. Install rope pulley (#11A) on the right, on the right, (#11B) on the left as shown.  PART PART PART ▶ www.tmgindustrial.com www.tmgindustrial.com 14/21 TOLL FREE: 1 TOLL FREE: 1-877-761-2819...
  • Page 16 STEP 7 : INSTALL FRONT AND REAR COVER PANEL. The door cover must be zipped. Use rope (#24) to lift up the front cover (#23) from the center grommet and tie  it firm to the truss tube and spread toward both sides through each grommet along the tube. Insert the dropping tube (#15) into the bottom groove pocket on the door cover.
  • Page 17 (view from outside) PART PART PART ▶ www.tmgindustrial.com www.tmgindustrial.com 16/21 TOLL FREE: 1 TOLL FREE: 1-877-761-2819...
  • Page 18 STEP 8 : INSTALL THE TOP COVER. DO NOT INSTALL THE COVER DURING WINDY WEATHER! DO NOT INSTALL THE COVER DURING WINDY WEATHER! Unpack the top cover and place it along one of the long sides of the structure. Unpack the top cover and place it along one of the long sides of the structure. ...
  • Page 19 STEP 9 : STRETCH AND TIGHTEN TOP COVER. The roof cover must be stretched and tied to the front and rear truss by rope going through the flap grommets  on the cover. Start from the top center and go toward both side on each end. Add or cut the rope as needed. Pull and stretch the cover enough only to take wrinkles out.
  • Page 20 STEP 10 : TENSION THE COVER ON THE STRUCTURE FROM BOTH SIDES. STEP 10 : TENSION THE COVER ON THE STRUCTURE FROM BOTH SIDES. Insert tension tubes (#14) slowly into the slowly into the bottom groove pocket on both long sides. Add both long sides.
  • Page 21 STEP 11 : INSTALL RATCHET STRAPS. Stretch and adjust the cover from left and right, back and forth, to make sure Stretch and adjust the cover from left and right, back and forth, to make sure it is square and centered. Cut the it is square and centered.

  • Page 22: After The Installation

    AFTER THE INSTALLATION Walk around and inspect the shelter periodically to make sure all components are still firmly secured and the whole Walk around and inspect the shelter periodically to make sure all components are still firmly secured and the whole Walk around and inspect the shelter periodically to make sure all components are still firmly secured and the whole shelter is well supported.
