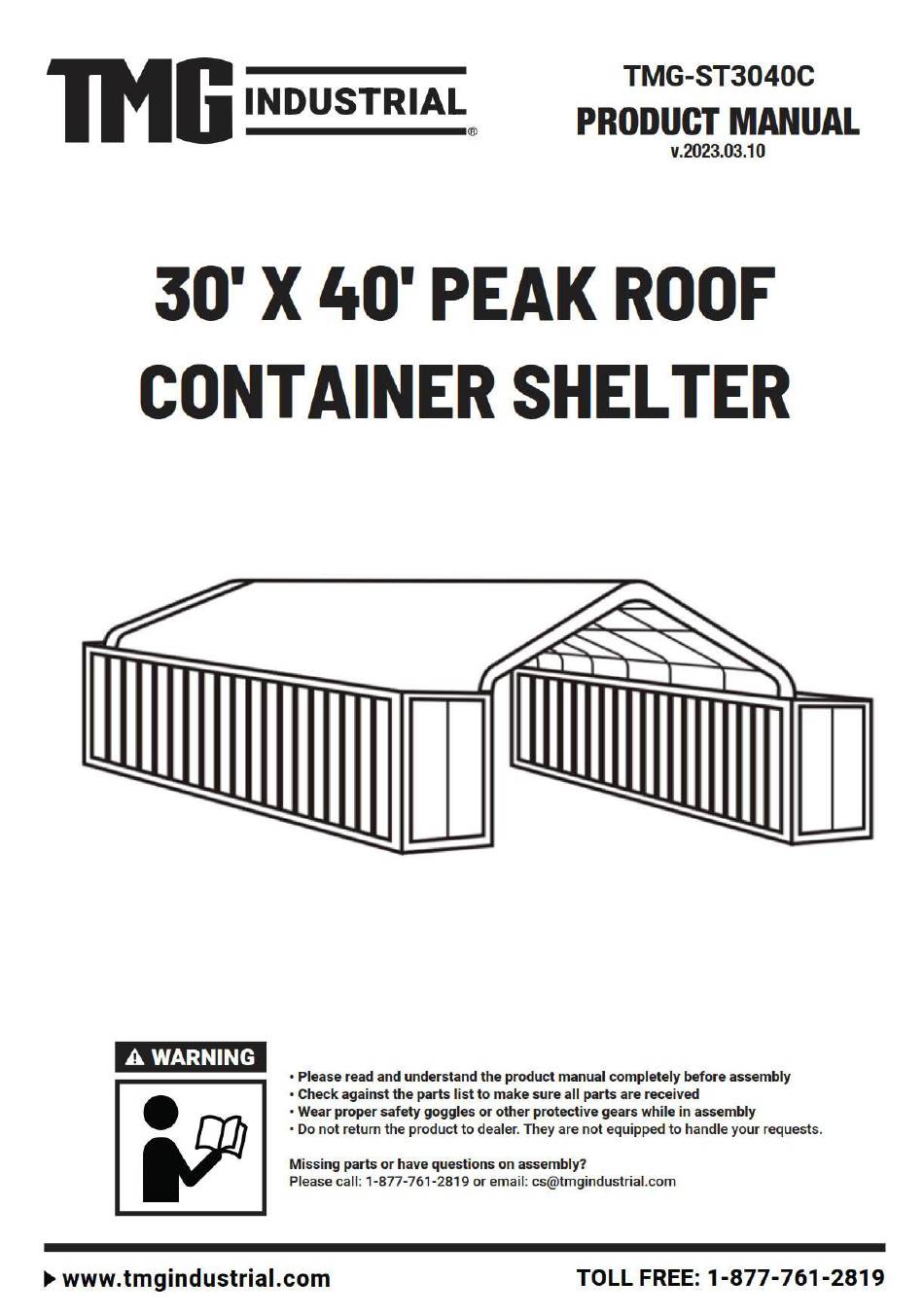

- Page 1 ► www.tmgindustrial.com 0/12 TOLL FREE:1-877-761-2819...
-
Page 2: Main Specifications
MAIN SPECIFICATIONS : Overall assembled size : W9.15 x L12 x H2.2 (m) / 30 x 39.37 x 7.22 (ft) Ridge Peak Height : 2.2 m / 7.22ft + container height PRIOR TO ASSEMBLY Please read the instructions carefully before installation. It is very important to follow your local safety regulations and industry standards during installation. - Page 3 TMG-ST3040C PART LIST PICTURE DESCRIPTION LENGTH Peak arch tube L1910mm Middle rafter tube L2160mm Shoulder tube L2168mm Shoulder tube L2168mm Middle truss baseplate W150xL200mm Left corner baseplate W150xL200mm (front and rear truss) Right corner baseplate W150xL200mm (front and rear truss)
- Page 4 Top cover tension tube L1993mm (for both bottom sides) Top cover tension tube L500mm M8x70mm Bolt M8x60mm Bolt Hex bolt M10x30mm Top cover L11664xW12610mm Braided rope φ8x60m Scratch resistant tape Water plug Φ32 ► www.tmgindustrial.com 3/12 TOLL FREE:1-877-761-2819...
- Page 5 STEP 2 : BASEPLATE POSIT INSTALLATION. Place the containers making sure they are parallel and the correct width apart. Make sure there is a gap of about 3 feet around the building. the center point of the round pipe of the base is the reference point, and the diagonal X and Y must be equal.
- Page 6 STEP 3 : CONNECT ALL TRUSSES. Front and rear trusses (4 trusses). PART PART ► www.tmgindustrial.com 5/12 TOLL FREE:1-877-761-2819...
- Page 7 Middle trusses (5 trusses). PART PART ► www.tmgindustrial.com 6/12 TOLL FREE:1-877-761-2819...
- Page 8 Lay down all (9) trusses on the ground when the assembly is all completed and before moving to next step, and then wrap (#15) around the sharp points of the joint to avoid friction between the fabric and the interface, resulting in fabric damage.
- Page 9 STEP 4 : PUT UP ALL TRUSSES. Install each truss on the base tube. Use hex bolt (#11) to secure the truss to the base tube firmly. We recommend to use a crane or forklift to lift the truss and have 2 to 3 people on site to work together. Please make sure it is safe and secure when installation is proceeding.
- Page 10 STEP 5 : CONNECT ALL PURLINS (#5) WITH BOLT (#11A). TENSION CABLE INSTALLATION . PART PART ► www.tmgindustrial.com 9/12 TOLL FREE:1-877-761-2819...
- Page 11 OVERALL STRUCTURAL INSPECTION : Check all components and trusses to ensure the entire structure is rectangular as specified in. All trusses must be 90 degrees straight up from the container. Secure and tighten all bolts and nuts on this step. But do not over tie! Otherwise you might damage the tubes or components.
- Page 12 After the cover is installed on the roof, then insert tension tubes (#9,#9A) in the groove on both sides of the cover bottom, Add the water plug (#16) on the 1st tube (#9) to protect the fabric while the tube is going through and add the water plug on the last tube also to keep water away.
-
Page 13: After Installation
AFTER INSTALLATION. Walk around and inspect the building periodically to make sure the parts are firmly fixed and the whole building is well supported. Check all bolts and hardware connectors to make sure they are in place and tightened. Check the base plates, adjust the ropes if necessary and clean the cover regularly.
