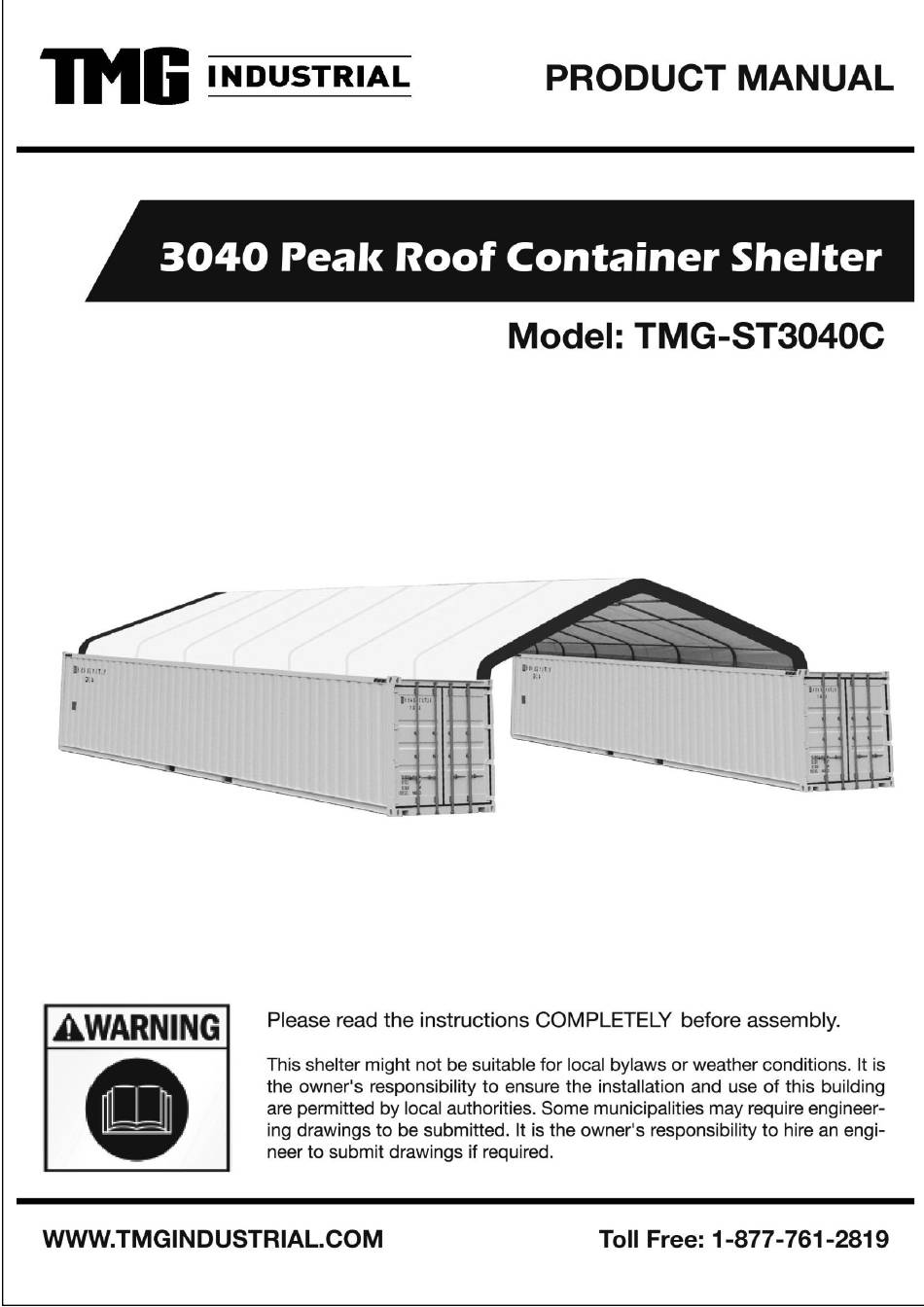

Summary of Contents for TMG 3040
-
Page 2: Main Specifications

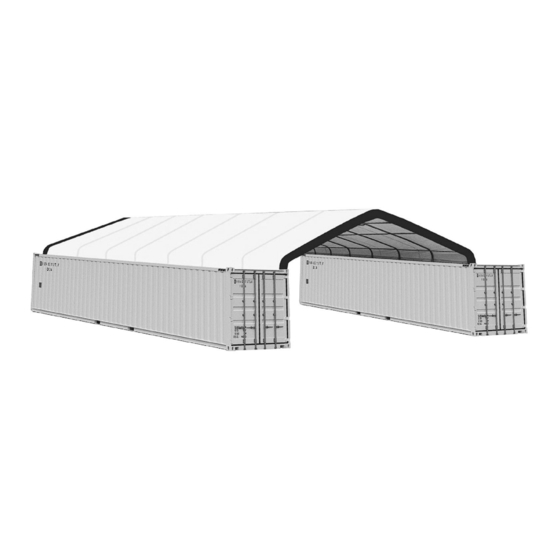

Main Specifications : Overall assembled size : W9.15 x L12 x H2.2 (m) / 30 x 40 x 7.2(ft) Ridge Peak Height : 2 m / 6.5ft + container height Prior to assembly Please read the instructions carefully before installation. It is very important to follow your local safety regulations and industry standards during installation. - Page 3 Be aware of the surrounding area. Do not set up the building near snowdrifts, open flames or exposed electrical wires. Do not keep heat sources near the fabric cover. Keep the building surroundings clear at all times. TMG-ST3040C Part List Picture Description...
- Page 4 Bolt M8*70 Hex bolt M8x80mm Hex bolt M10x30mm Top cover Braided rope Step 2 : Place the containers making sure they are parallel and the correct width apart. Make sure there is a gap of about 1 meter around the building. (refer to Picture 1 as below) Picture 1 Page 3 of...
- Page 5 Step 3 : Assemble base tubes 1. Ensure the site is level and firm. place the containers 8980mm apart 2. Secure base plate and “L” shape plate (#6、#7) to the container top. Bolt in M8*80 (#11) connect evenly adjoining spigots at each side (L1-L8; R1-R8) 3.
- Page 6 Step 4 : Connect all trusses Layout all truss components on the ground in the correct configuration before bolting them together. There are total 9 trusses to build, use the hex bolt (#10) to connect all tubes together. Then use (#12) bolts to link (#5) to (#2) . (refer to Picture 3 as below) Components are : ...
- Page 7 Picture 4 Install purl in tubes (#4) and use locking bolts (#9). Add the water plugs on both ends of the base tubes. (refer to picture 6 as below) Components are : • (40) Purl in tube (#4) • (45) Locking bolt (#9) •...
- Page 8 Overall structural inspection : check all components and trusses to ensure the entire structure is rectangular as specified in ( picture 1). All trusses must be 90 degrees straight up from the container. Secure and tighten all bolts and nuts on this step. But do not over tie! Otherwise you might damage the tubes or components.
-
Page 9: After Installation
Picture 7 After Installation Walk around and inspect the building periodically to make sure the parts are firmly fixed and the whole building is well supported. Check all bolts and hardware connectors to make sure they are in place and tightened. Check the base plates, adjust the ropes if necessary and clean the cover regularly.
