Backyard Products GABLE Assembly Manual

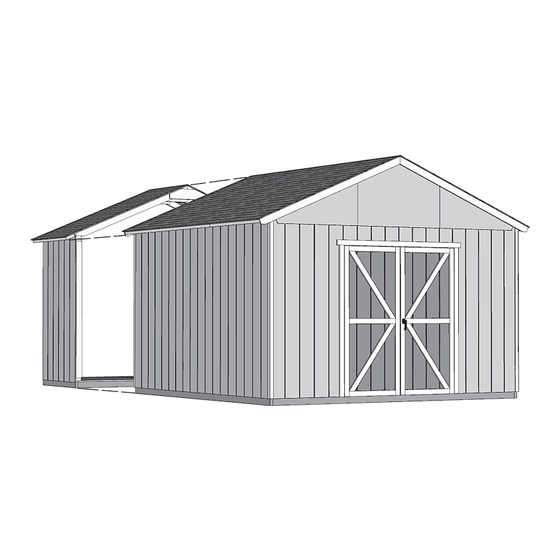

12' x 12' (365,8 x 365,8 cm)
Hide thumbs Also See for GABLE:

Advertisement

Table of Contents

STOP!
STOP!
DO NOT RETURN TO STORE.
For immediate help with assembly or product information
call our toll free number:
customerservice@backyardproductsllc.com
Our staff is ready to provide assistance
April through October M-F 8:00 AM to 7:00 PM EST
Saturday 8:30 AM to 4:30 PM EST
November through March M - F 8:00 AM to 5:00 PM EST
Call Us First!
1-888-827-9056
or email:
16490

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GABLE and is the answer not in the manual?

Questions and answers

Related Manuals for Backyard Products GABLE

Summary of Contents for Backyard Products GABLE

  • Page 1 16490 STOP! STOP! Call Us First! DO NOT RETURN TO STORE. For immediate help with assembly or product information call our toll free number: 1-888-827-9056 or email: customerservice@backyardproductsllc.com Our staff is ready to provide assistance April through October M-F 8:00 AM to 7:00 PM EST Saturday 8:30 AM to 4:30 PM EST November through March M - F 8:00 AM to 5:00 PM EST...
  • Page 2 (This page intentionally left blank.)

  • Page 3: Assembly Manual

    16490 ASSEMBLY MANUAL GABLE 12' x 12' (365,8 x 365,8 cm) BUILDING SIZE ACTUAL FLOOR SIZE 12' x 12' (365,8 x 365,8 cm) 12' x 12' (365,8 x 365,8 cm) BASE MODEL +1: 12' x 4' Extender 12' x 16' (365,8 x 487,7 cm)
  • Page 4 TOOLS Optional ❑ Phillips ❑ ❑ Utility Knife Screwdriver Nail Pouch ❑ Shingle Blades ❑ ❑ Tin Snips ❑ ❑ Caulk Gun (for drip edge) ❑ #2 Philips Drive Bit ❑ Chalk Line ❑ Hammer ❑ Paint Tools ❑ Level ❑...

  • Page 5: Additional Materials

    ADDITIONAL MATERIALS FOUNDATION OR FLOOR MATERIALS REINFORCED WOOD FLOOR FRAME (OPTIONAL) (shown below as shaded). Below is a list of additional materials (not included): 12x12' 2 x 4 x 12' (5,1 x 10,2 x 304,8 cm) Treated Lumber 12x16' 2 x 4 x 12' (5,1 x 10,2 x 304,8 cm) Treated Lumber 12x20' 2 x 4 x 12' (5,1 x 10,2 x 304,8 cm) Treated Lumber 12x24'...

  • Page 6: Optional Materials

    ADDITIONAL MATERIALS COMPLETING YOUR SHED You will need these additional materials: 12x12' 12x16' 12x20' 12x24' 12x16' 12x20' 12x24' 12x12' Paint for trim/Quart 3-TAB SHINGLES (Bundles)..Use 100% acrylic latex exterior paint. PAINT FOR SIDING (Gallons)..Caulk Tubes ... Use 100% acrylic latex exterior paint. Use acrylic paintable (2) coats recommended.
  • Page 7 2 x 3 ....1-1/2" x 2-1/2" (3,8 x 6,3 cm) 1 x 3 ....3/4" x 2-1/2" (3,8 x 6,3 cm) 12x12' GABLE 12' x 12' PARTS LIST Used as a gauge block for 3/4" (1,9 cm) measurement. ,1 x 10,2 x 46 cm)
  • Page 8 PANEL & DOORS PARTS LIST (1 x 121,9 x 213,4 cm) (1 x 60,6 x 213,4 cm) ROOF PANELS Roof panels are 7/16" (1,1 cm) thick. (121,9 x 243,8 cm) (121,6 x 121,9 cm) FASTENER/HARDWARE BAG (Shown Actual Size) x155 NOTE: If you are using a nail gun, nails may be used where screws are...

  • Page 9: Door Hardware

    DOOR TRIM DOOR HARDWARE (1,9 cm) NAIL BOXES (Shown Actual Size)
  • Page 10 GABLE EXTENDER KIT PARTS LIST Inventory your parts before you begin. Nominal Board Size Actual Size is stamped on some parts. 2 x 4 ....1-1/2" x 3-1/2" (3,8 x 8,9 cm) 1 x 4 ....3/4" x 3-1/2" (1,9 x 8,9 cm) 2 x 3 ....1-1/2"...
  • Page 11 CONCRETE FOUNDATION If you choose to install your kit on a concrete slab refer to the diagram below. Attach the sill plates on the foundaton as shown, and continue on to page 14. Treated Sill Plate Caulk between sill plate and concrete.
  • Page 12 OPTIONAL WOOD FRAME FLOOR LEVELING OPTIONS Leveling materials are not included in this kit. Measurements to centers of 4x4's. 12" (30,5 cm) and 4x4 touch. Runners are generally 12" (30,5 cm) from FLOOR FRAME NOT INCLUDED 12" (30,5 cm) Fasteners for Frame to 4x4: (3"...
  • Page 13 LEVELING & SQUARING THE FLOOR FRAME (Not Included) LEVEL AND SQUARE FLOOR FRAME BEGIN (diagonal measurement D). 203-5/8" 12' x 12' (612,3 cm) 240" 12' x 16' (609,6 cm) 279-7/8" 12' x 20' (710,9 cm) 322" 12' x 24' (817,9 cm) First, secure at ends with one fastener.
  • Page 14 IMPORTANT! I M P O R T A N T ! NOTE: 12' x 12' Gable shown standard throughout manual to avoid over-handling of the walls. HINT: OPTIONS DOOR CENTERED DOOR OFFSET...
  • Page 15 (This page intentionally left blank.)
  • Page 16 WALL CONFIGURATION GUIDE Create your own style of shed. Choose your door location. 12' x 12' 12' x 16' HINT: 12' x 20' 12' x 24' HINT:...
  • Page 17 12' x 12' 12' x 12' V-1 12' x 12' V-2 Door is on the 12' Door is on the 12' Door is on the 12' gable wall. eave wall, eave wall, centered. extra-offset right. (build 2 walls 04) (build 2 walls 02) 12' x 16' After assembling the walls for your 12' x 16' shed, go to page 61 for wall installation.
  • Page 18 PAINT & CAULK - NOT INCLUDED - around the door trim. overlooked that must be painted: Note: Prime all un-primed exterior wood before painting. (Follow directions provided by manufacturer.) ROOF FELT - NOT INCLUDED - Flush Flush DRIP EDGE - NOT INCLUDED - under roof felt on eave side (Fig.
  • Page 19 SHINGLES - NOT INCLUDED - Familiarize yourself with a 3-Tab Shingle. Notch Notch SHINGLE NAIL PATTERN 1/2" 1" Sealing Strip 1" (1,3 cm) (2,5 cm) (2,5 cm) Half A Rain Slot Full Rain Slot NAILS BEGIN Starter row must be straight and level all the way across with lower edge of roof deck. FRONT OF SHED SHED...
  • Page 20 SHINGLES continued... Roof Deck FRONT OF SHED SHED (2,5 cm) Flush with starter row. Notch - or - Drip Edge Flush with starter row. Notch stagger each row. FRONT OF SHED SHED Bend in roof (2,5 cm) Notch Flush with rain slots. Flush with rain slots.
  • Page 21 SHINGLES continued... shown below. If shingles overlap at ridge cut to peak with a utility knife. Cut Off. Top of rain slot. or less. Using your shingle hooked blade carefully cut shingles along chalk line. FINISH...
  • Page 22 SHINGLES - RIDGE CAP BEGIN (5,1 cm) (5,1 cm) Score shingle, (5,1 cm) (5,1 cm) (5,1 cm) (5,1 cm) then snap-off angled cut. 12'x12' 12'x16' 12'x20' 12'x24' Top of slot. 30 to 32 42 to 44 51 to 53 60 to 62 Pieces Pieces Pieces...
  • Page 23 SHINGLES - RIDGE CAP continued... Continue installing ridge cap to back of roof. (10,2 cm) Cut at top of rain slot. Flush to shingles (2) Nails per side. FINISH...
  • Page 24 Center Gable Panel 3/8" NG 23 9/16"" X 33 1/2"" K 48003308044 Front / Rear Gable Panel - Right 3/8" NG 23 9/16" X 48" RIGHT FRONT GABLE K 48002309100 NO GROOVE SIDING Front / Rear Gable Panel - Left 3/8"...
  • Page 25 LIMITED CONDITIONAL WARRANTY* Backyard Storage Solutions, LLC warrants the following: Every product is warranted from defects in workmanship and manufacturing for 1 year. All accessories, hardware and metal components are warranted for 2 years. All Oriented Strand Board (OSB) is warranted for 2 years Siding and Trim is warranted for 15 years.
