S PRI NTER VAN AR B COMP RE SSOR MOUN T
SP1139 B
INSTALLATION
GUIDE
F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6
TOOLS REQUIRED
(NOT INCLUDED)
+
10MM WRENCH OR SOCKET
+
7/16" WRENCH OR SOCKET
+
5/32" ALLEN WRENCH
+
AUTO PANEL PRY TOOL
INSTALL INFO
TIME TO INSTALL THIS PRODUCT: 1 HOUR
Additional help is suggested for a few of the install
steps.
BEFORE YOU START
Please inspect the product and packaging upon
delivery to ensure there are no issues and that all
parts and hardware are accounted for.
Contact us ASAP if anything is missing at:
support@flatlinevanco.com
0 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for FVC SP1139B
Summary of Contents for FVC SP1139B
- Page 1 INSTALLATION GUIDE S PRI NTER VAN AR B COMP RE SSOR MOUN T SP1139 B TOOLS REQUIRED (NOT INCLUDED) 10MM WRENCH OR SOCKET 7/16” WRENCH OR SOCKET 5/32” ALLEN WRENCH AUTO PANEL PRY TOOL INSTALL INFO TIME TO INSTALL THIS PRODUCT: 1 HOUR Additional help is suggested for a few of the install steps.
-
Page 2: Before You Start
BEFORE YOU START All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage. -
Page 3: Package Contents

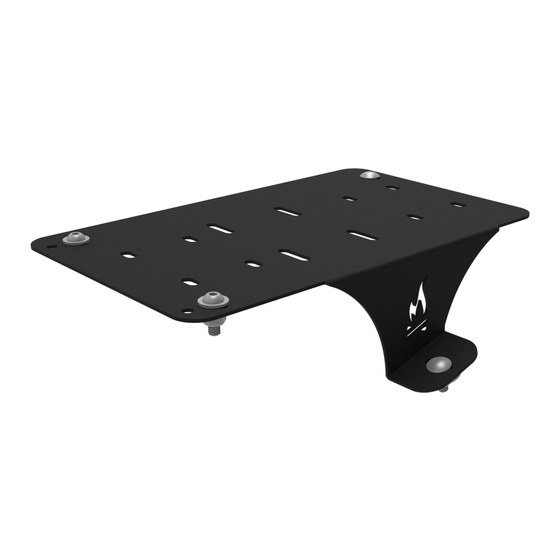

PACKAGE CONTENTS COMPRESSOR MOUNT QTY: 1 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6... - Page 4 HARDWARE 1/4-20 X 0.75 BUTTON 1/4 SCREW X 1 1/4 SCREW FLAT 1/4-20 NYLON INSERT 1/4-20 X 0.75 SQUARE HEAD HEX DRIVE OVERSIZED FLAT WASHER LOCKNUT NECK CARRIAGE BOLT SCREW WASHER QTY: 4 QTY: 2 QTY: 4 QTY: 2 QTY: 2 F L AT L I N E VA N C O •...
