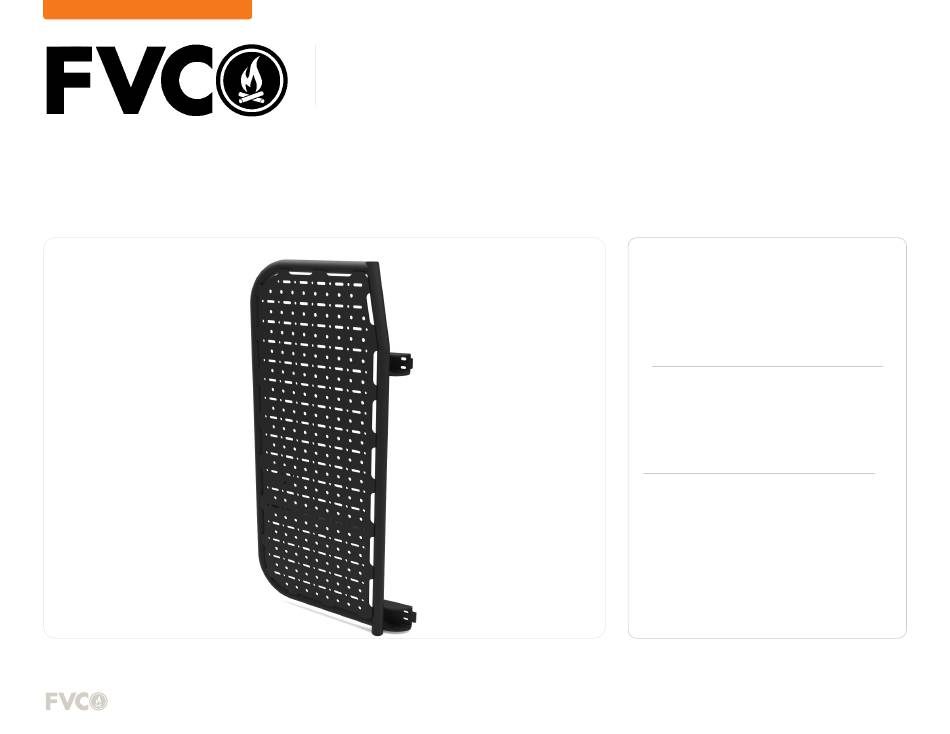

S PRI NTER VAN R E AR D OOR P L AT FORM
SP1115 B
INSTALLATION
GUIDE
F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6
TOOLS REQUIRED
(NOT INCLUDED)
+
9/16" DEEP SOCKET
+
POWER DRILL
+
9/16" SHALLOW SOCKET
+
3/16" DRILL BIT
+
7/32" ALLEN WRENCH
+
13/32" DRILL BIT
+
AUTO PANEL REMOVAL TOOL
+
RATCHET
+
MARKER
+
RATCHET EXTENSION
+
DEBURR TOOL
+
9/16" WRENCH
+
RUST PREVENTATIVE PAINT
+
7/16" SOCKET
INSTALL INFO
TIME TO INSTALL THIS PRODUCT: 1-2 HOURS
Additional help is suggested for a few of the install
steps.
BEFORE YOU START
Please inspect the product and packaging upon
delivery to ensure there are no issues and that all
parts and hardware are accounted for.
Contact us ASAP if anything is missing at:
support@flatlinevanco.com
0 1
