Summary of Contents for FVC Sprinter Rear Step

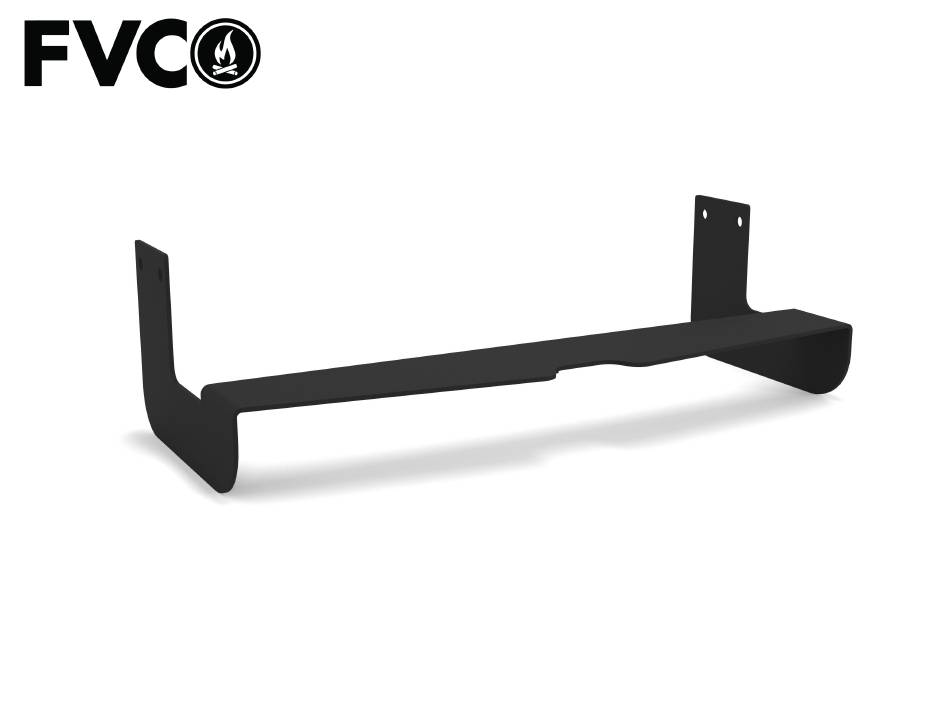

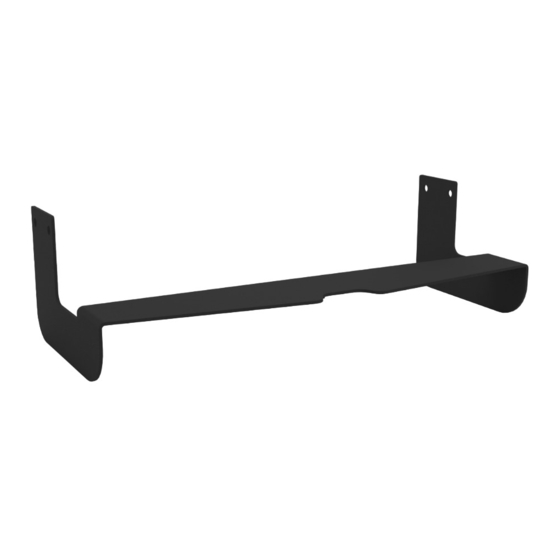

- Page 1 Installation Guide Sprinter Rear Step SP1101B FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 2 All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing flatline van co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage.
- Page 3 THANK YOU! ARE YOU EXCITED ABOUT YOUR NEW REAR STEP? HERE ARE A FEW THINGS TO DO TOOLS BEFORE BEGINNING THE INSTALLATION PROCESS-- • PLEASE INSPECT THE PRODUCT TO ENSURE THERE WAS NO DAMAGE INCURRED DURING SHIPPING. • IF THERE IS DAMAGE TO REPORT, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT AS SOON AS POSSIBLE.
- Page 4 PACKAGE CONTENTS REAR STEP QTY-1 INSTALLATION GUIDE STICKER PACK QTY-1 QTY-1 FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 5 LET’S GET STARTED! FIGURE 1 IF YOU DO NOT HAVE THE FACTORY TOW PACKAGE WITH STEP, PROCEED TO NEXT PAGE. BEGIN BY REMOVING THE FACTORY STEP. THERE ARE THREE (3) BOLTS TO REMOVE, ALL REQUIRING A 16MM BOX WRENCH OR SOCKET. SEE FIGURE 1 AND FIGURE 2 FOR BOLT LOCATIONS.
- Page 6 NEXT, REMOVE THE TWO (2) LOWER BOLTS THAT ATTACH THE TOW HITCH ON BOTH SIDES OF THE FRAME. THESE BOLTS REQUIRE AN 18MM BOX WRNECH OR SOCKET, AND THEY SHOULD BE VERY TIGHT WHICH MAY REQUIRE THE AFOREMENTIONED BREAKER BAR. SEE FIGURE 3 FOR DETAIL. NOW SLIDE THE REAR STEP INTO PLACE (THIS IS WHERE A SECOND SET OF FIGURE 3 HANDS COMES IN HANDY) AND REINSERT THE BOLTS BACK INTO PLACE.
- Page 7 CUSTOMER SUPPORT If you are having any issues with your product, please reach out, and we will make it right. FVC is a company of van and outdoor enthusiasts that design and use our own products, so we want you to be as stoked on your new parts as we are! @flatlinevanco...
